Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement .

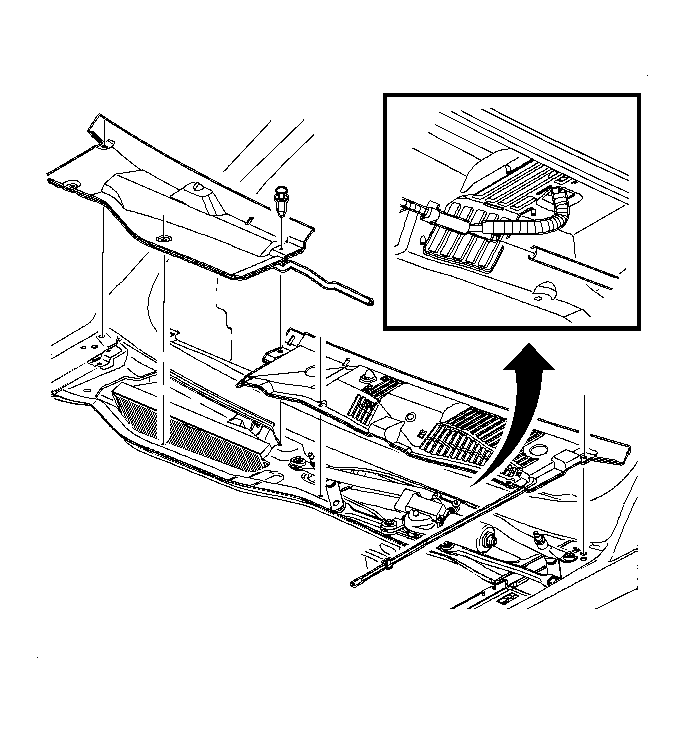

    2. Fig 1: View Of Air Inlet Grille Panel
    GM932420Courtesy of GENERAL MOTORS CORP.
  2. Separate front washer nozzle hose from the front washer solvent container hose that runs along the upper motor compartment rail.
  3. Remove the front washer nozzle hose.
