Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

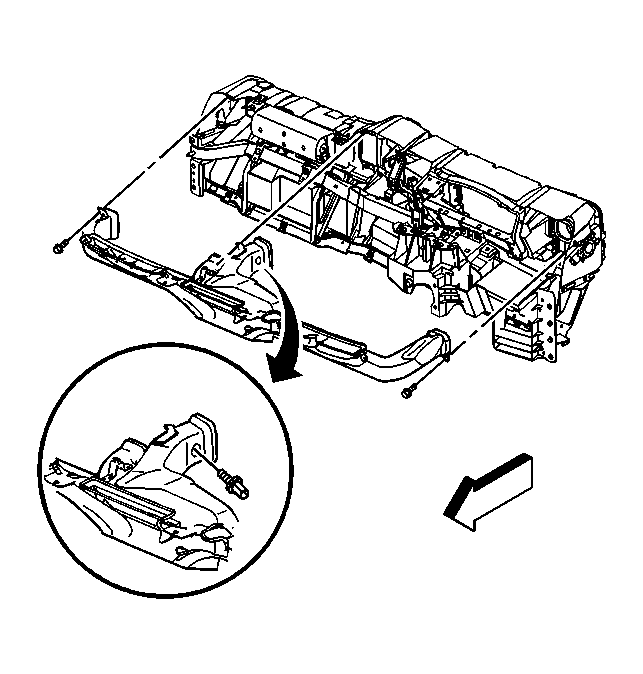

    Fig 1: View of Upper Air Duct
    GM626331Courtesy of GENERAL MOTORS CORP.
  1. Install the upper duct air temperature sensor to the air duct.
  2. Connect the electrical connector to the upper duct air temperature sensor.
  3. Install the radio. Refer to RADIO REPLACEMENT .
