Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer hose to the vehicle.
  2. Route the washer hose pump end down alongside the right front inner fender and into the right front inner fender area.
  3. Connect the washer hose to the air inlet grille panel.
    Fig 1: Connecting Washer Hose To Air Inlet Grille Panel
    G01616227Courtesy of GENERAL MOTORS CORP.
  4. Connect the washer hose to the wiper arms.
    Fig 2: Connecting Washer Hose To Wiper Arms
    G01616228Courtesy of GENERAL MOTORS CORP.
  5. Raise the vehicle.
  6. Connect the Washer hose to the washer pump.
  7. Install the right front fender liner. Refer to FRONT FENDER LINER REPLACEMENT .
  8. Close the hood.

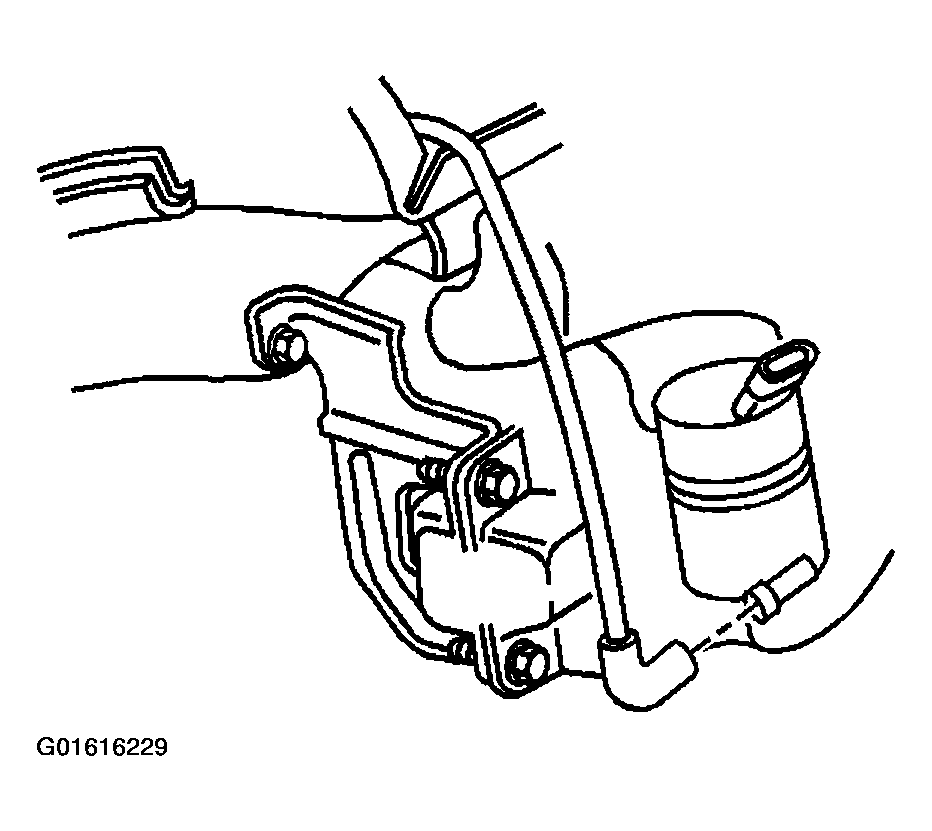

    Fig 3: Connecting Washer Hose To Washer Pump
    G01616229Courtesy of GENERAL MOTORS CORP.
