Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulator to the hood.

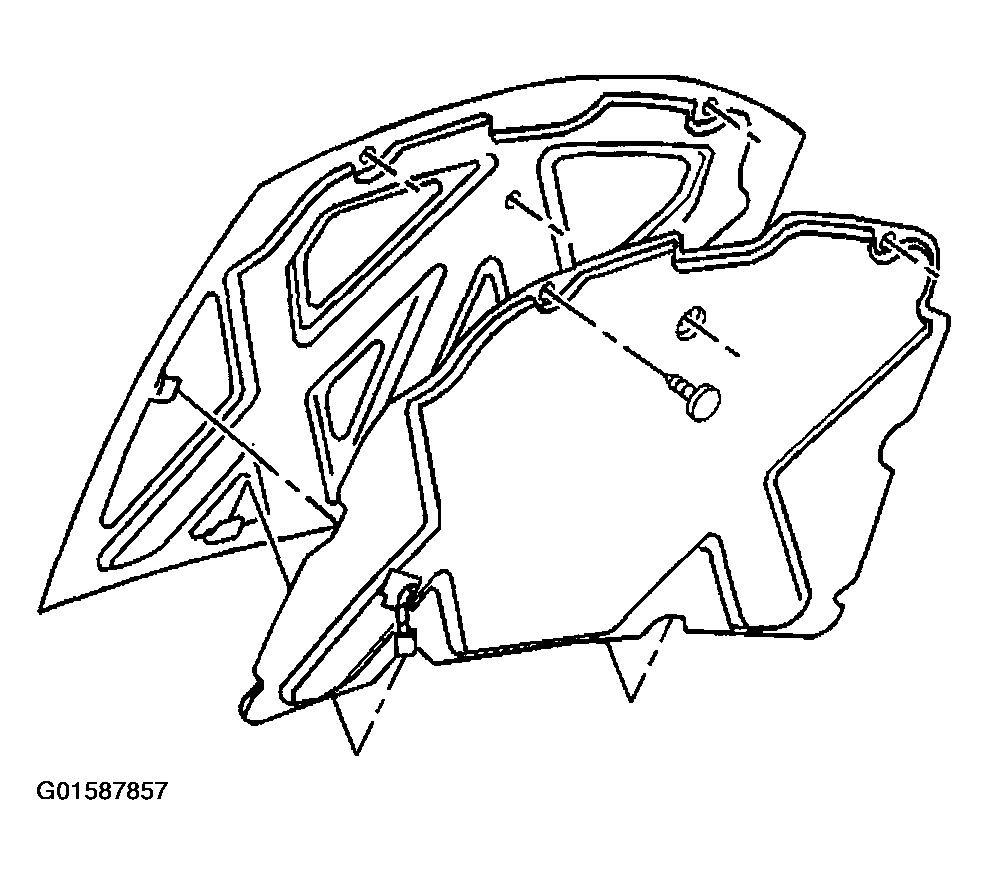

  2. Fig 1: Installing Hood Insulator To Hood
    G01587857Courtesy of GENERAL MOTORS CORP.
  3. Align the insulator retainer holes to the holes in the hood.
  4. Install the push-in retainers to the hood insulator.
  5. Close the hood.
