Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts from the front fender liner at the front bumper fascia.
  2. Remove the nut from the stud at the rear of the front fender liner.
  3. Remove the bolt from the front tab of the front fender liner at the lower engine compartment side rail.
  4. Remove the bolts from the front fender liner at the rear of the fender.
  5. Remove the front fender liner from the fender.

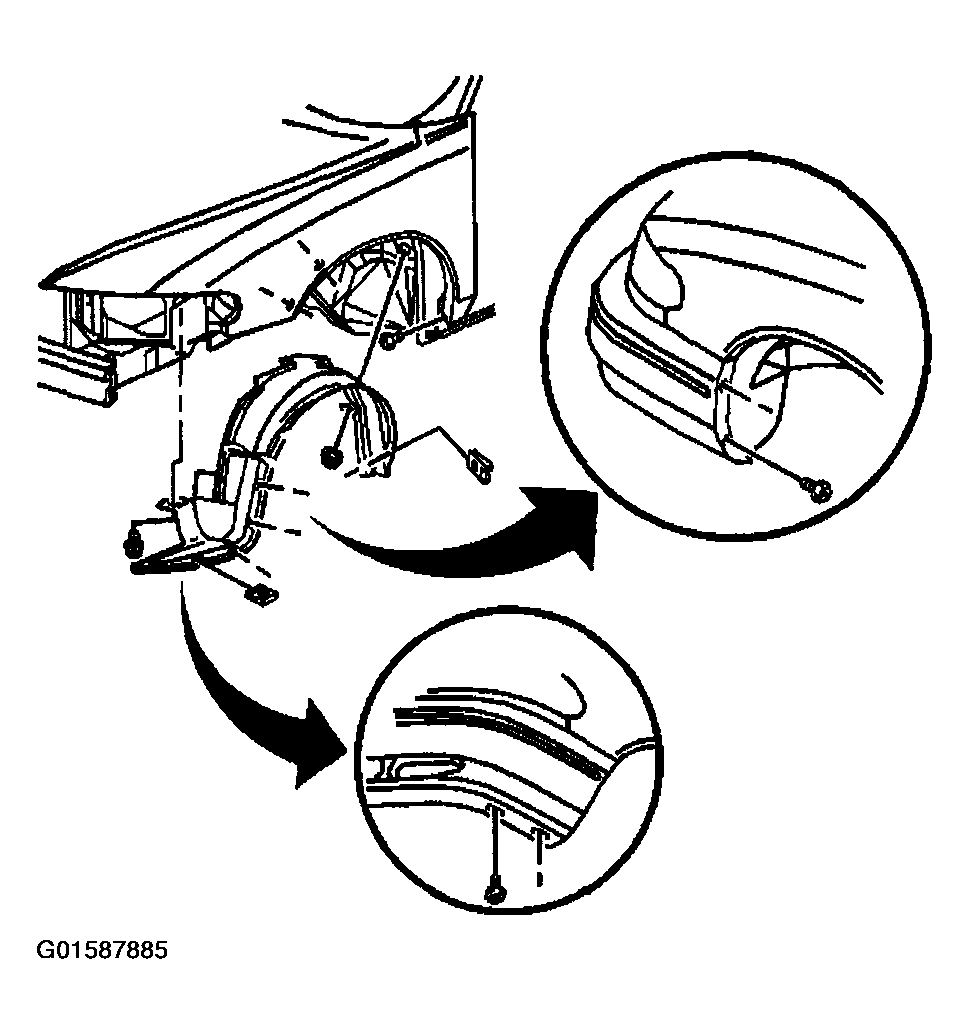

    6. Fig 1: Removing Bolts From Front Fender Liner At Front Bumper Fascia
    G01587885Courtesy of GENERAL MOTORS CORP.
