Wiper/Washer System Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: I/P Switch Assembly C1 (Buick) Connector End View
G01721348Courtesy of GENERAL MOTORS CORP.

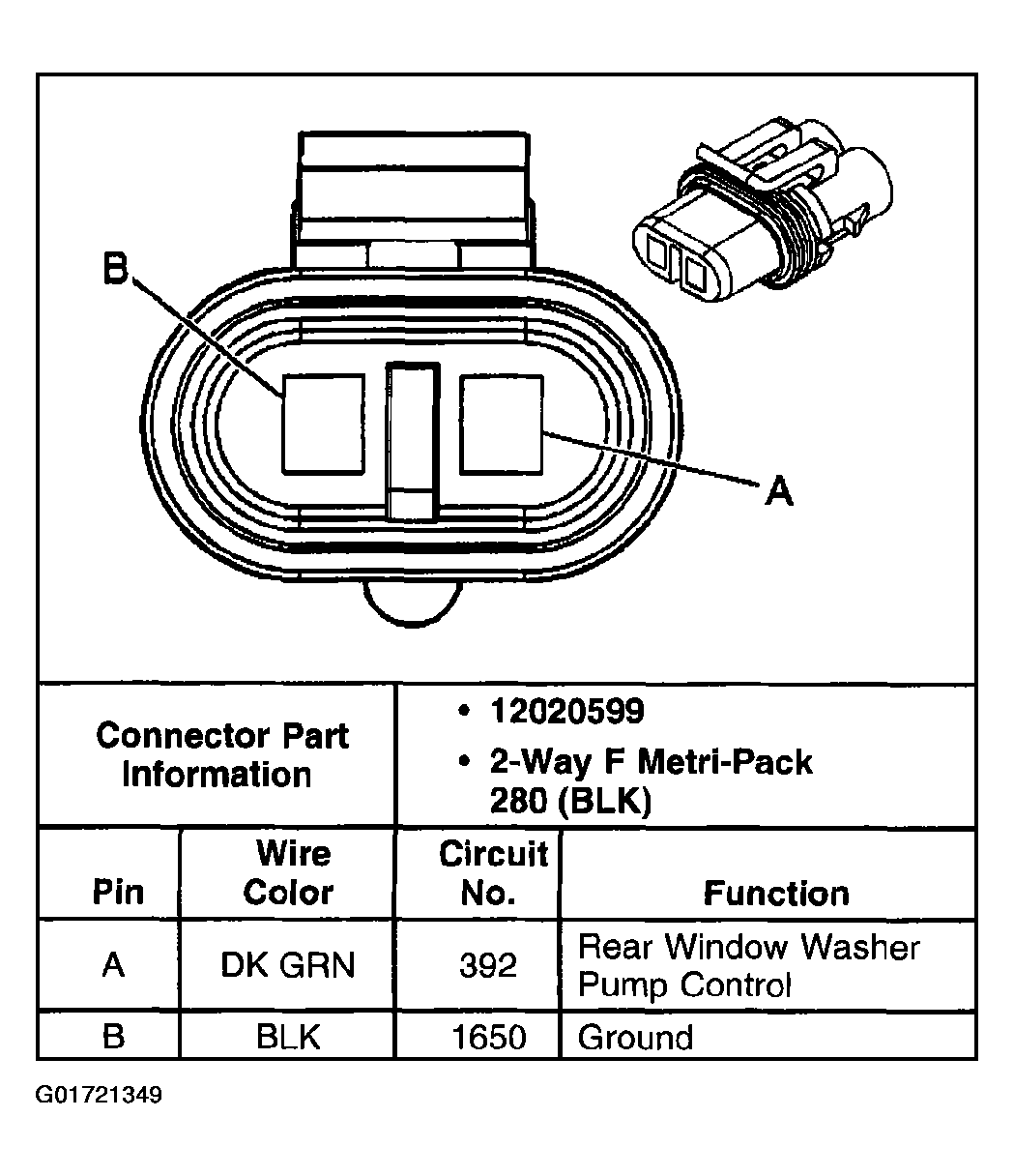

Fig 2: Rear Window Washer Fluid Pump (Buick) Connector End View
G01721349Courtesy of GENERAL MOTORS CORP.

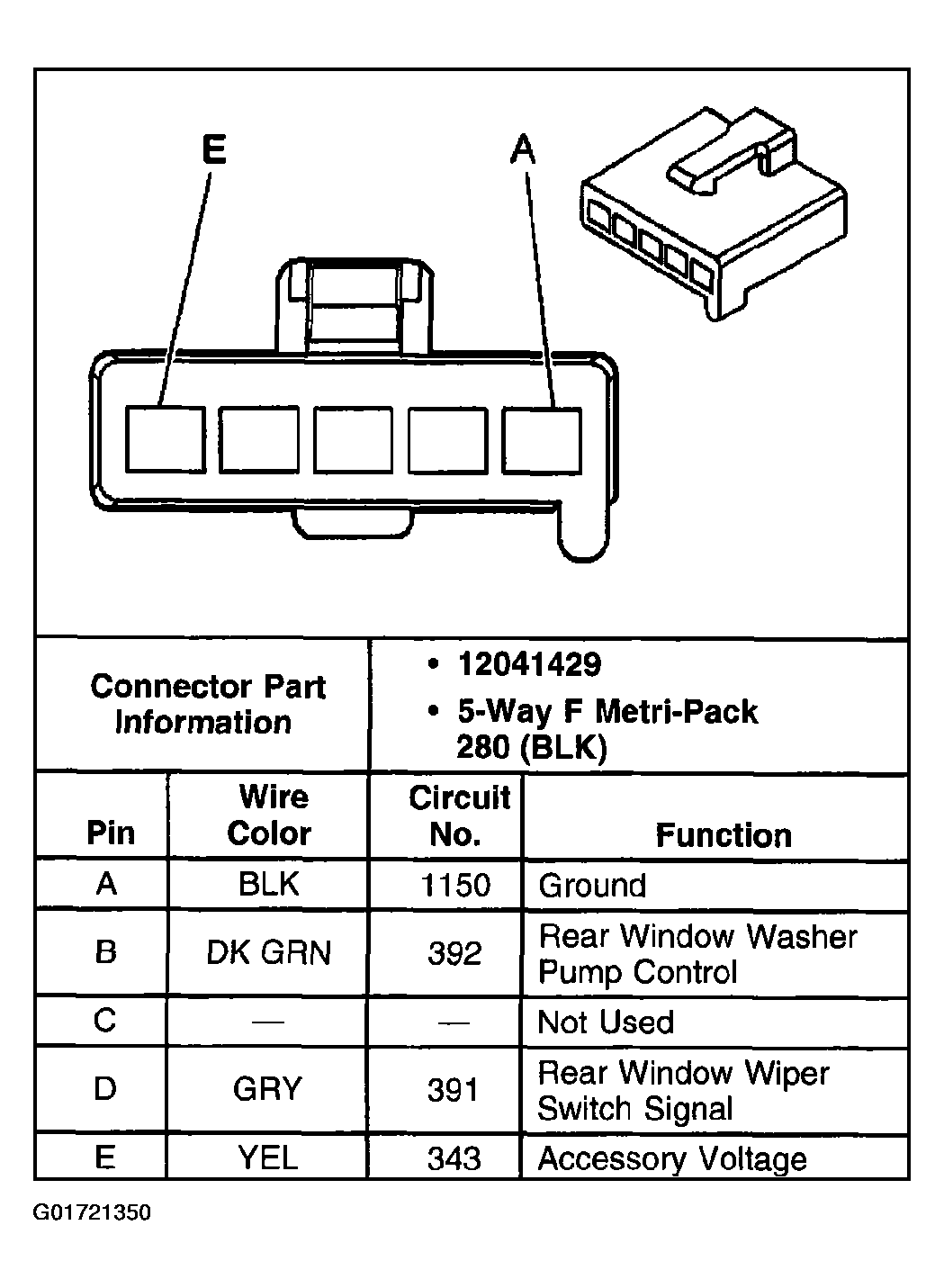

Fig 3: Rear Window Wiper Motor (Buick) Connector End View
G01721350Courtesy of GENERAL MOTORS CORP.
Fig 4: Windshield Washer Fluid Level Switch Connector End View
G01721351Courtesy of GENERAL MOTORS CORP.

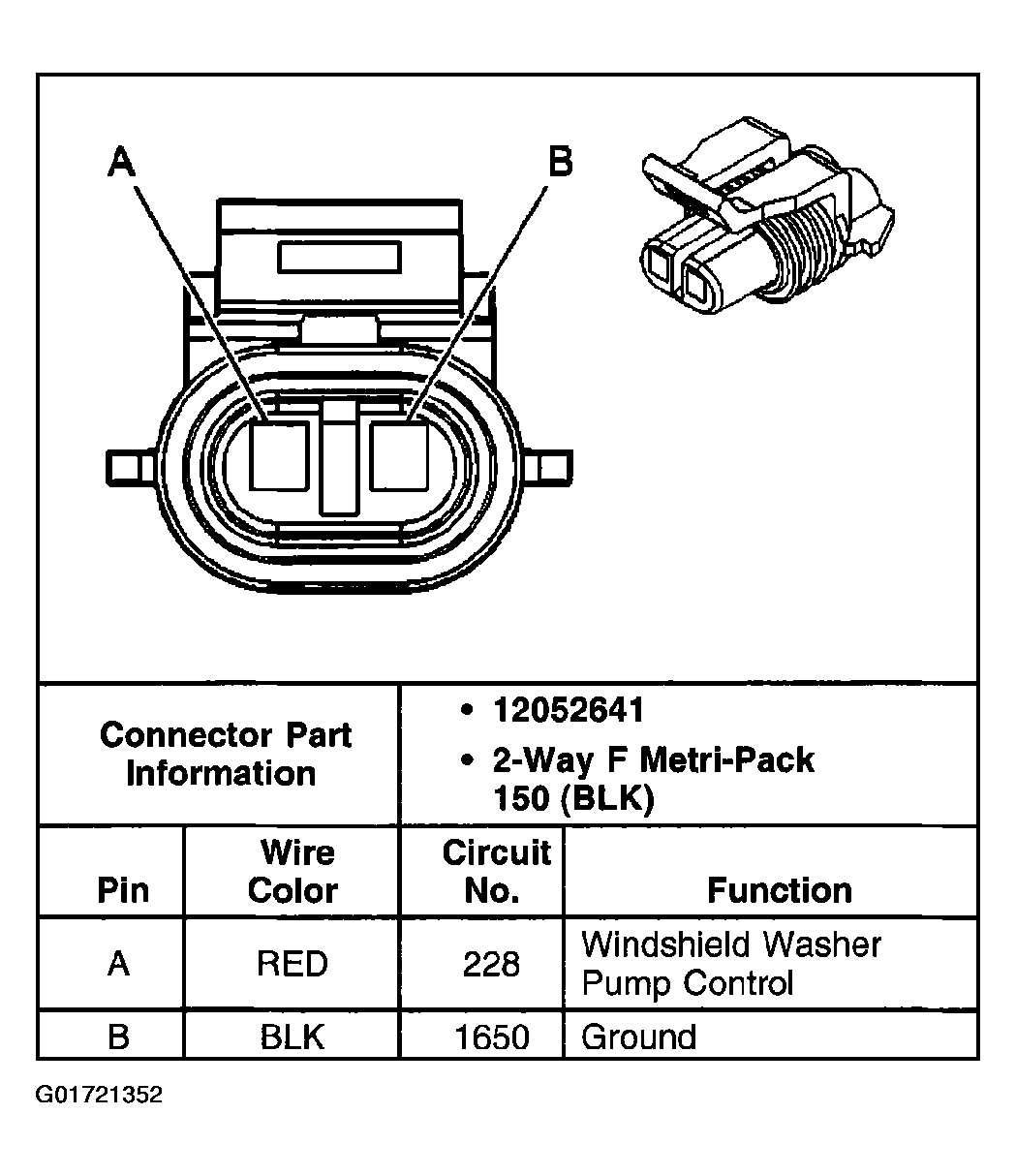

Fig 5: Windshield Washer Fluid Pump Connector End View
G01721352Courtesy of GENERAL MOTORS CORP.
Fig 6: Windshield Wiper Motor Connector End View
G01721353Courtesy of GENERAL MOTORS CORP.
Fig 7: Turn Signal/Multifunction Switch C3 Connector End View
G01721354Courtesy of GENERAL MOTORS CORP.
