Scan Tool Data List
WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

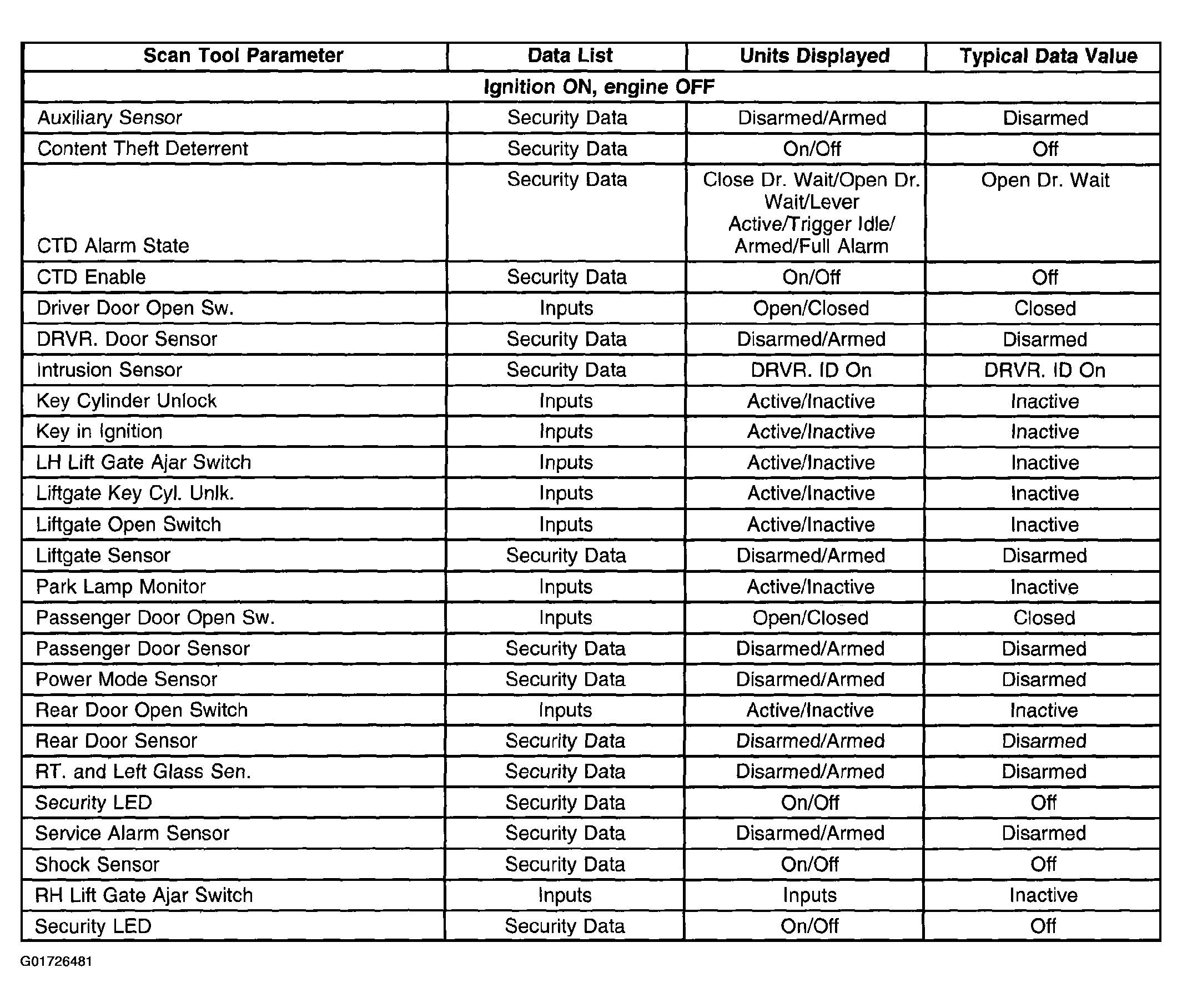

Fig 1: Body Control Module (BCM) Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.

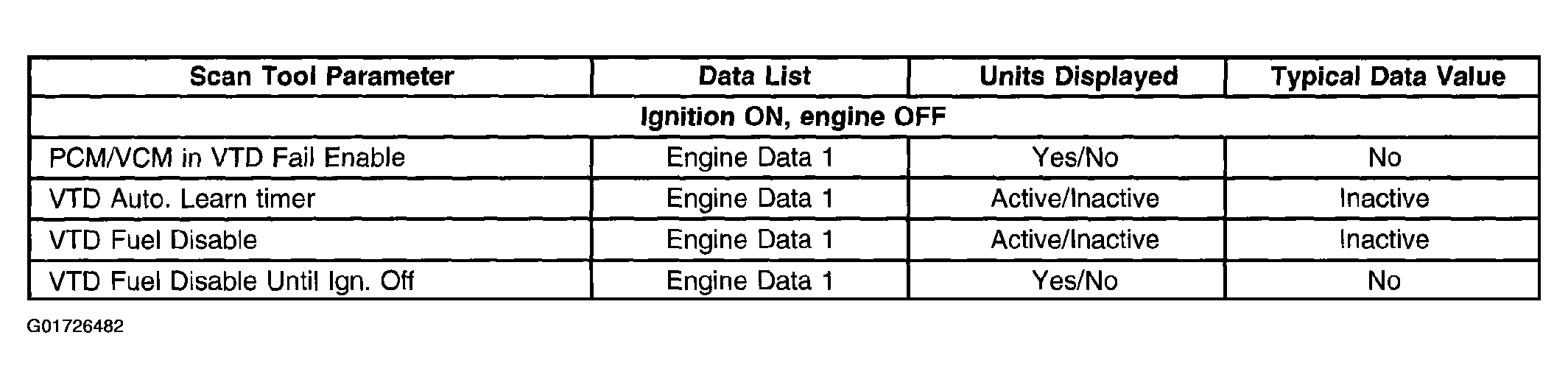

Fig 2: Powertrain Control Module (PCM) Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.

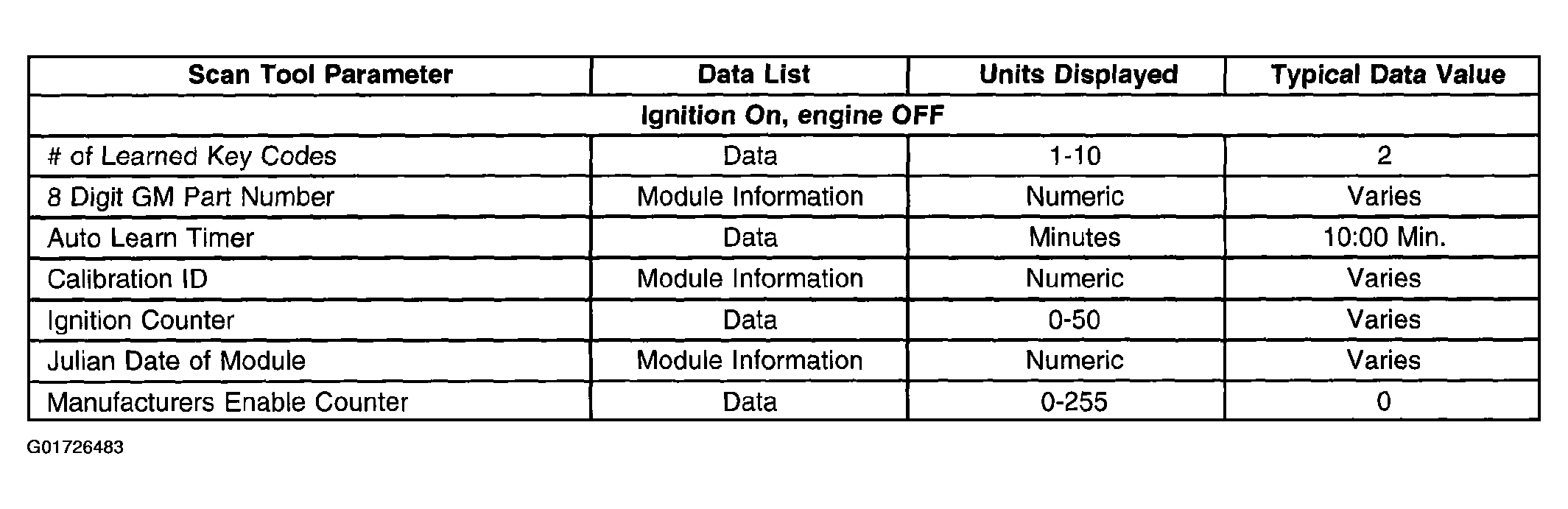

Fig 3: Vehicle Theft Deterrent (VTD) Module Scan Tool Data List (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Vehicle Theft Deterrent (VTD) Module Scan Tool Data List (2 Of 2)
