Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to Seat Replacement-Front Bucket   .
  2. Remove the seat back trim cover. Refer to Seat Back Cover And Pad Replacement-Front   .
  3. Peel the seat back heater off the foam pad.
  4. Disconnect the seat back heater harness.

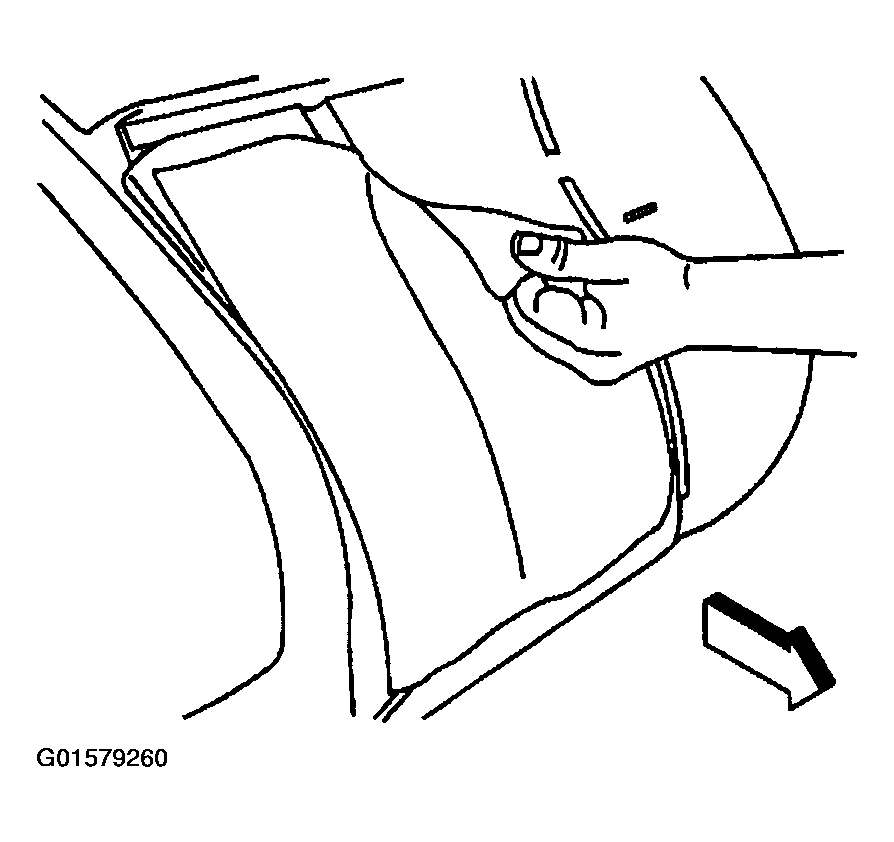

    Fig 1: Front Seat Back Heater Element
    G01579260Courtesy of GENERAL MOTORS CORP.
