Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

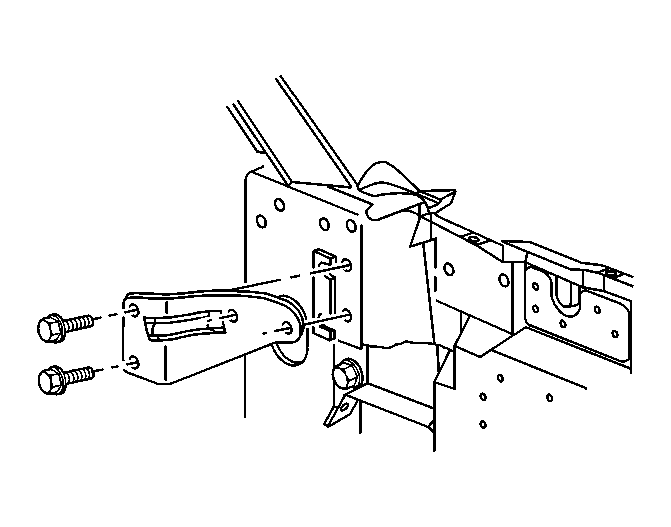

Fig 1: Hood Stop Bracket To Hinge Pillar Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the hood stop bracket to the hinge pillar.
Tighten: Tighten the hood stop bracket bolts to 25 N.m (18 lb ft).

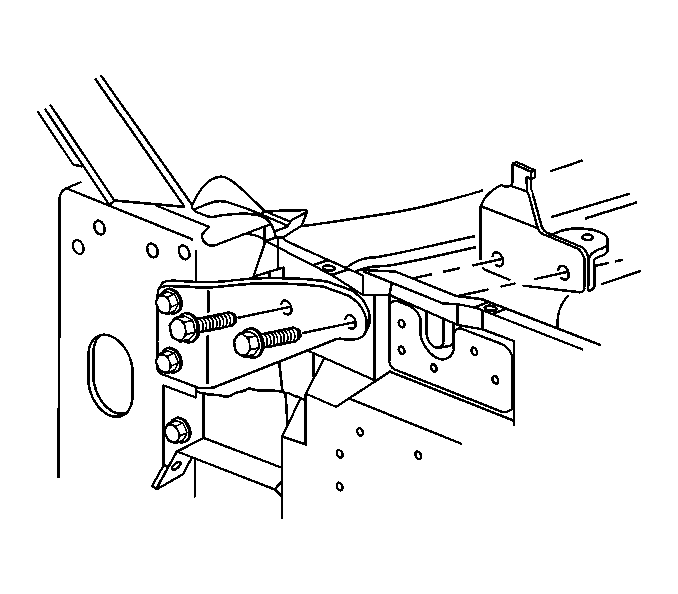

Fig 2: Hood Stop Bracket To Hood Stop Bolts

Courtesy of GENERAL MOTORS CORP.

Install the hood stop (and the plenum bracket on the passenger side) to the hood stop bracket.
Tighten: Tighten the hood stop bracket bolts to 25 N.m (18 lb ft).

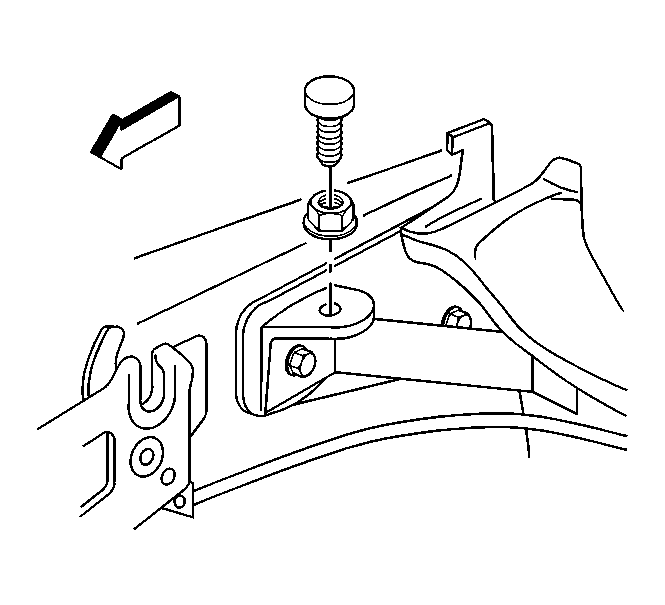

Fig 3: Hood Bumper

Courtesy of GENERAL MOTORS CORP.

Install the hood bumper.
Tighten: Tighten the hood bumper jam nut to 10 N.m (89 lb in).

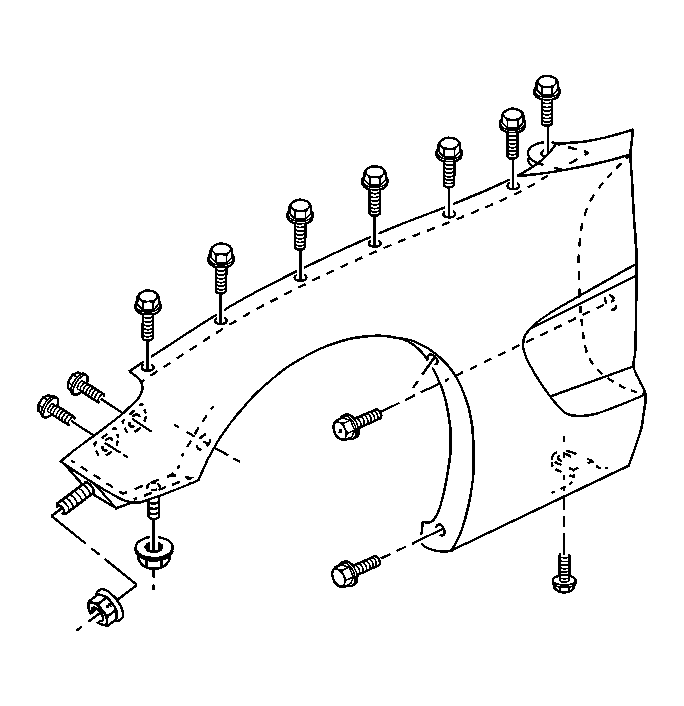

Fig 4: Front Fender & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the fender. Refer to Fender Replacement - Front .
