Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood insulator to the hood support brackets.
  2. Align the hood insulator retainers holes to the holes in the hood.

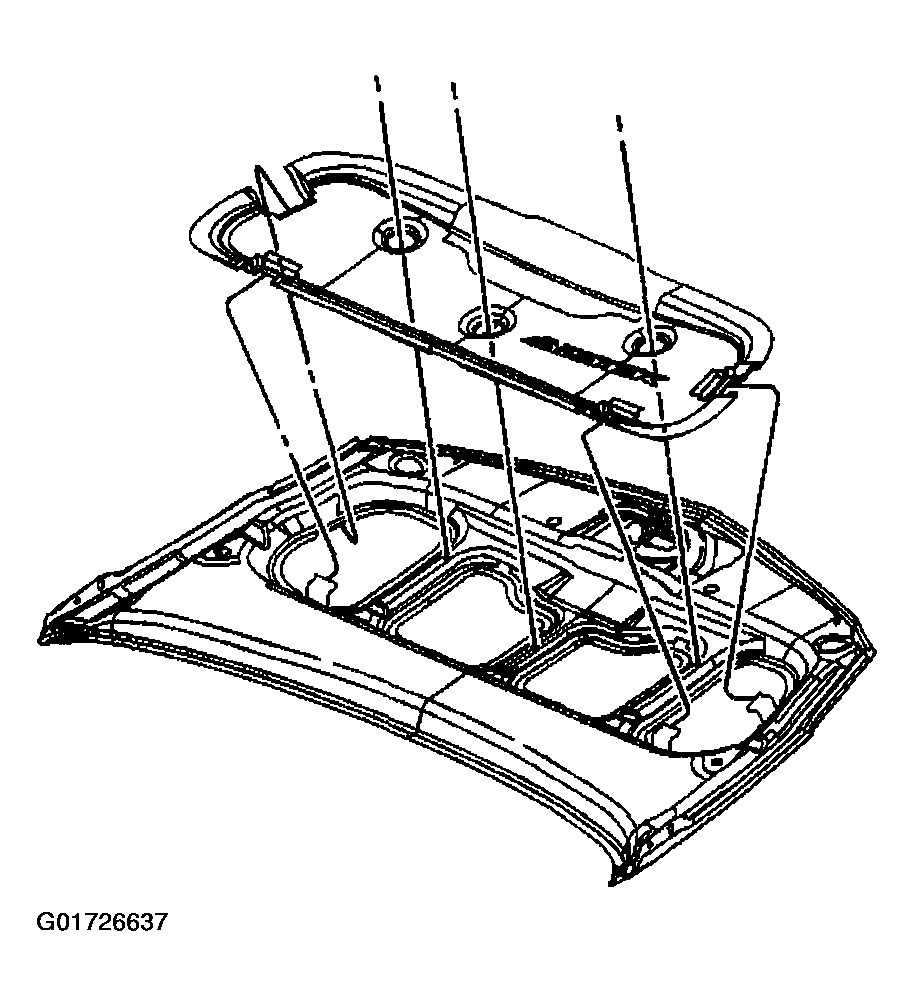

    Fig 1: Installing Hood Insulator
    G01726637Courtesy of GENERAL MOTORS CORP.
  3. Install the push-in retainers to the hood.
  4. Close the hood.

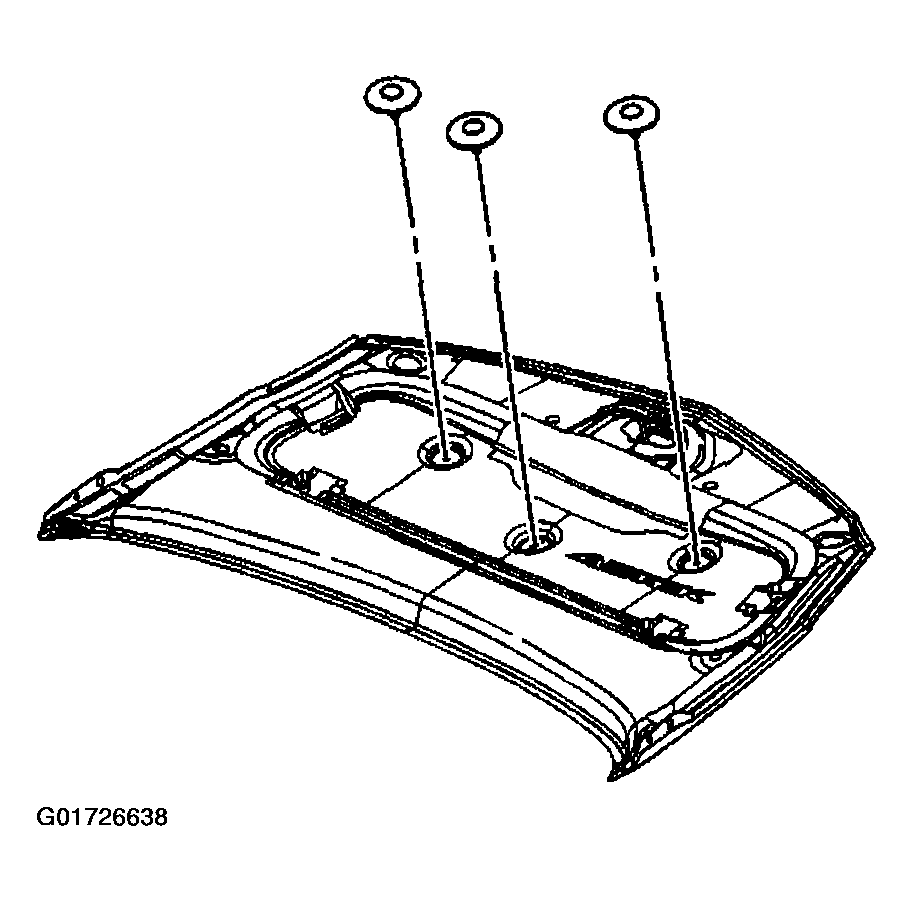

    Fig 2: Installing Hood Insulator Push-In Retainers
    G01726638Courtesy of GENERAL MOTORS CORP.
