Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the catalytic converter heat shield.
  2. Install the converter heat shield rivets.

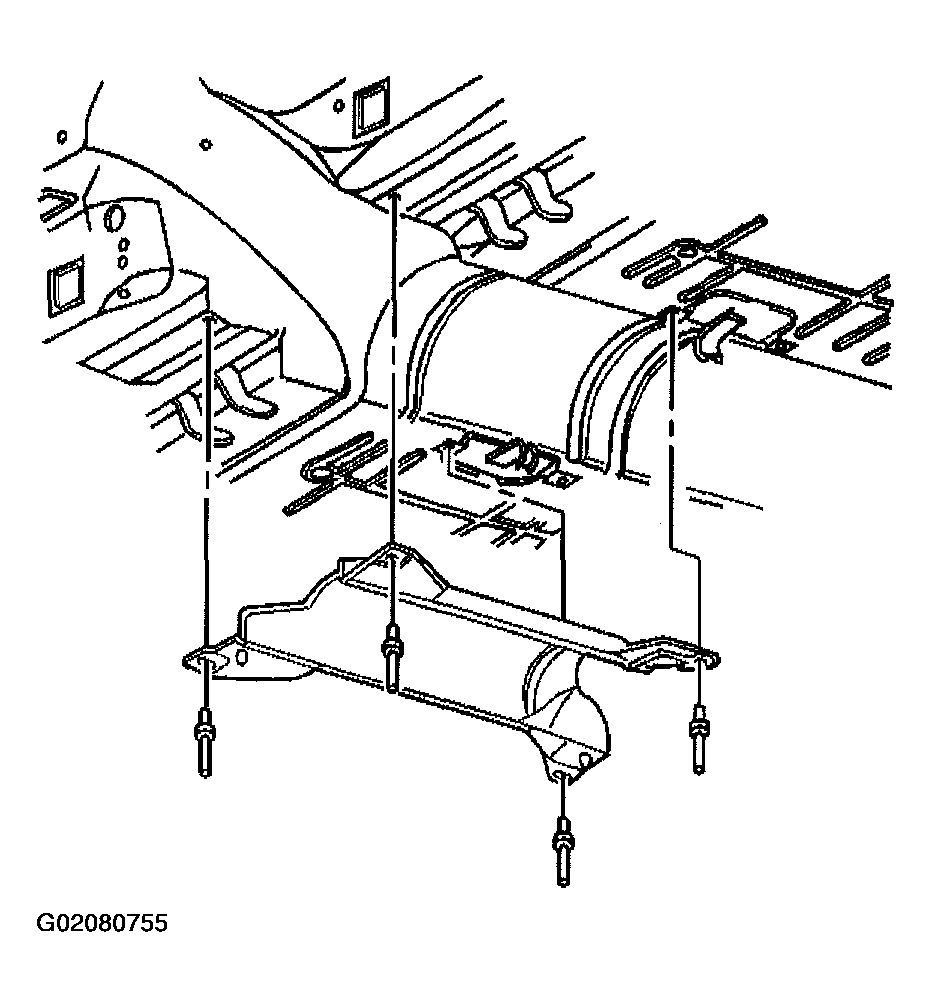

    Fig 1: Installing Catalytic Converter Heat Shield
    G02080755Courtesy of GENERAL MOTORS CORP.
  3. Install the oxygen sensor wiring harness (3) to the catalytic converter heat shield.
  4. Install the catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT (3.1L)  or CATALYTIC CONVERTER REPLACEMENT (3.8L)  .
  5. Remove the support from the exhaust system.
  6. Inspect the exhaust system for leaks and underbody contact.
  7. Lower the vehicle.

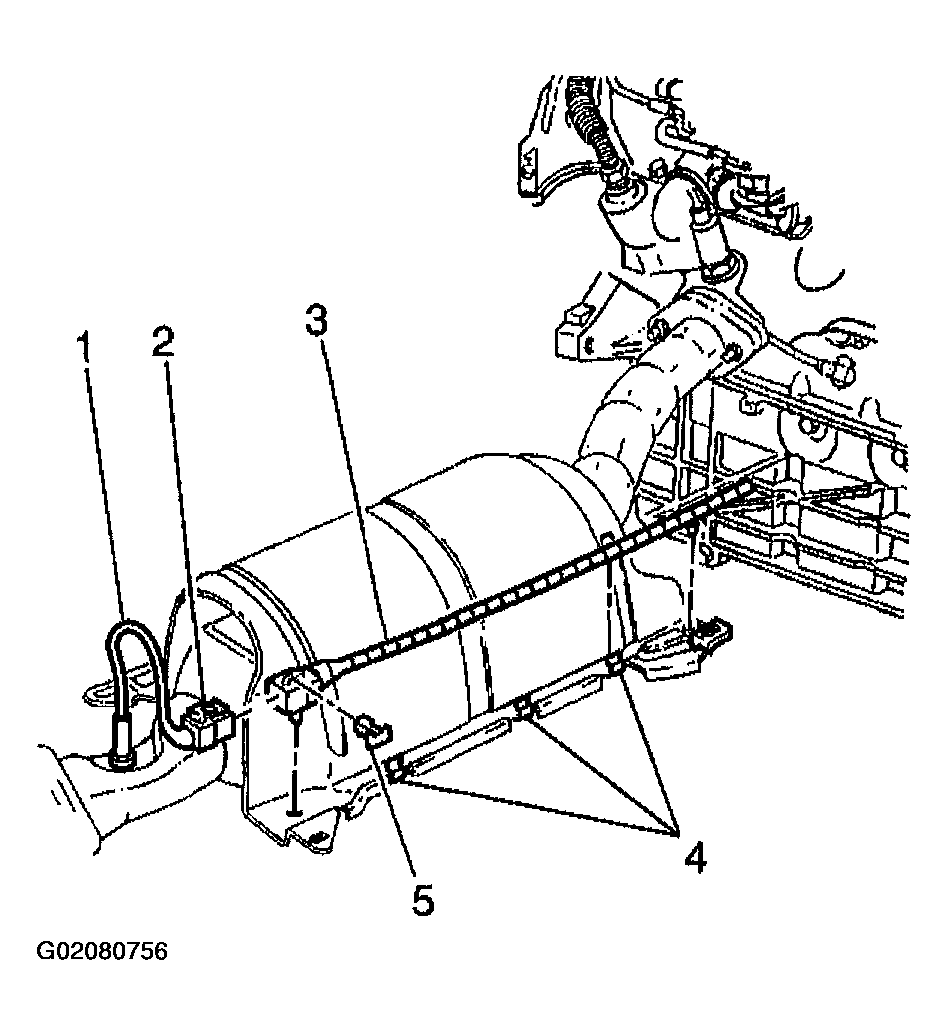

    Fig 2: Installing Oxygen Sensor Wiring Harness To Catalytic Converter Heat Shield
    G02080756Courtesy of GENERAL MOTORS CORP.
