Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the engine oil drain plug in order to drain the engine oil.

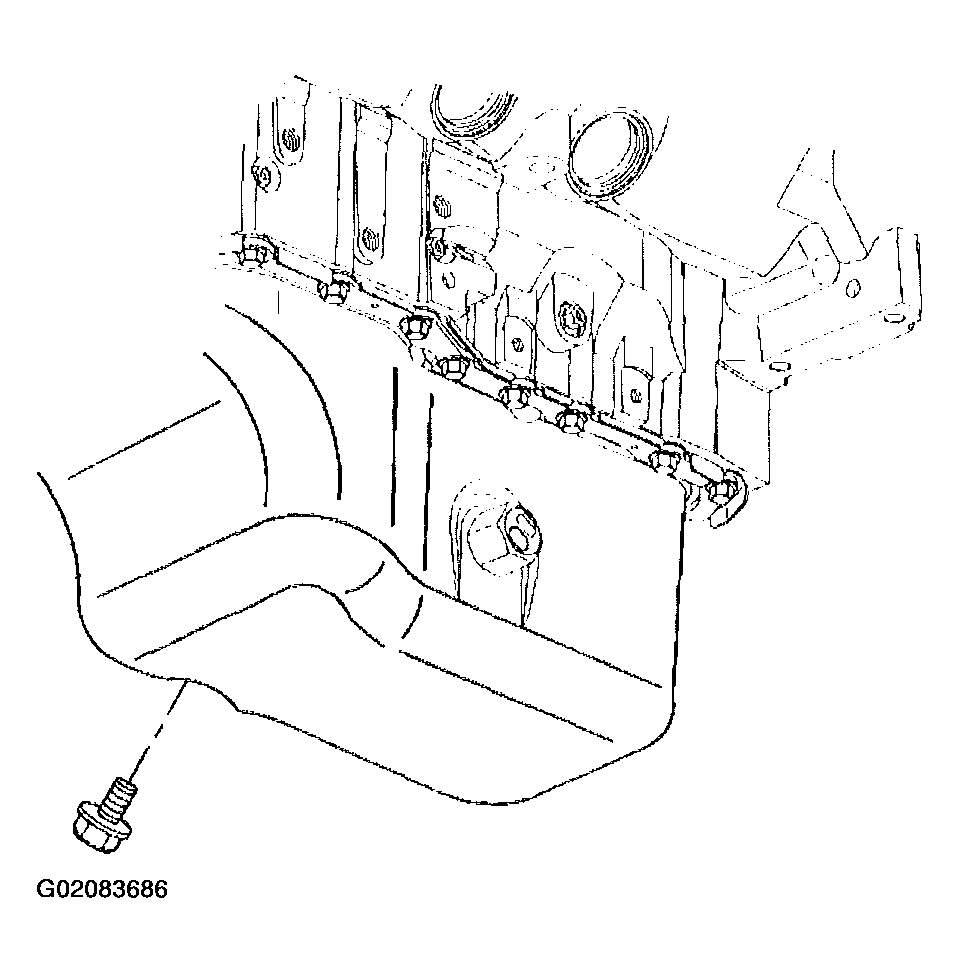

    Fig 1: Removing Engine Oil Drain Plug
    G02083686Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the oil level sensor electrical connector.
  4. Remove the engine oil level sensor from the oil pan.

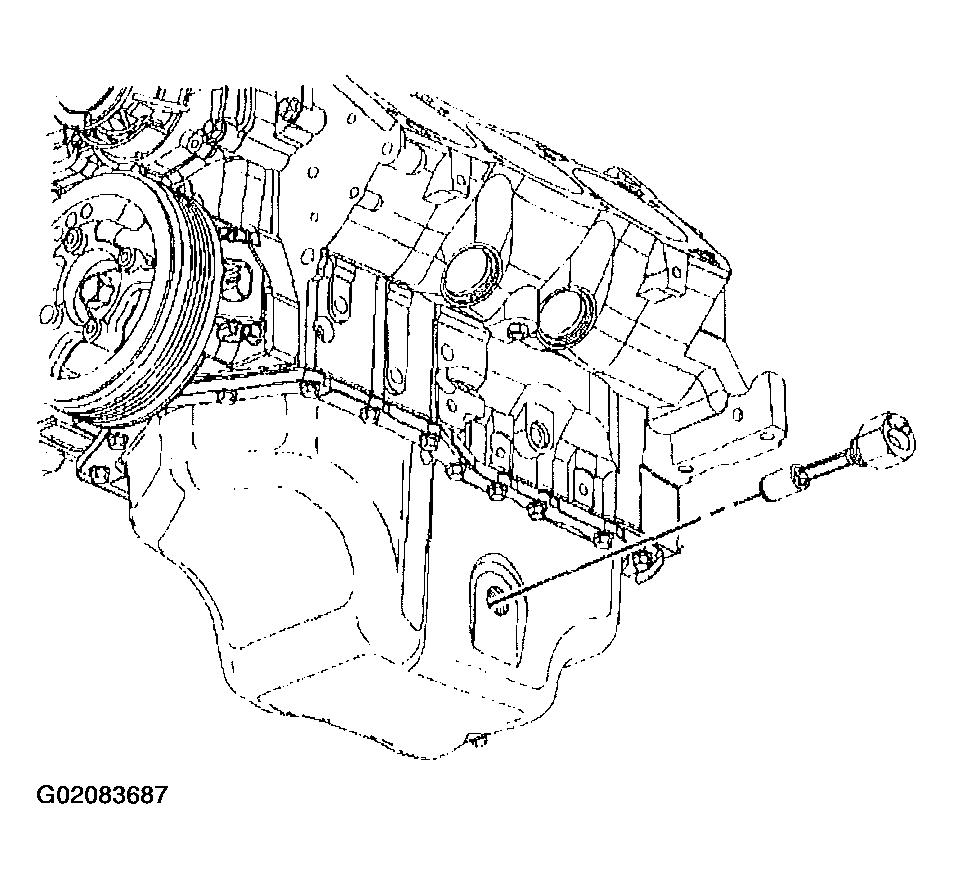

    Fig 2: Removing Engine Oil Level Sensor
    G02083687Courtesy of GENERAL MOTORS CORP.
