Power Seat Adjuster Assembly: Installation

  1. Install front seat adjuster to seat cushion frame. See Fig 4 .
  2. Install seat back recliner cable to recessed space on right and on left sides of seat cushion frame. See Fig 5 .
  3. Install bolts to front seat adjuster. Tighten bolts to 32 ft lbs. (43 N.m).
  4. Install handle to front seat adjuster.
  5. Connect harness connectors to front seat adjuster motors.
  6. Install front seat belt buckle.
  7. Install inner cushion trim panel. See Fig 1 .
  8. Install outer cushion trim cover.
  9. Install seat.

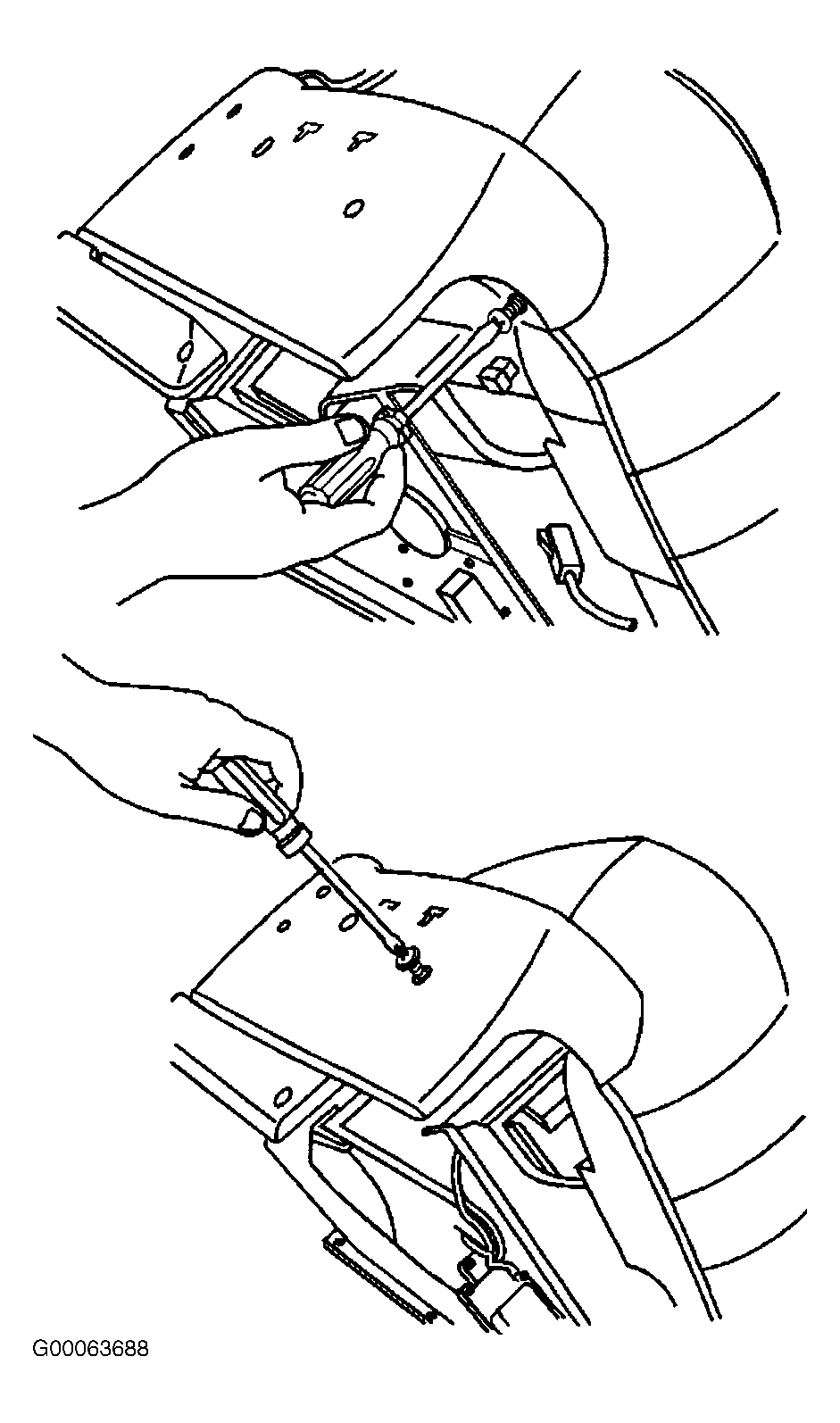

Fig 1: Removing & Installing Inner Cushion Trim Panel
G00063688Courtesy of GENERAL MOTORS CORP.

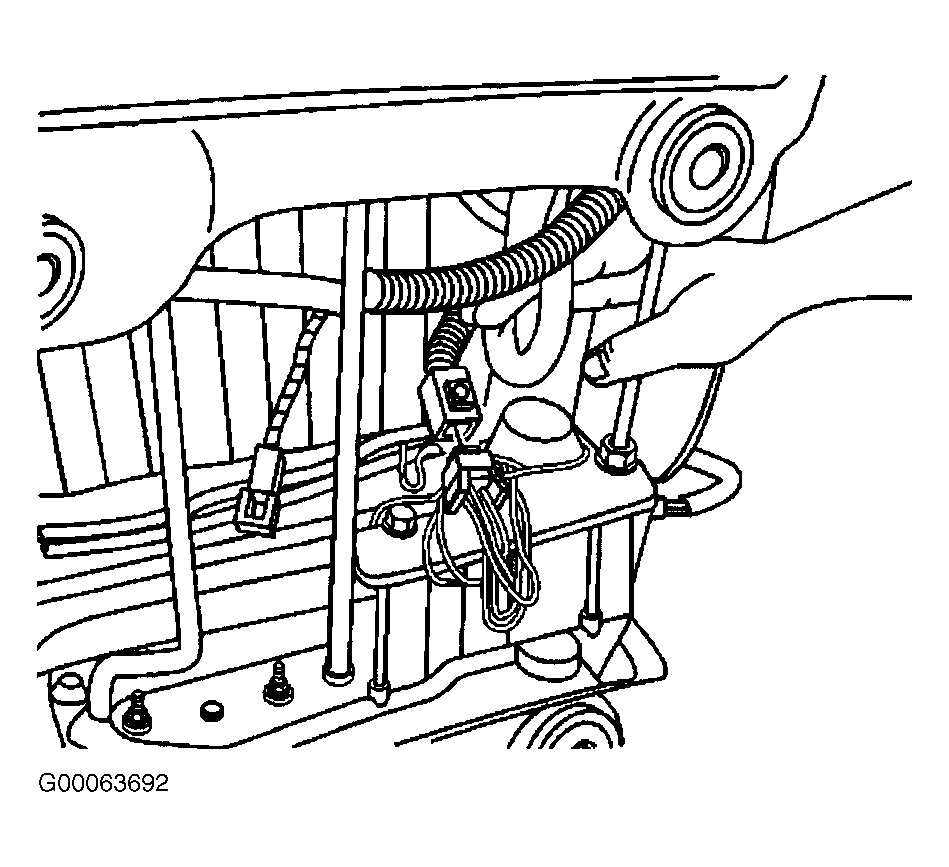

Fig 2: Locating Adjuster Harness Connectors
G00063692Courtesy of GENERAL MOTORS CORP.

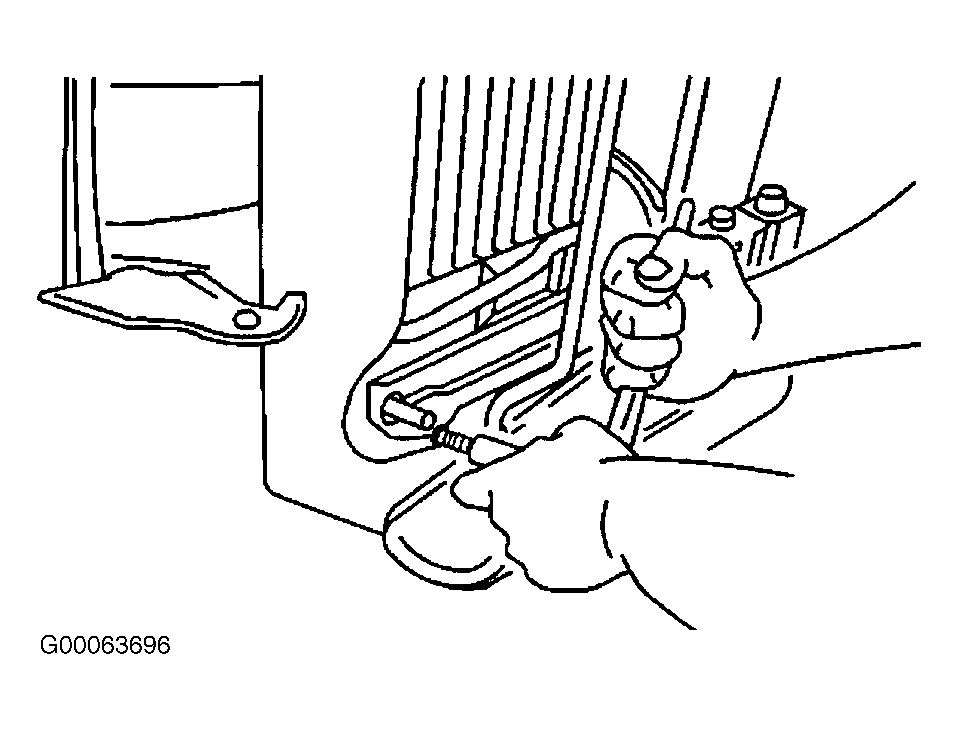

Fig 3: Locating Seat Adjuster Bolts
G00063696Courtesy of GENERAL MOTORS CORP.

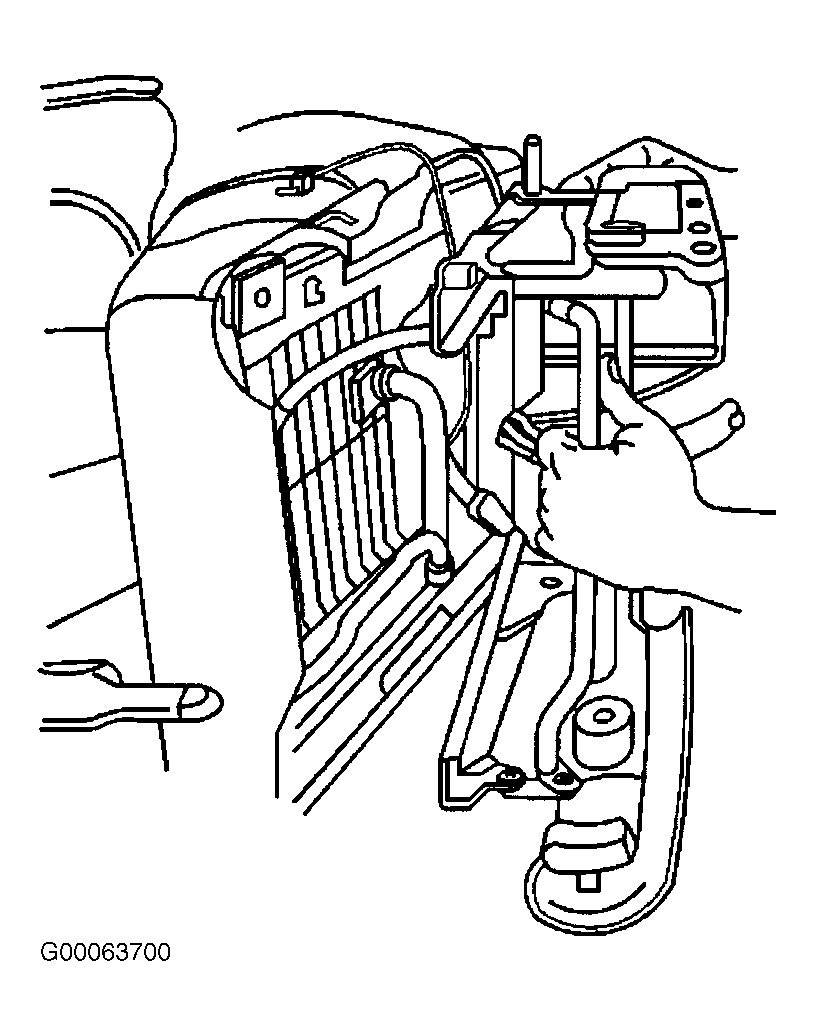

Fig 4: Removing & Installing Seat Adjuster
G00063700Courtesy of GENERAL MOTORS CORP.

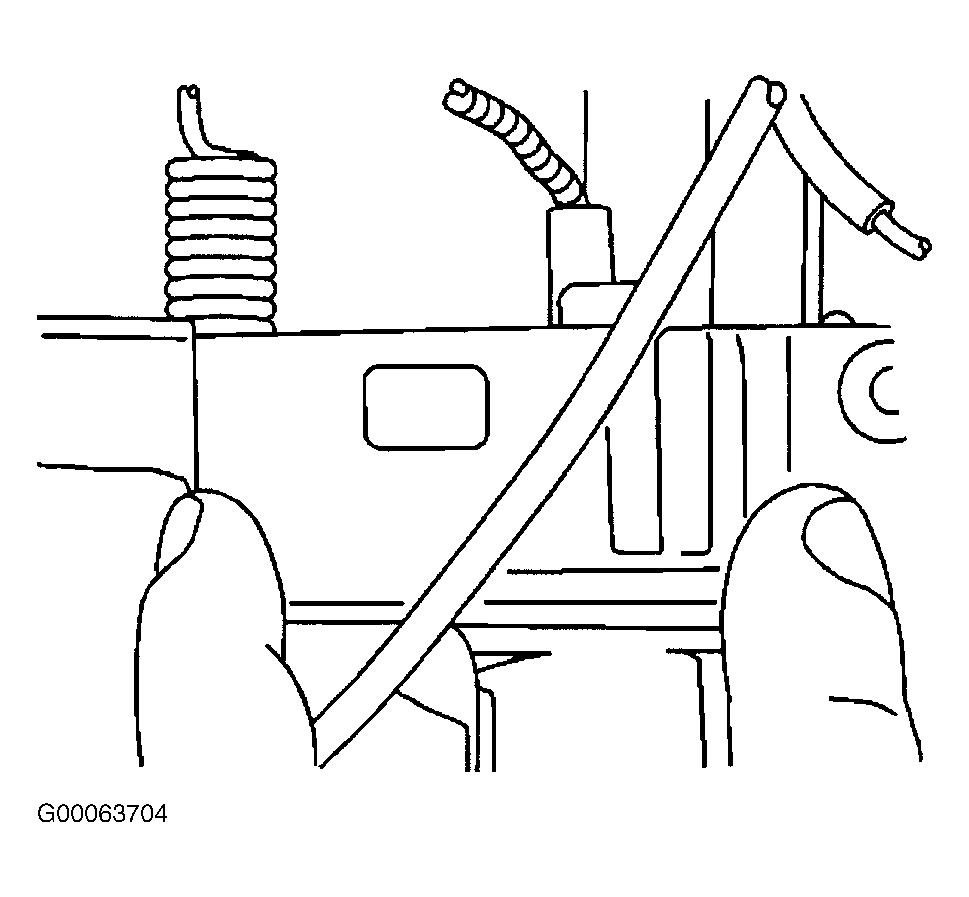

Fig 5: Locating Seat Back Recliner Cable Position
G00063704Courtesy of GENERAL MOTORS CORP.
