System Diagram

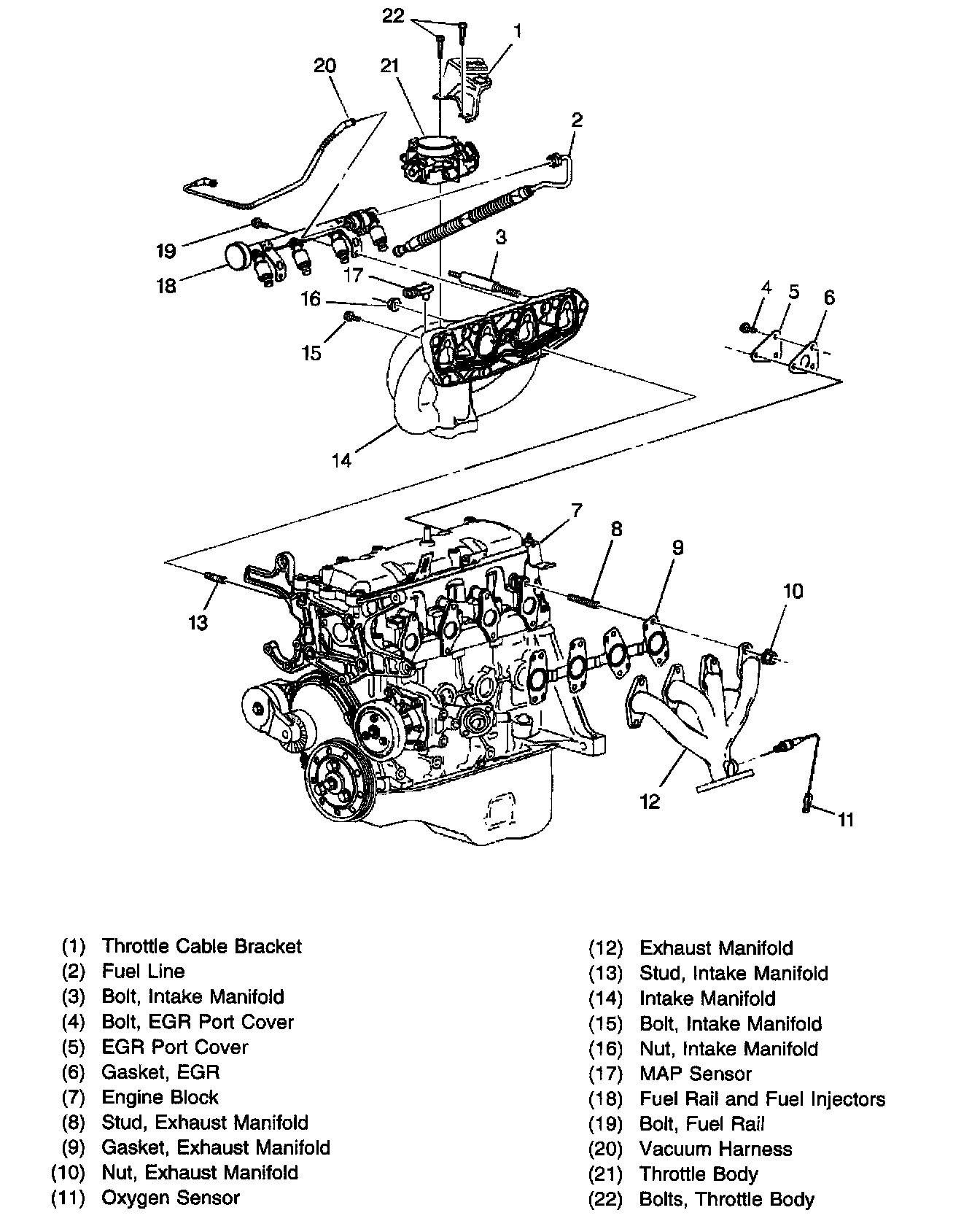

Intake and Exhaust Manifold Components

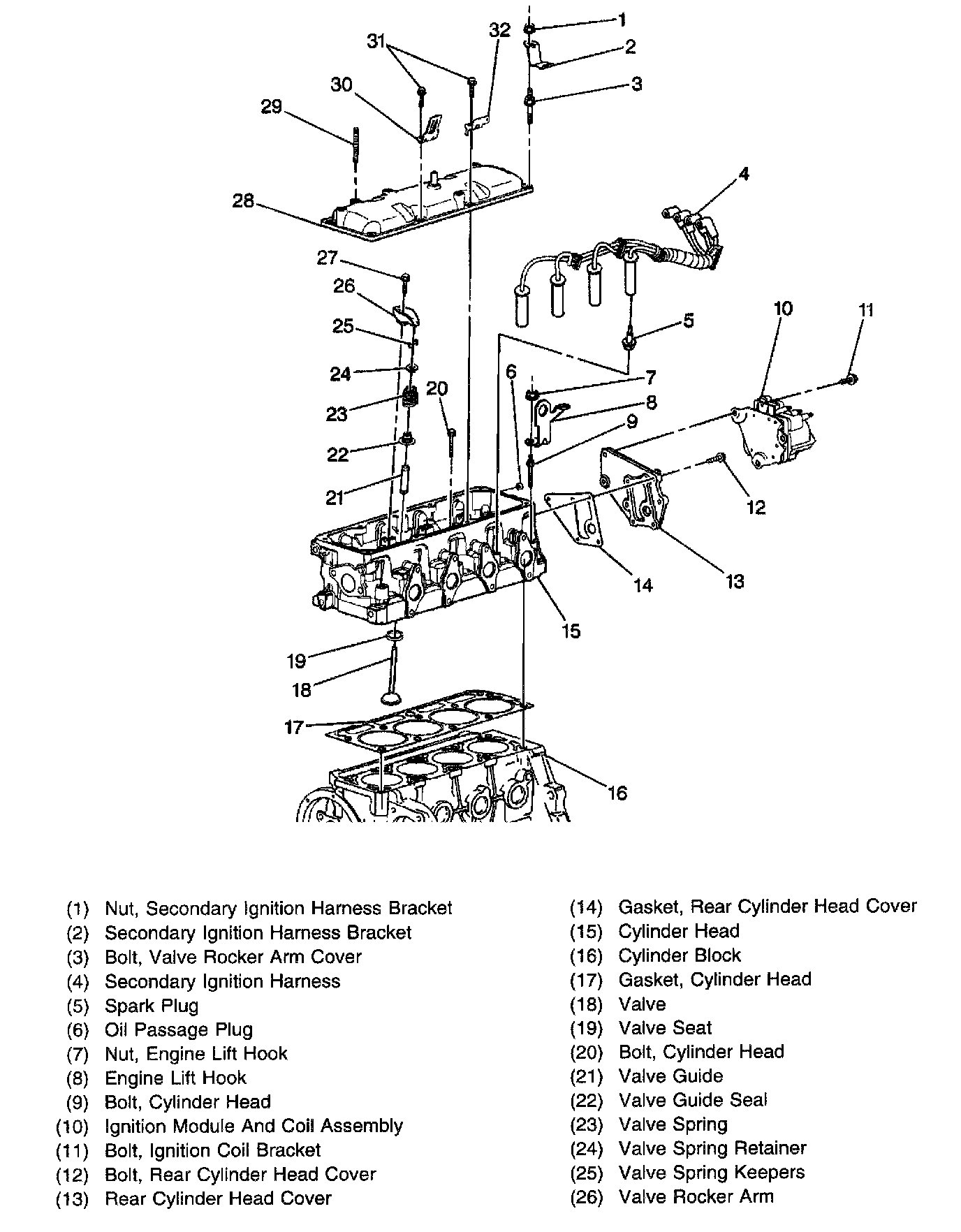

Cylinder Head And Components

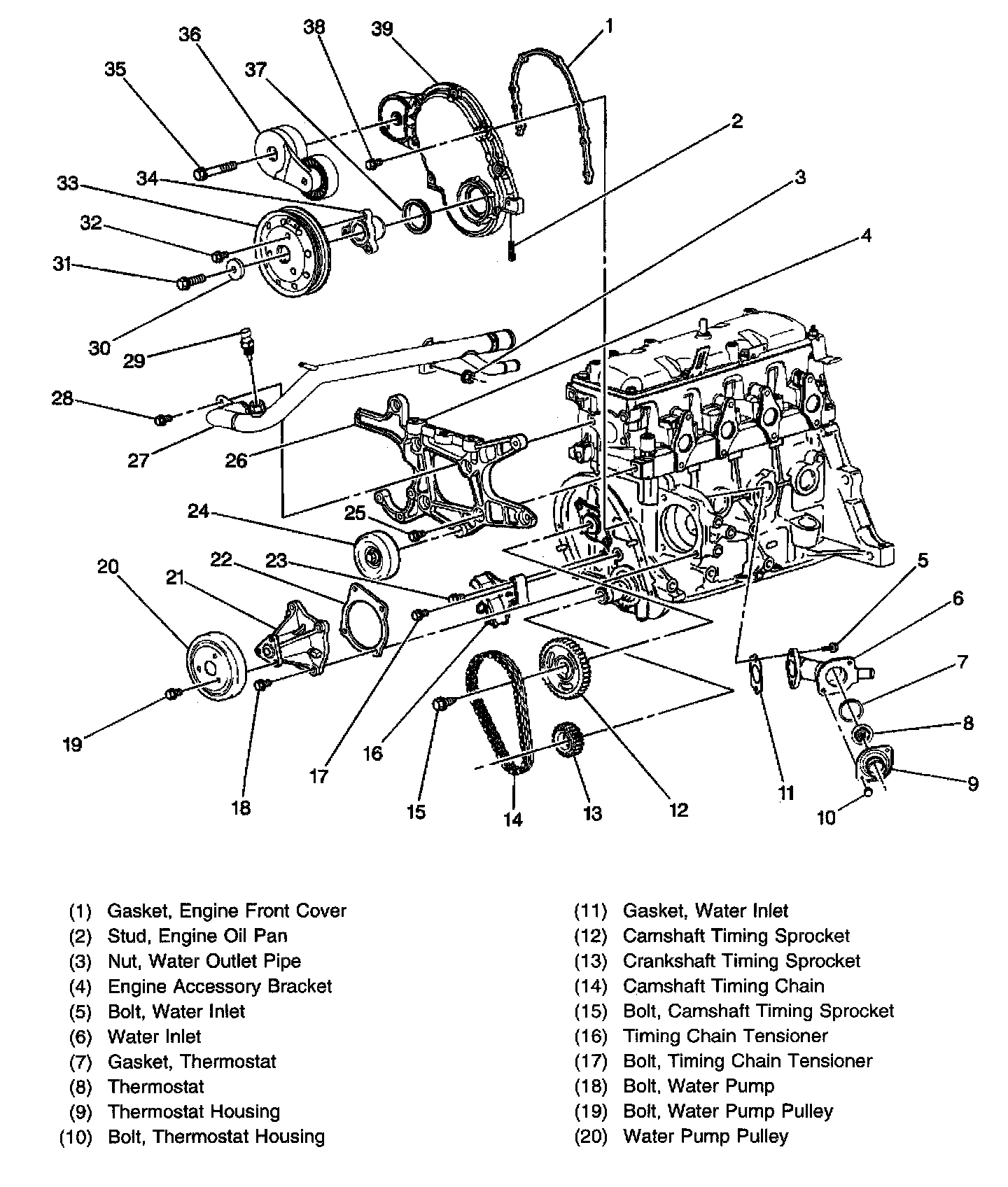

Timing and Accessory Components

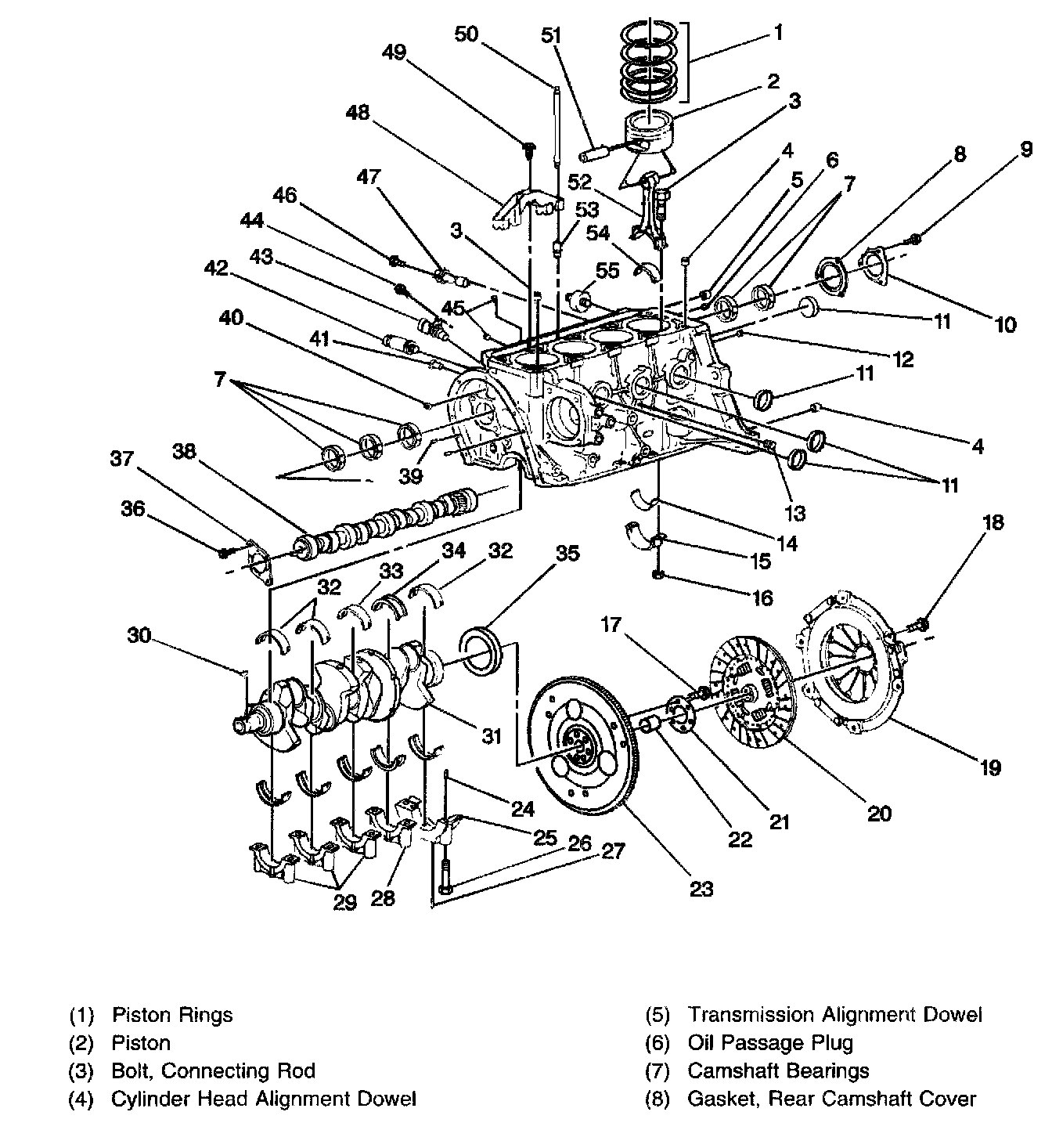

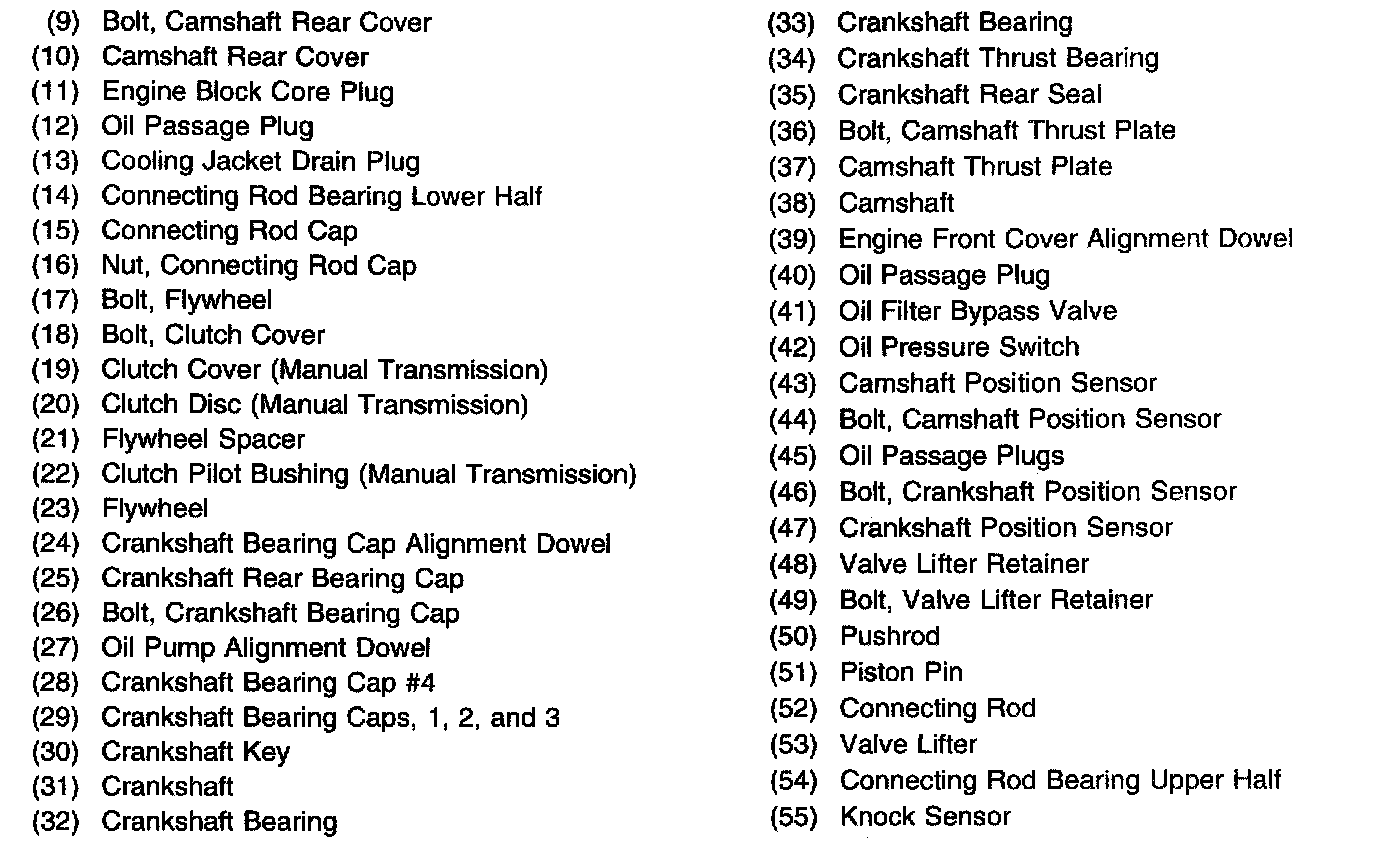

Cylinder Block And Crankshaft Components

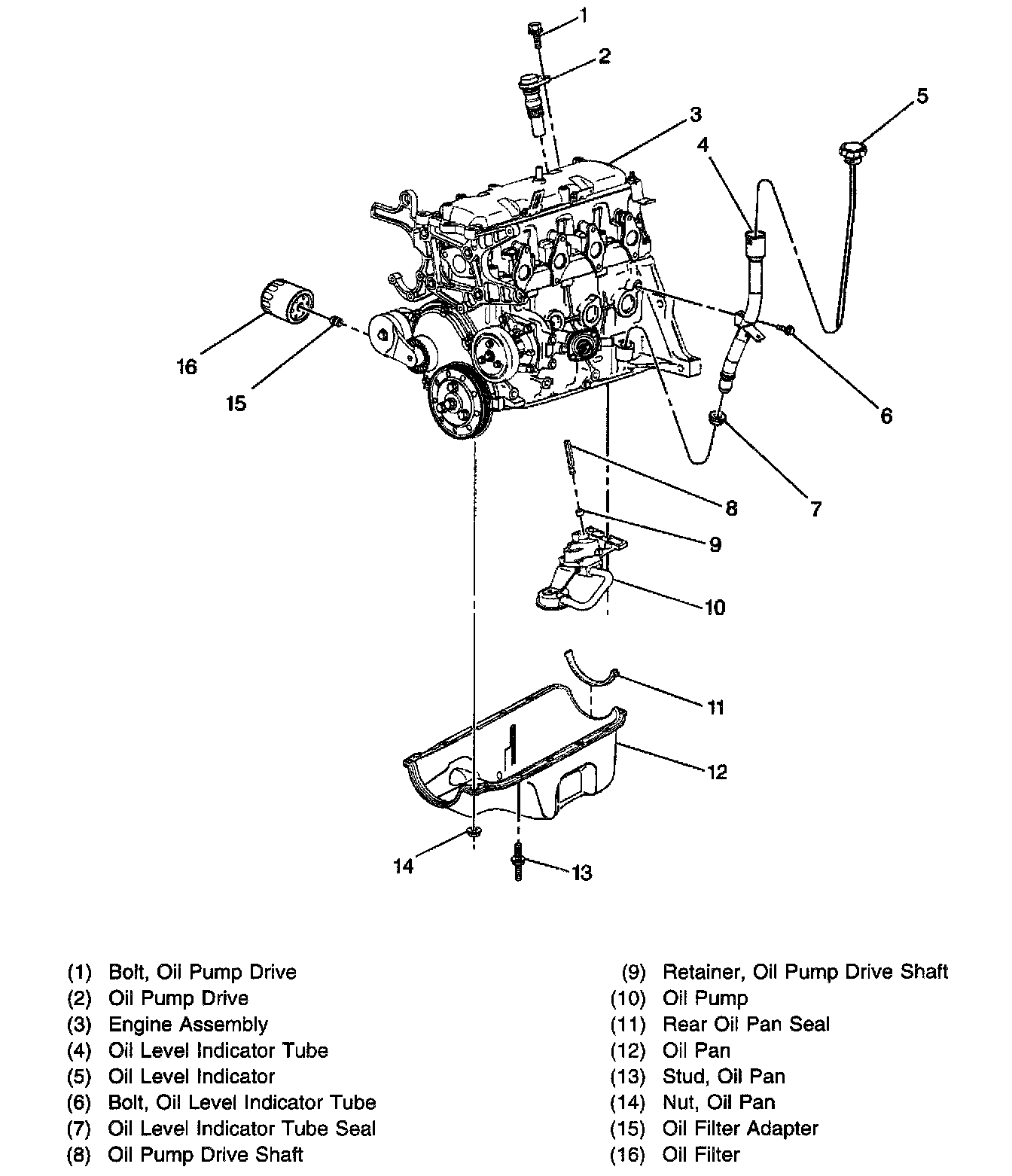

Oil Pump And Oil Pan Components
