Ignition SW, Inadvertent PWR Output & Interior Lighting Control

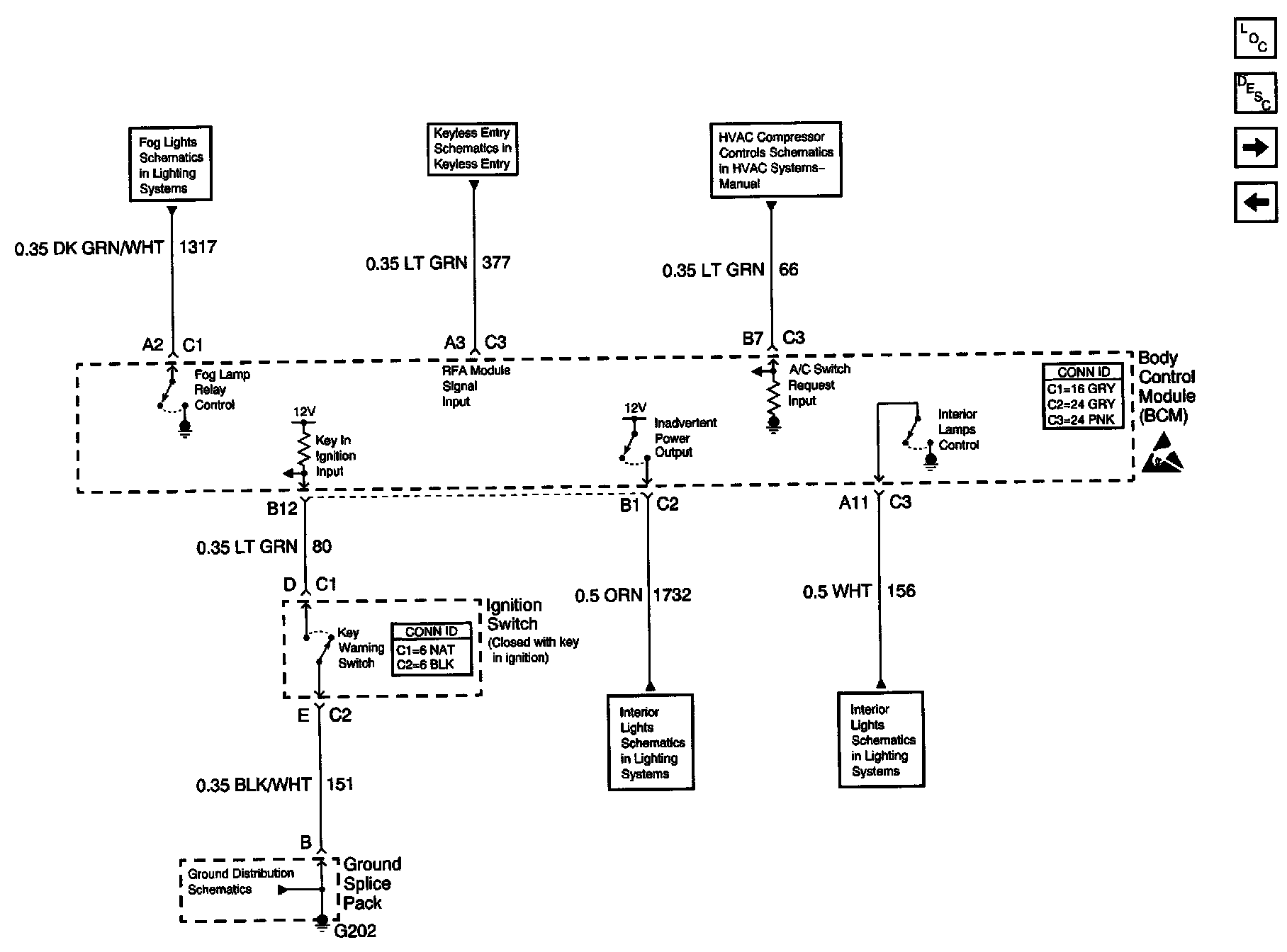

Body Control Module Schematics: Ignition Switch, Inadvertent Power Output And Interior Lighting Control:
