Passlock CYL, & Hdlp Inputs

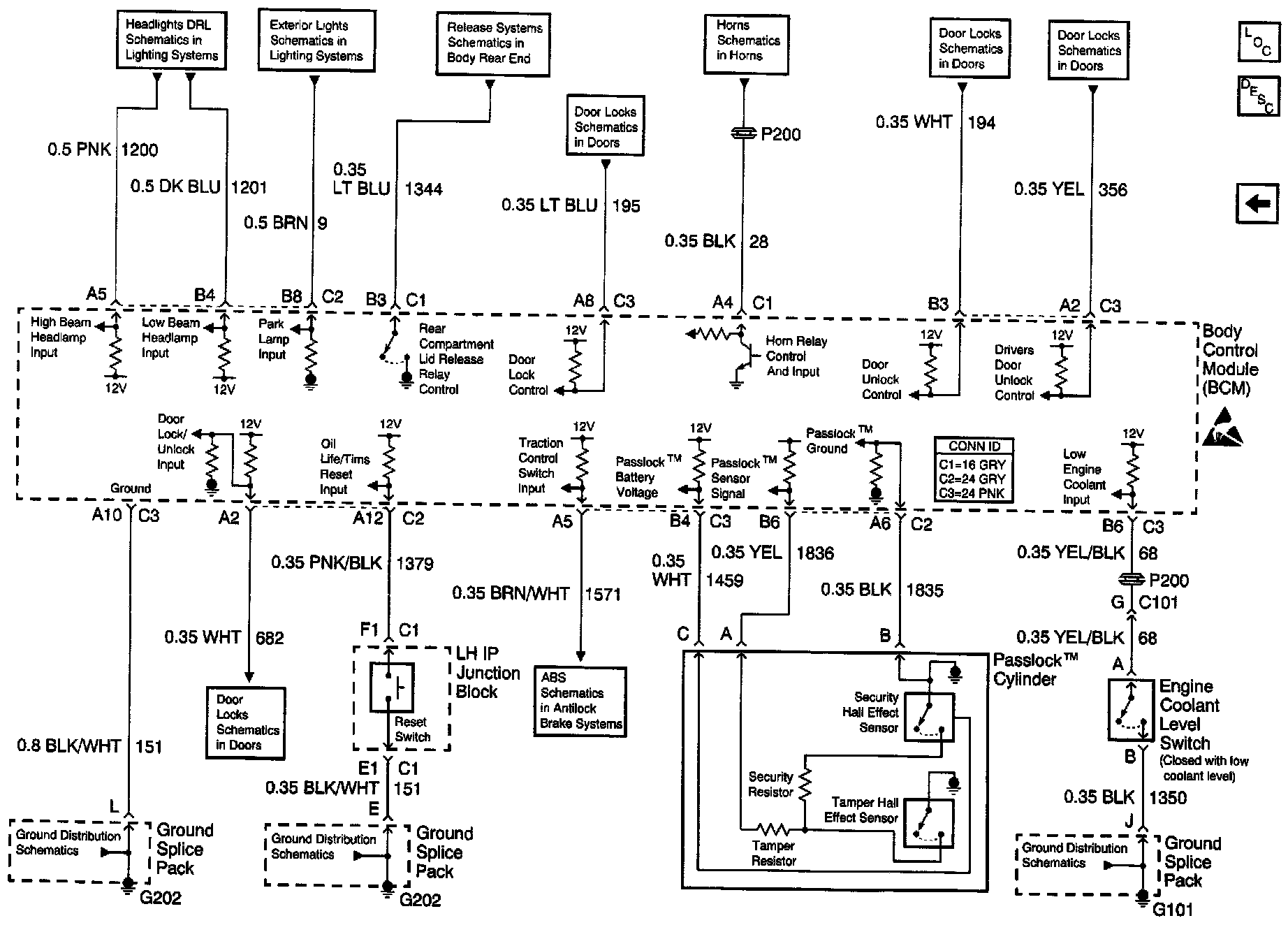

Body Control Module Schematics: Engine Coolant Level Switch, Horn And Rear Compartment Control, Passlock(TM) Cylinder, And Headlamp Inputs:
