Electronic Brake Control Module: Service and Repair

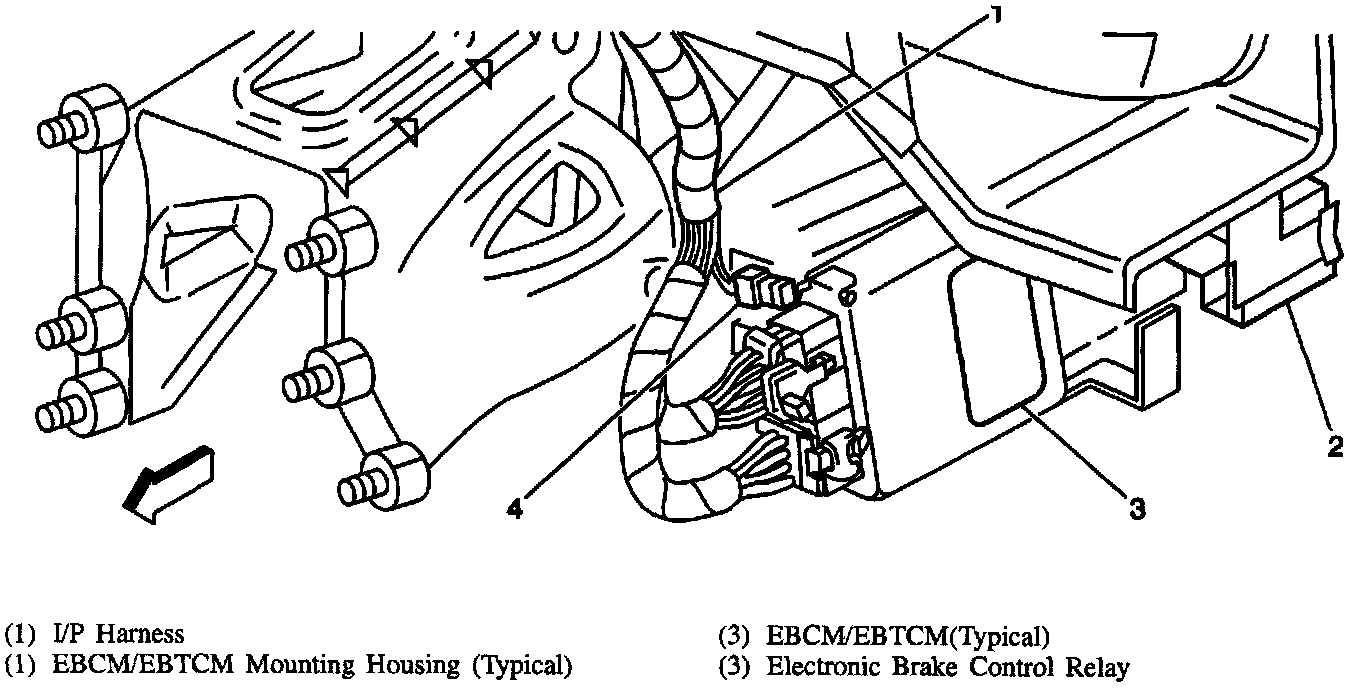

Electronic Brake Control Module/Electronic Brake Traction Control Module:






REMOVE OR DISCONNECT
1. Release the Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM) from the EBCM/EBTCM bracket, using pressure tabs.
2. EBCM/EBTCM electrical connectors.

INSTALL OR CONNECT
1. EBCM/EBTCM electrical connectors.
2. Slide EBCM/EBTCM into EBCM/EBTCM bracket until secured by pressure tabs.
