Torque Specifications

Cylinder Head Bolts

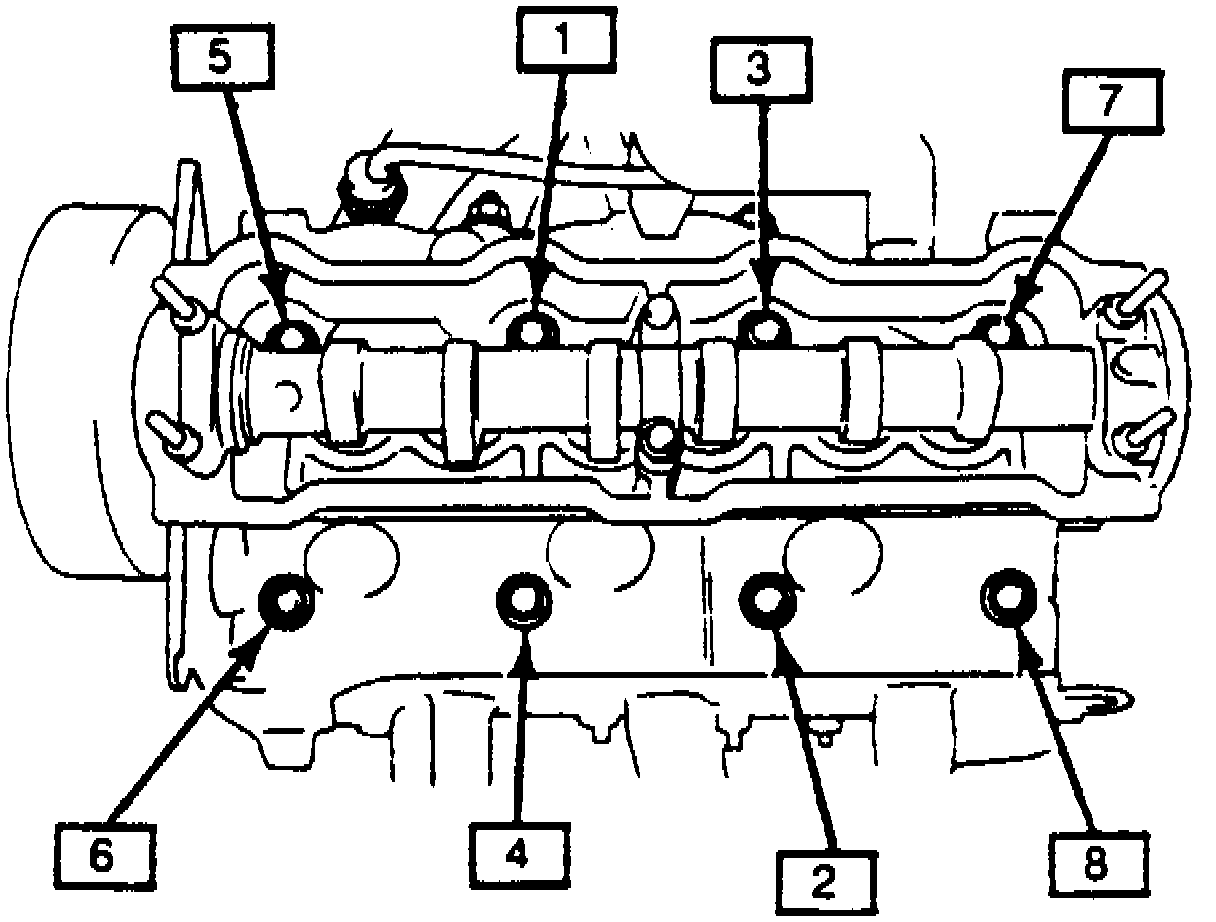

Cylinder Head Bolt Tightening Sequence:





In the sequence shown
- Torque bolts to 73 Nm (54 ft lbs)
