Engine Controls - Tests W/Codes - 3.4L
>>
ECM/Pcm Code Charts
>>
Code 93, Pressure Control Solenoid
>>
Diagnostic Aids
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Aids
Check for poor connections at PCM and at transmission connector.

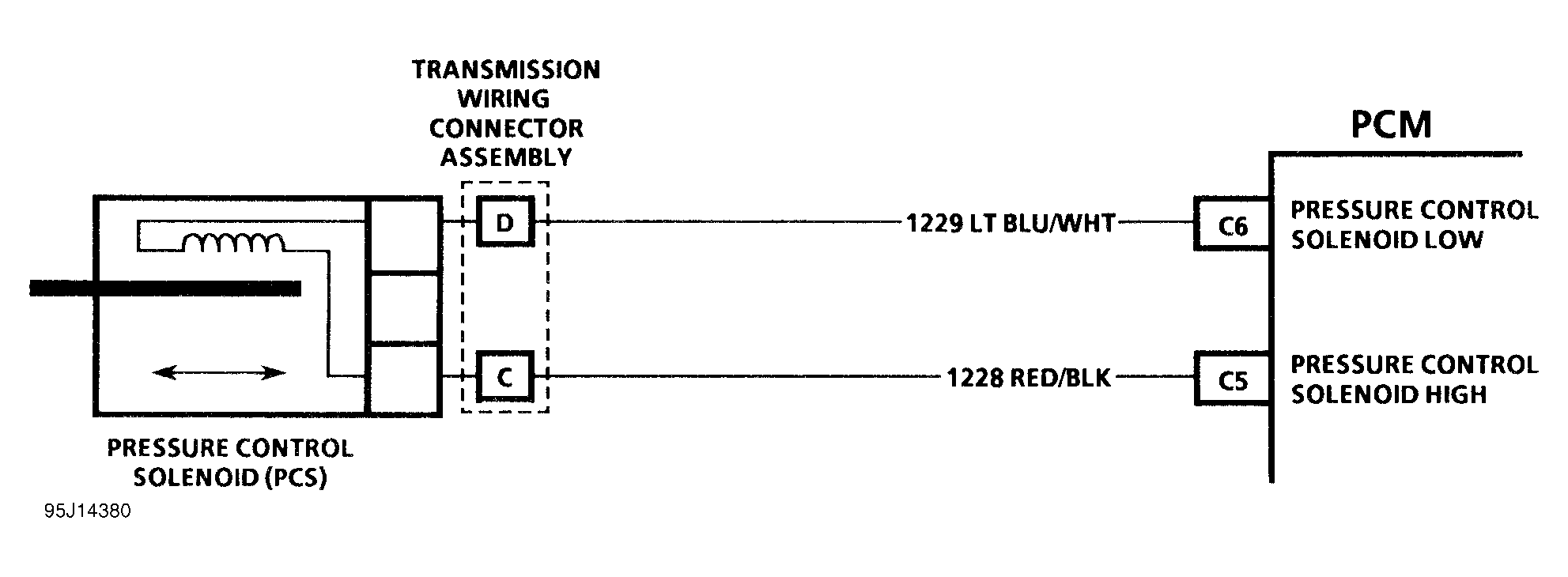

Fig 1: Code 93 Schematic (3.4L (VIN S)) Pressure Control Solenoid

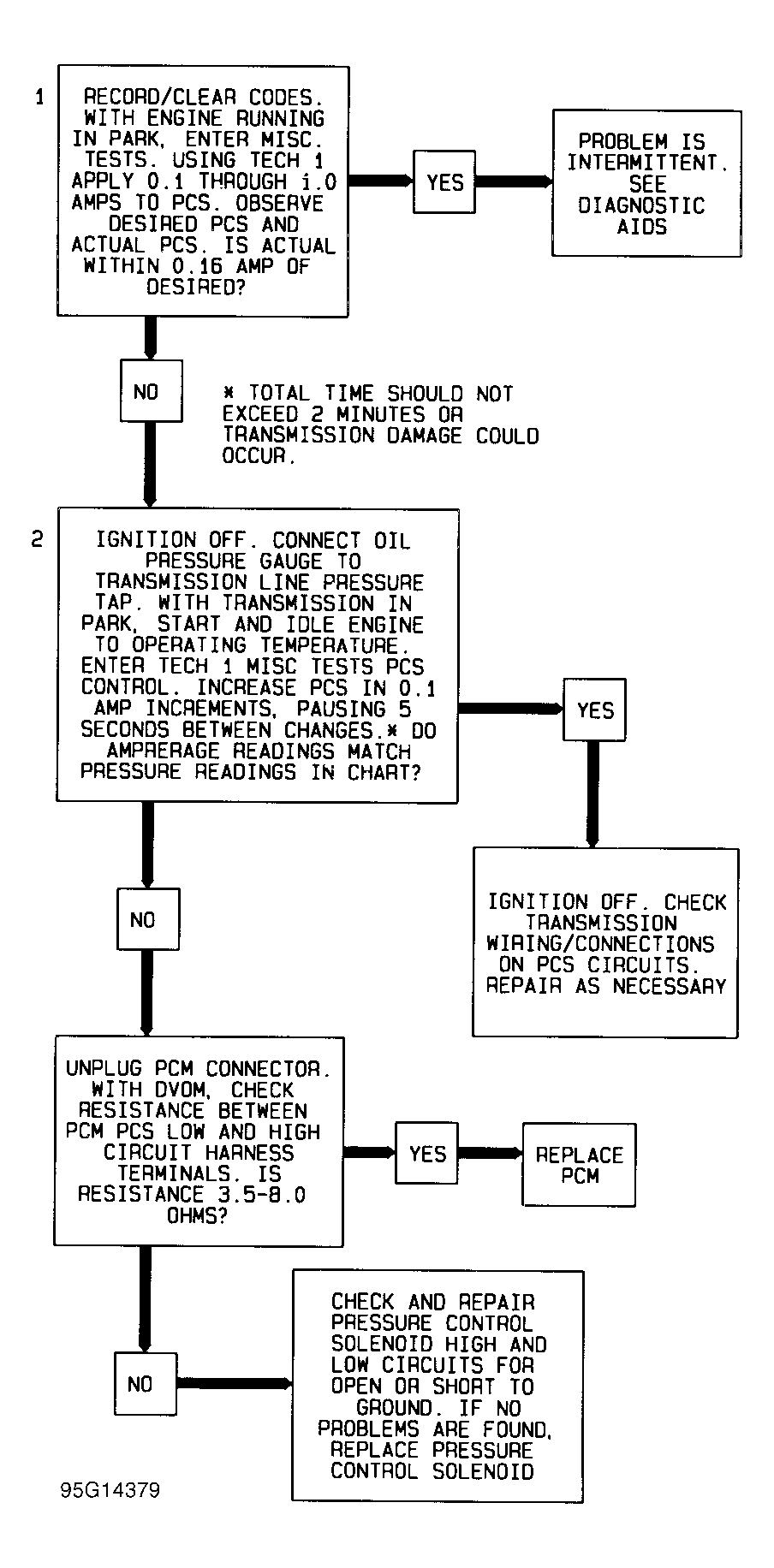

Fig 2: Code 93 Diagnostic Flow Chart (3.4L (VIN S)) Pressure Control Solenoid
