Control Module HVAC

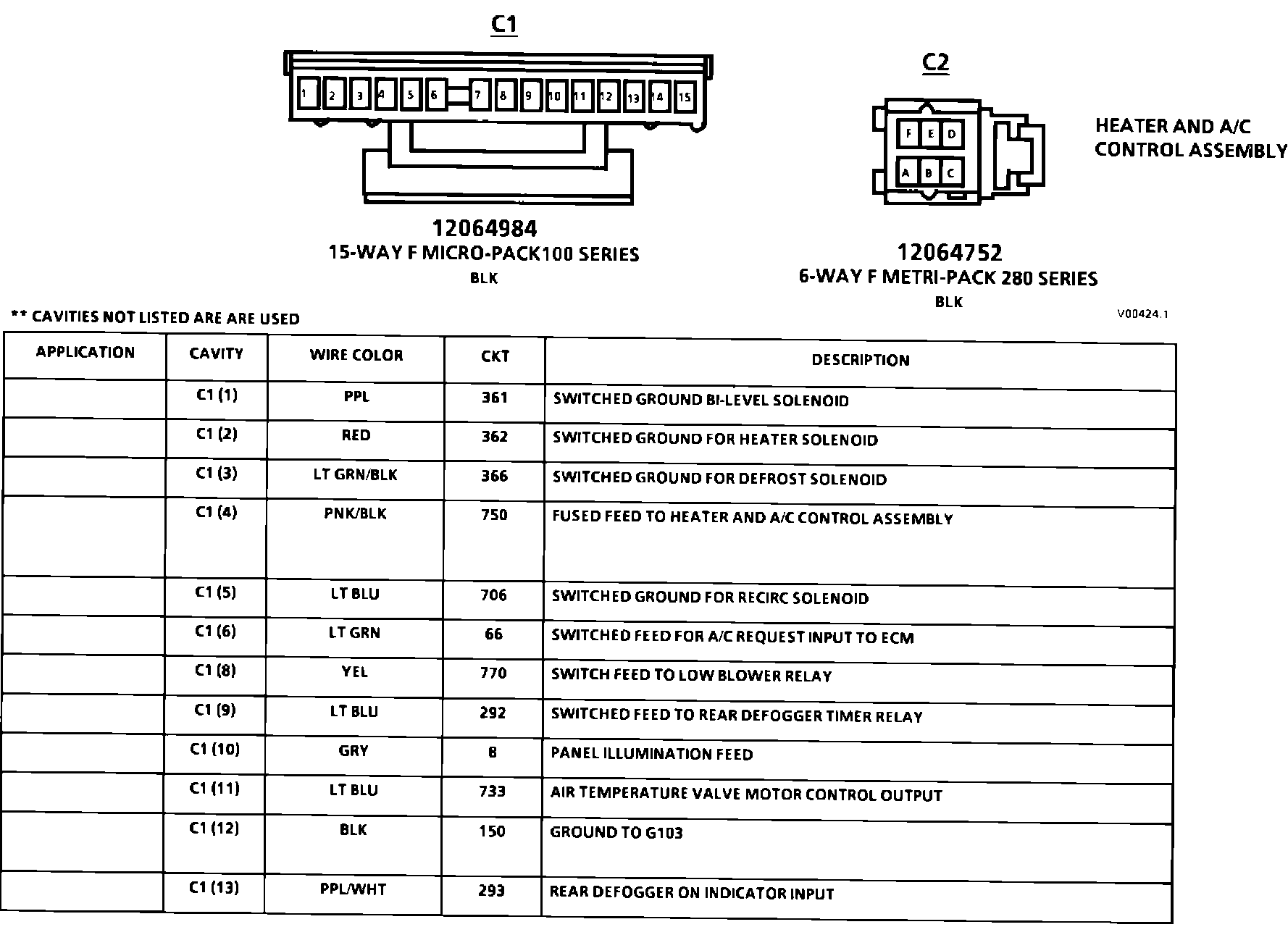

Heater And A/C Control Assembly Connector Face:
Heater And A/C Control Assembly Connector Face:
