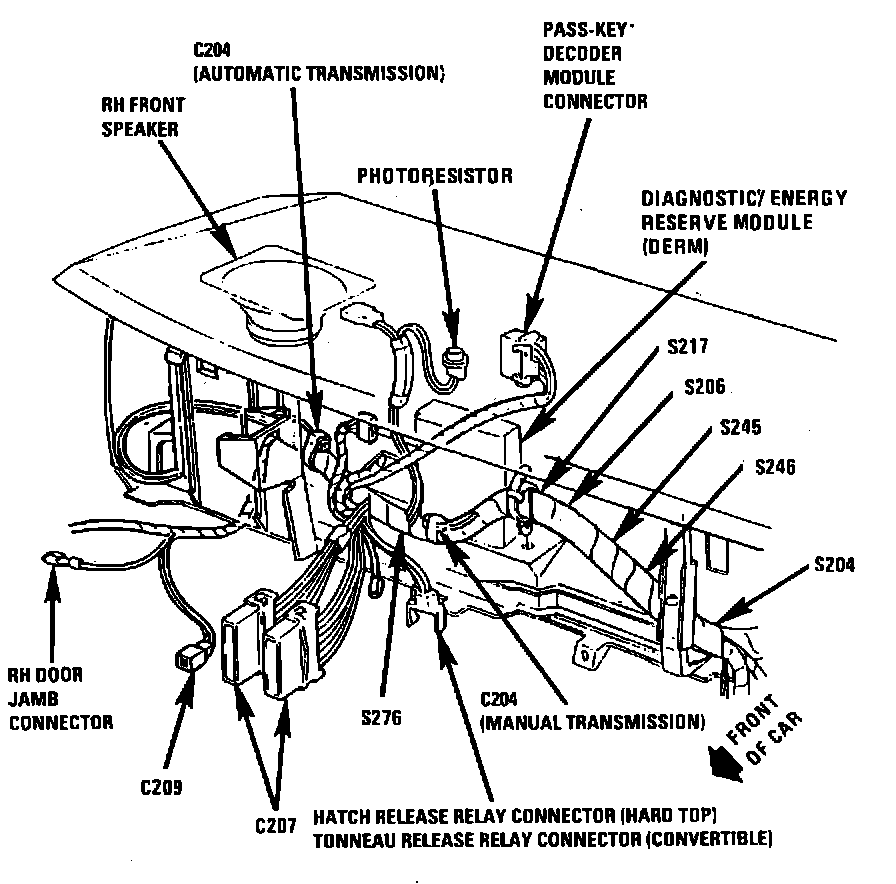

Diagnostic/Energy Reserve Module (DERM)
Behind RH Side Of I/P:
Behind RH Side Of I/P
Applicable to: Firebird
