Electronic/Powertrain Control Module (ECM/PCM)

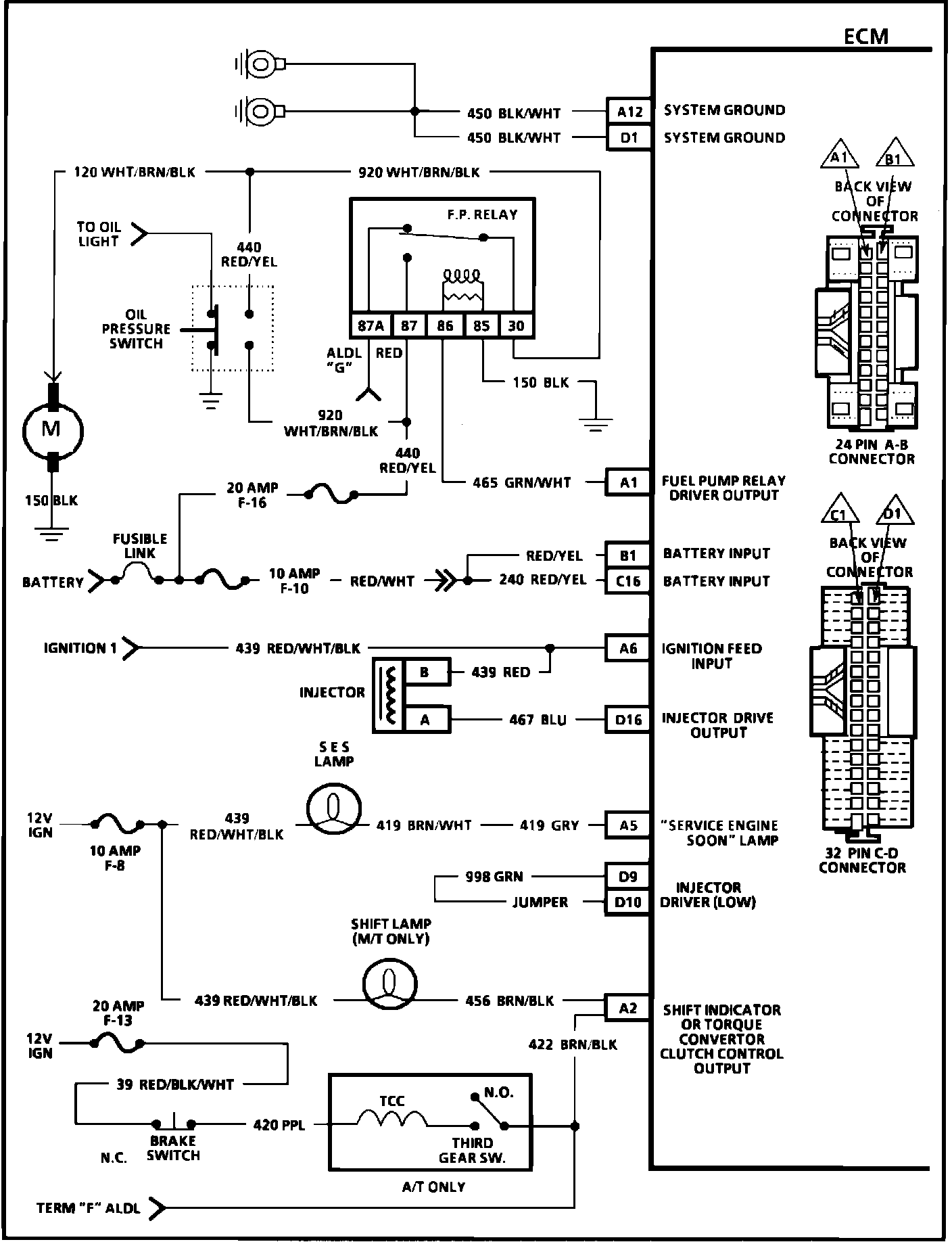

Driveability And Emissions:

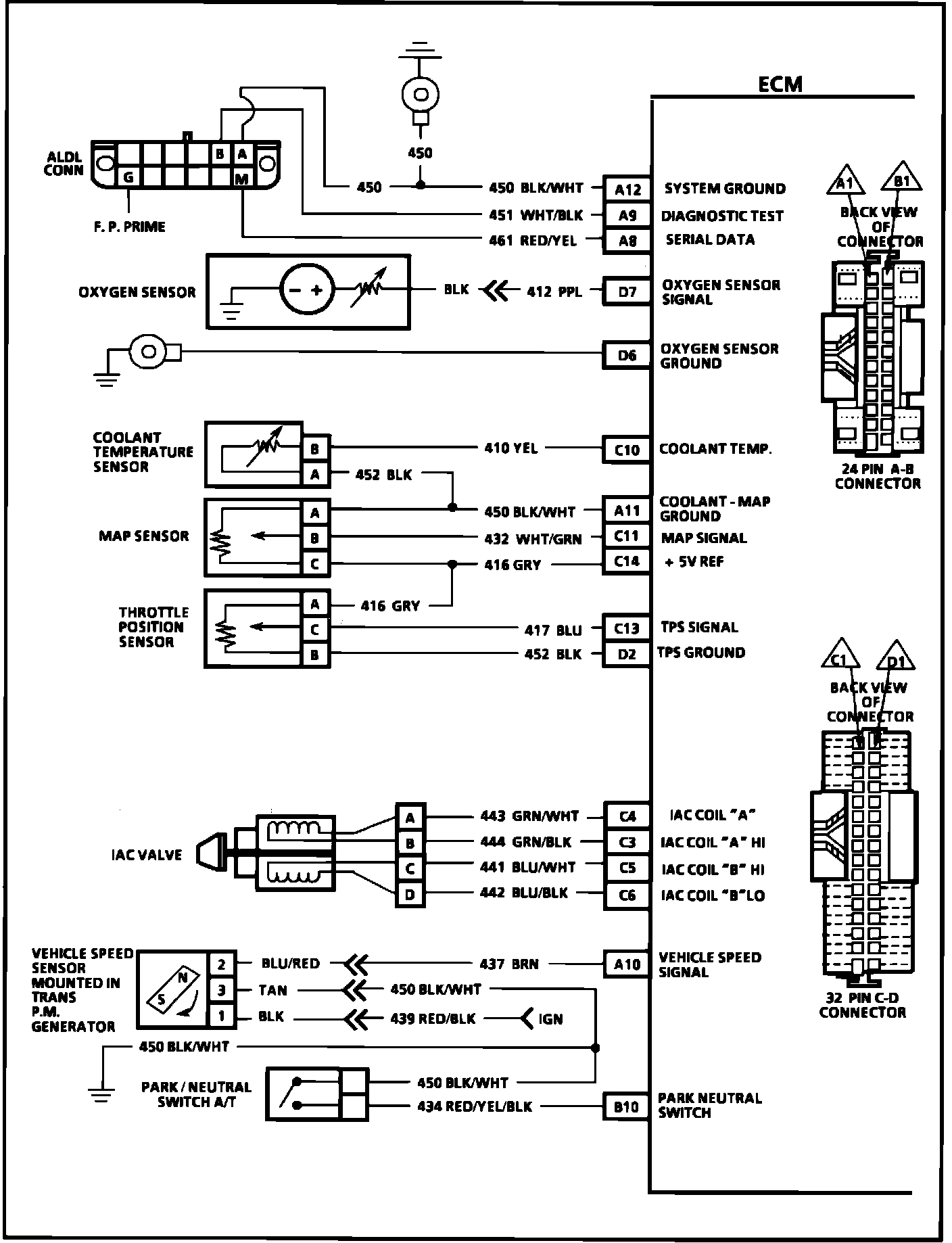

Driveability And Emissions:

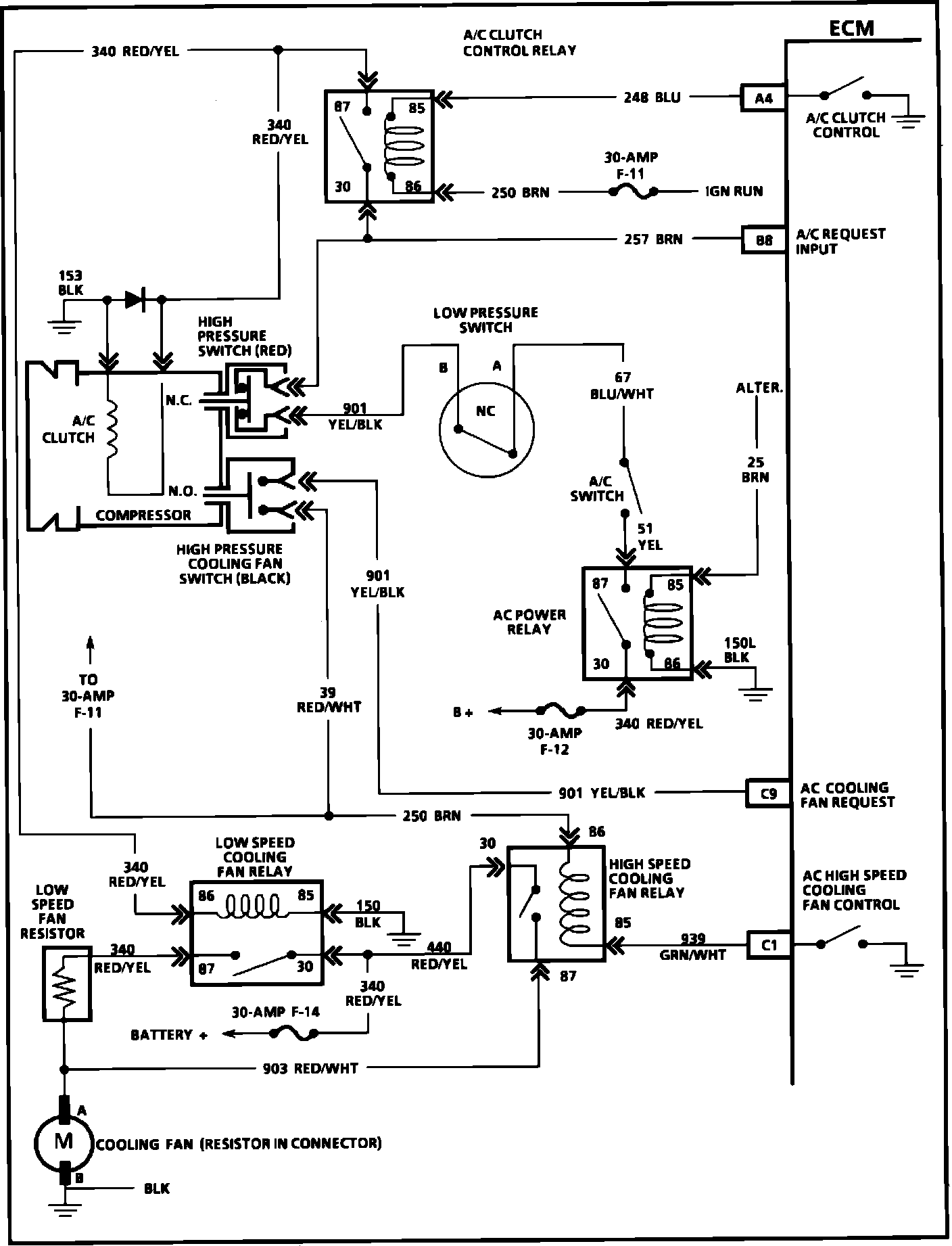

Driveability And Emissions:



ECM Wiring Diagram (4 of 4):
