Window Guide Cam: Installation

  1. Install window guide cam (34) through rear access hole.
  2. Window guide cam (34) to window regulator cam and door inner panel.
  3. Install bolts (36) retaining window guide cam (34) to door inner panel.
  4. Install the water deflector. See WATER DEFLECTOR  .

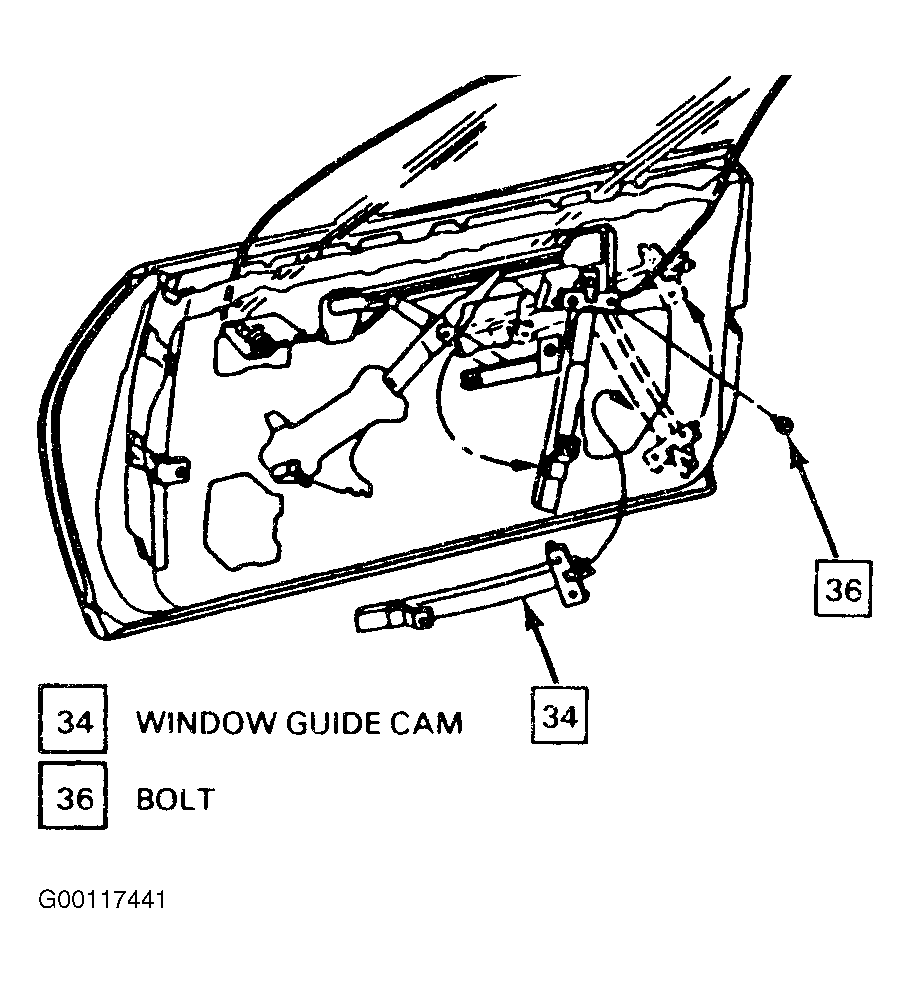

Fig 1: Installing Window Guide Cam
G00117441Courtesy of GENERAL MOTORS CORP.
