Test A: Window Power & Ground

For test procedure, refer to illustration. See Fig 1 .

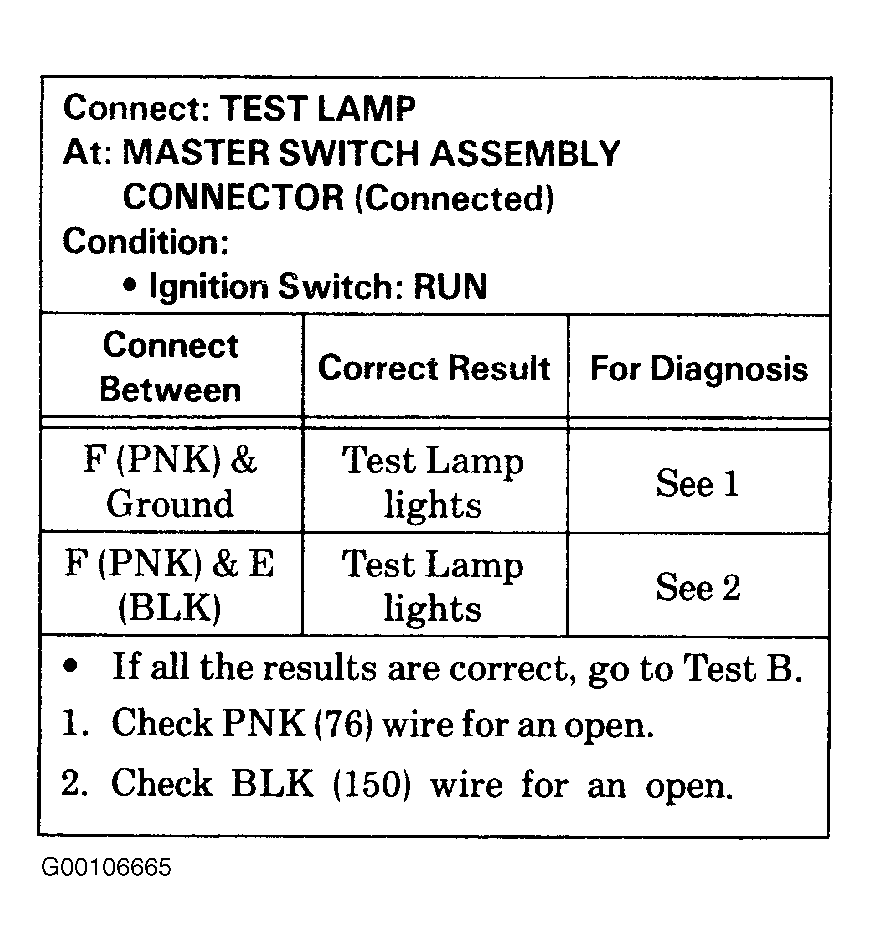

Fig 1: Test A: Window Power & Ground
G00106665Courtesy of GENERAL MOTORS CORP.
