Electronic Control Module (ECM)

RH Front Of Engine Compartment:




Engine Compartment, Front Of RH Strut Tower

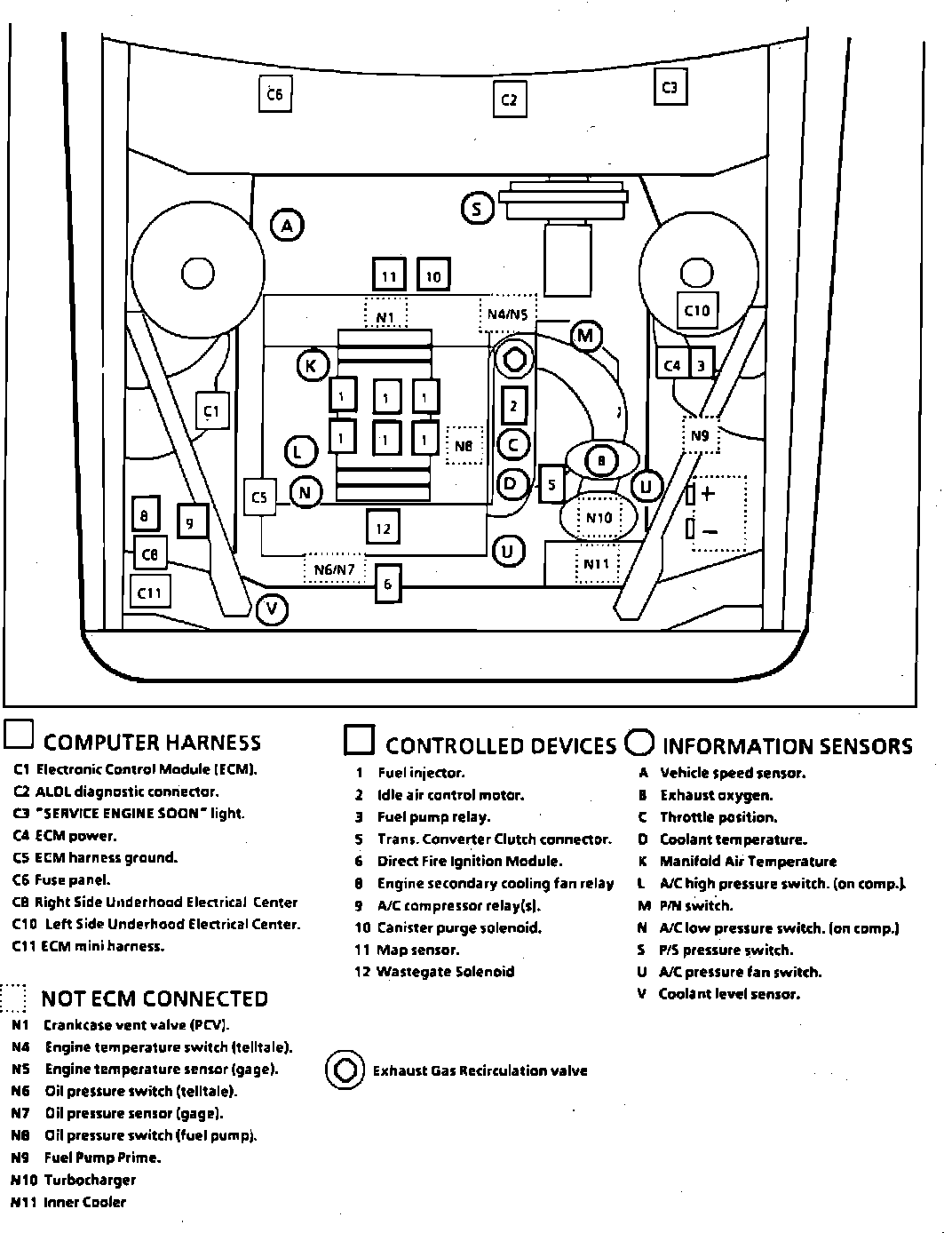

Engine Compartment Components.:






RH Side Of Engine Compartment
