Alternator Replacement

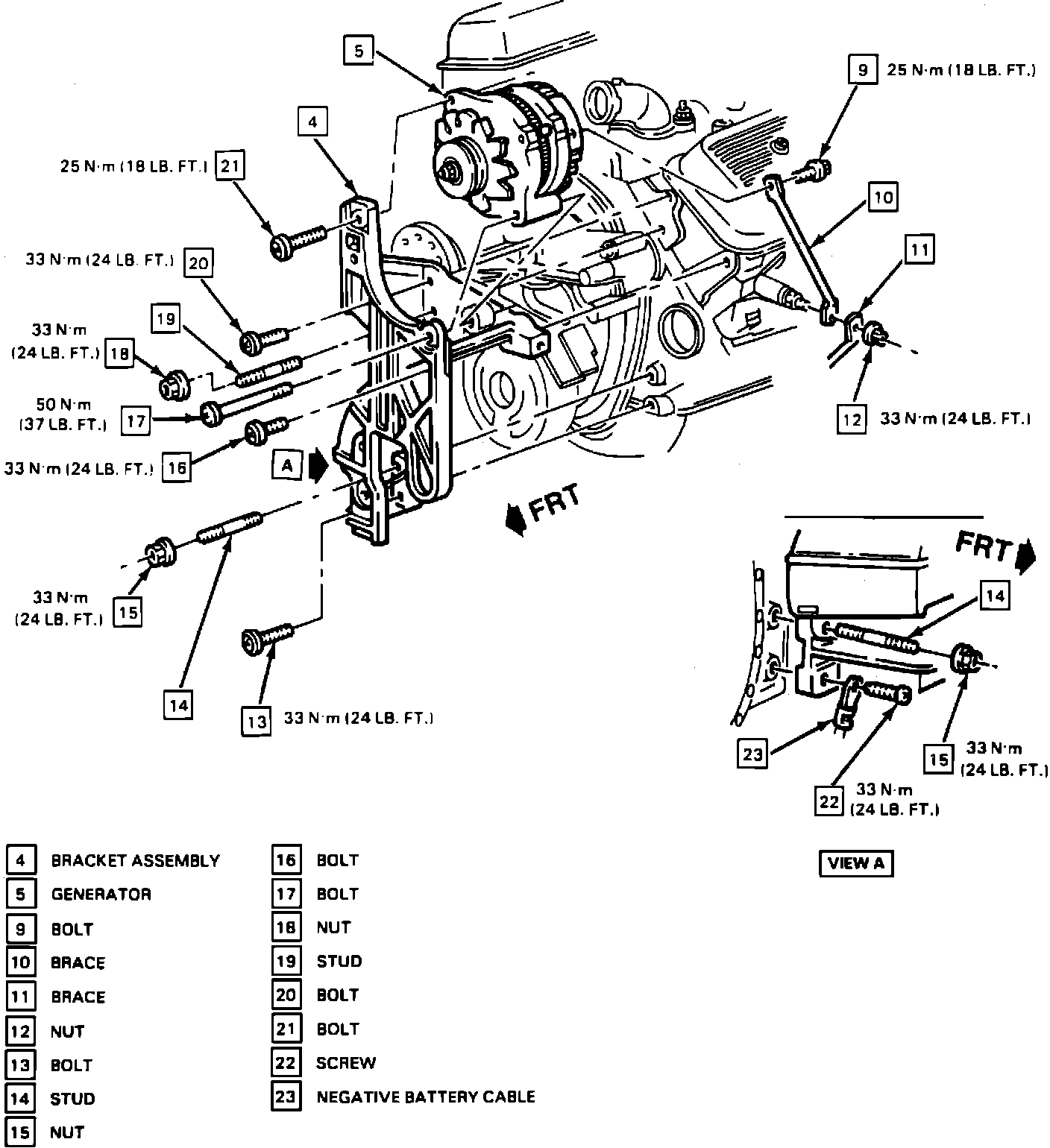

Fig. 3 Alternator Replacement. V6 Engines:

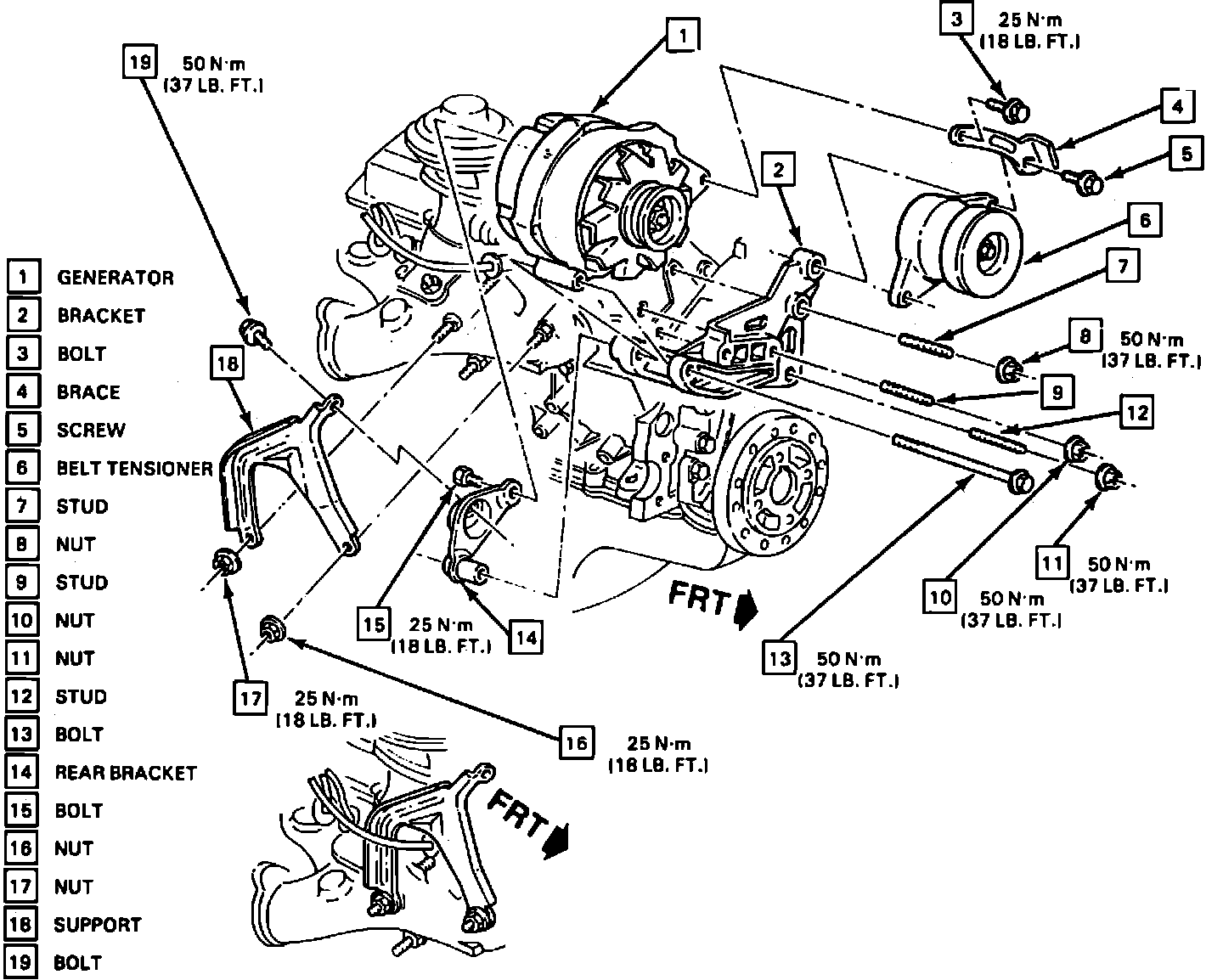

Fig. 4 Alternator Replacement. V8 Engines:






Disconnect battery ground cable. Refer to Figs. 3 and 4 for alternator replacement.
