System Specifications

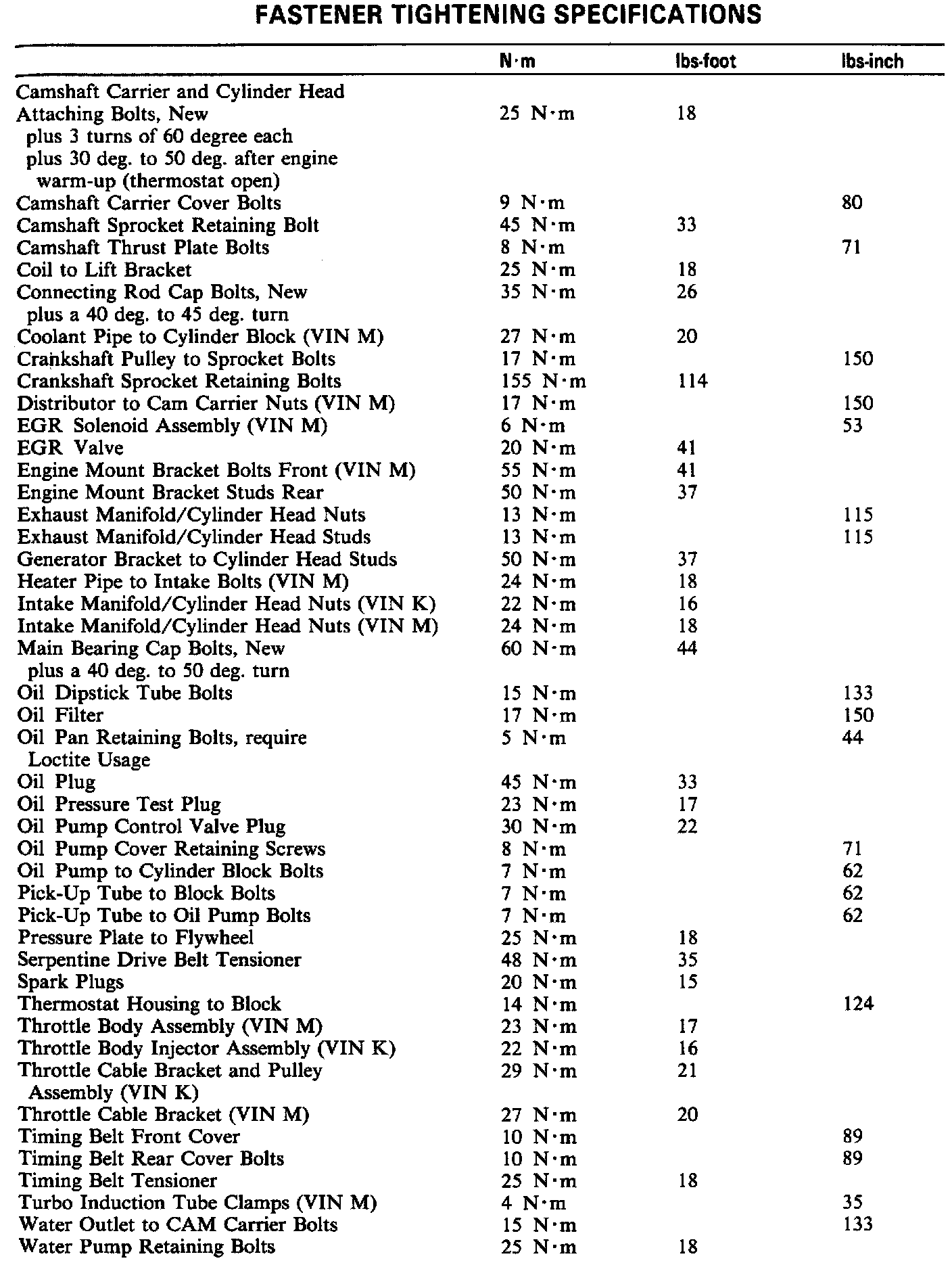

Torque Specifications:

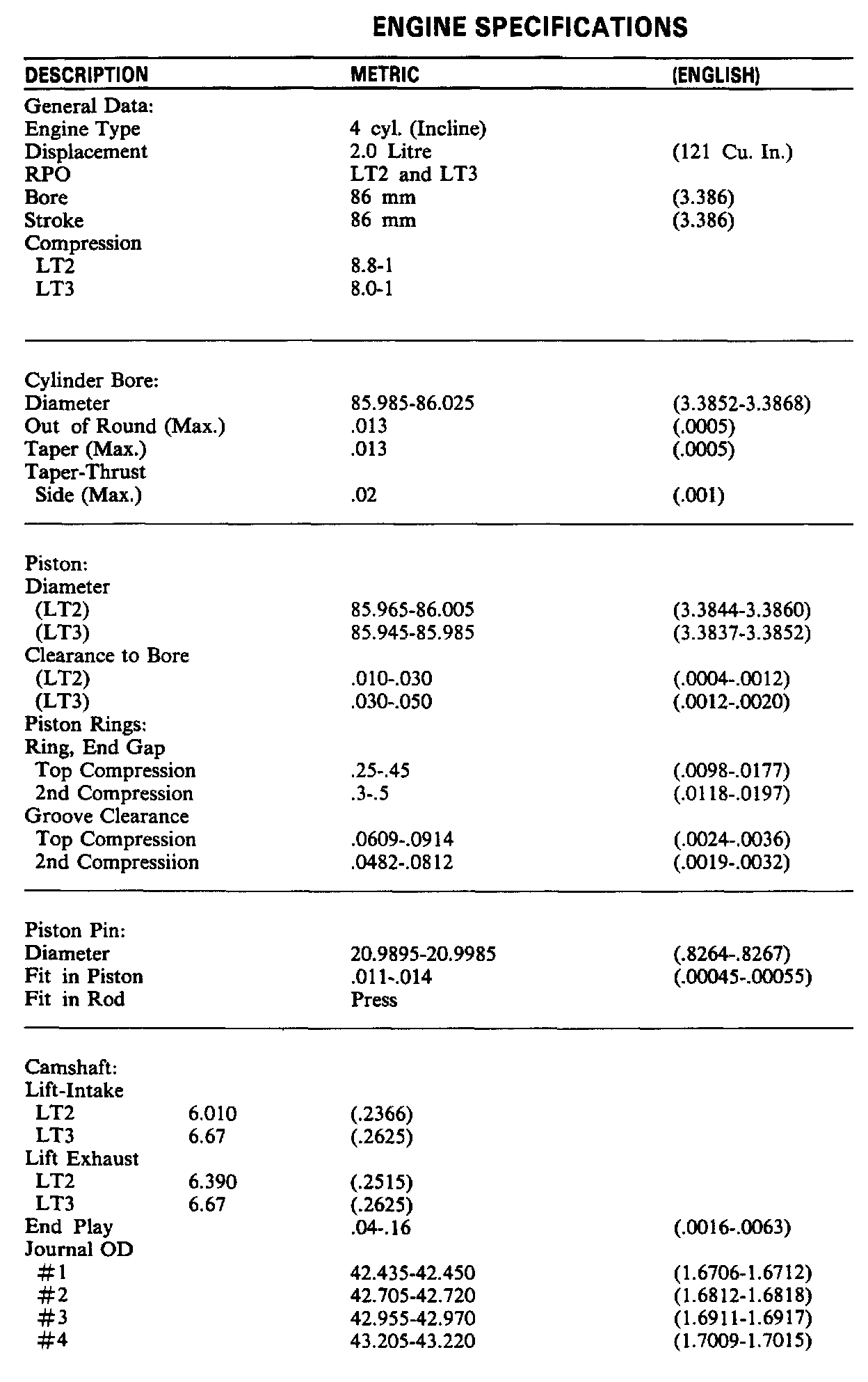

Engine Specifications:

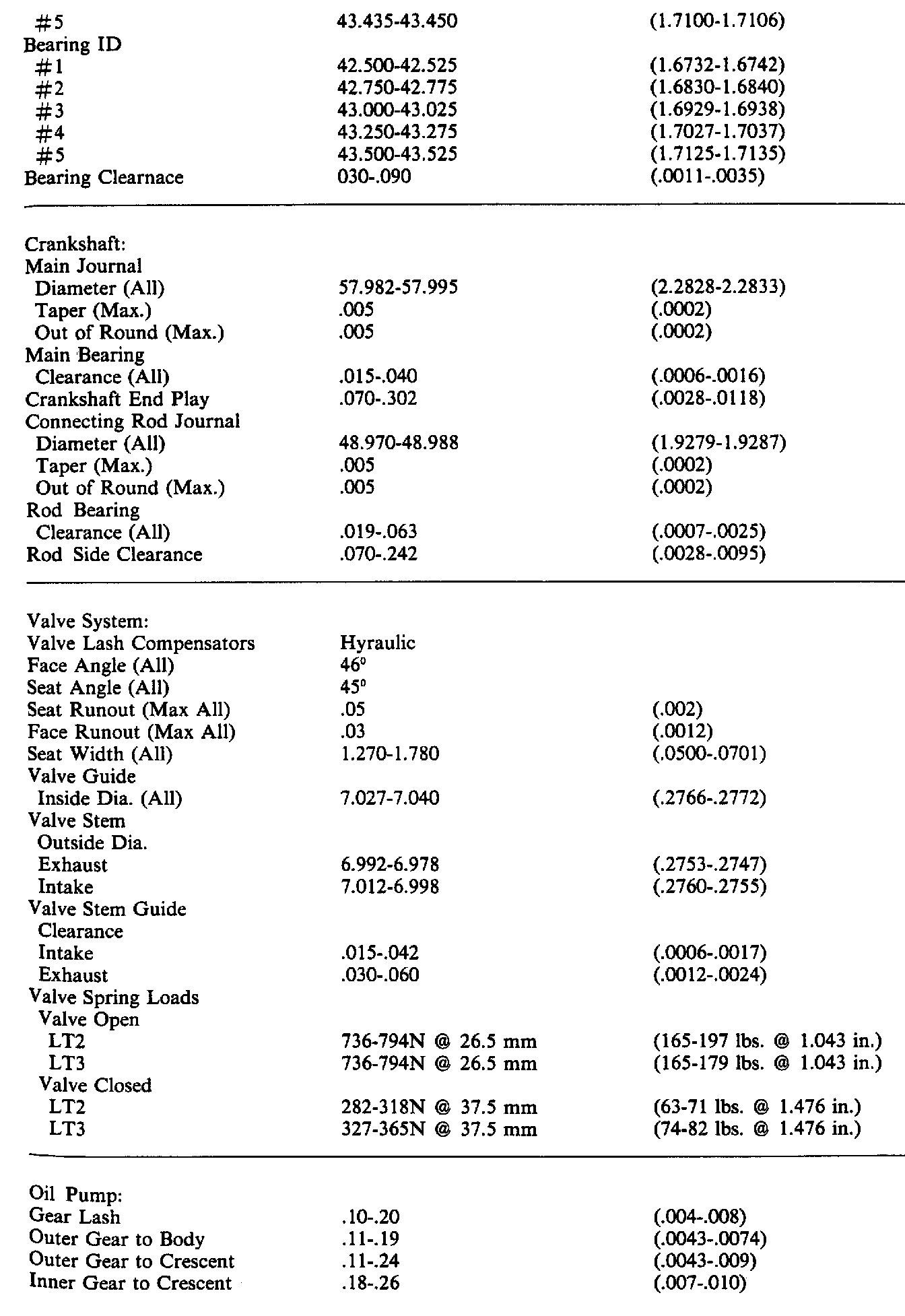

Continued Engine Specifications:




Continued Engine Specifications:






Intake Manifold Sequence (VIN K):





Cylinder Head Sequence:
