System Specifications

Torque Specifications:

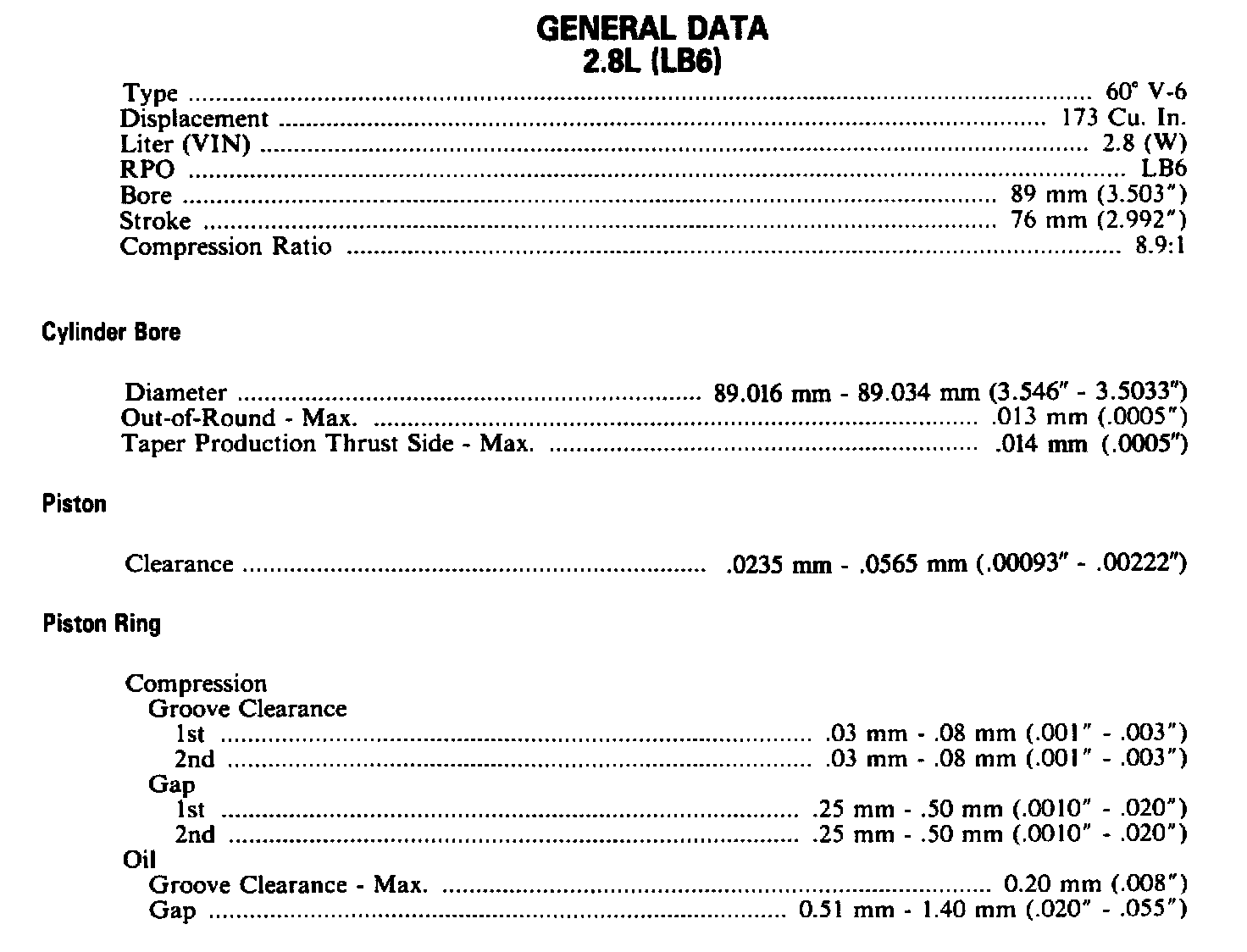

Engine Specifications (2.8L):

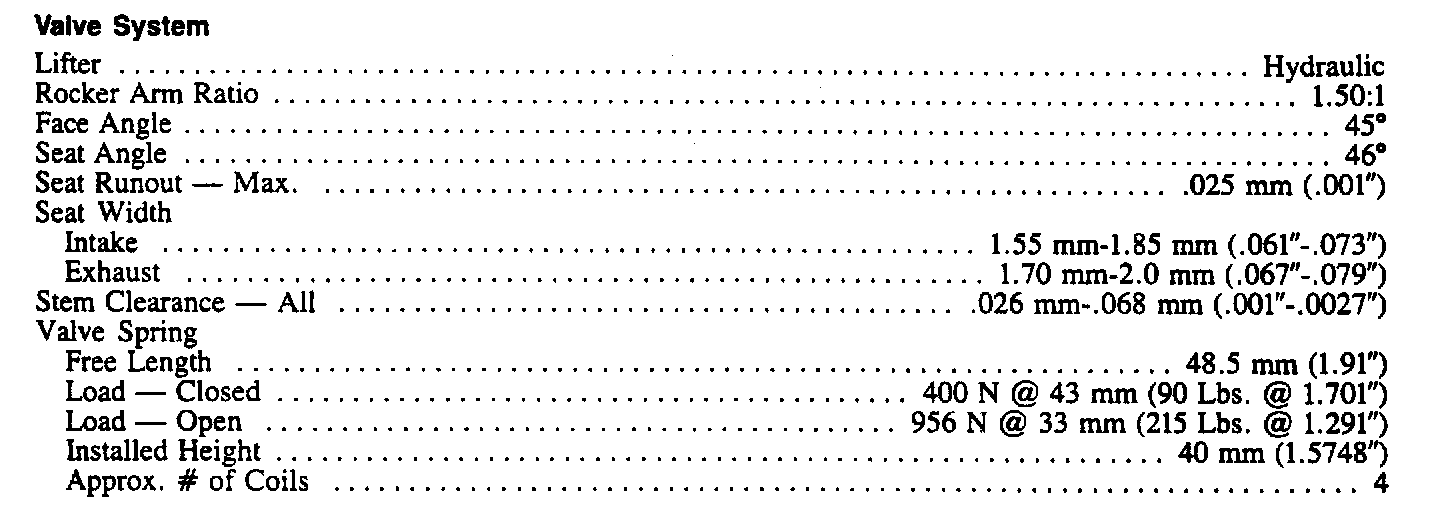

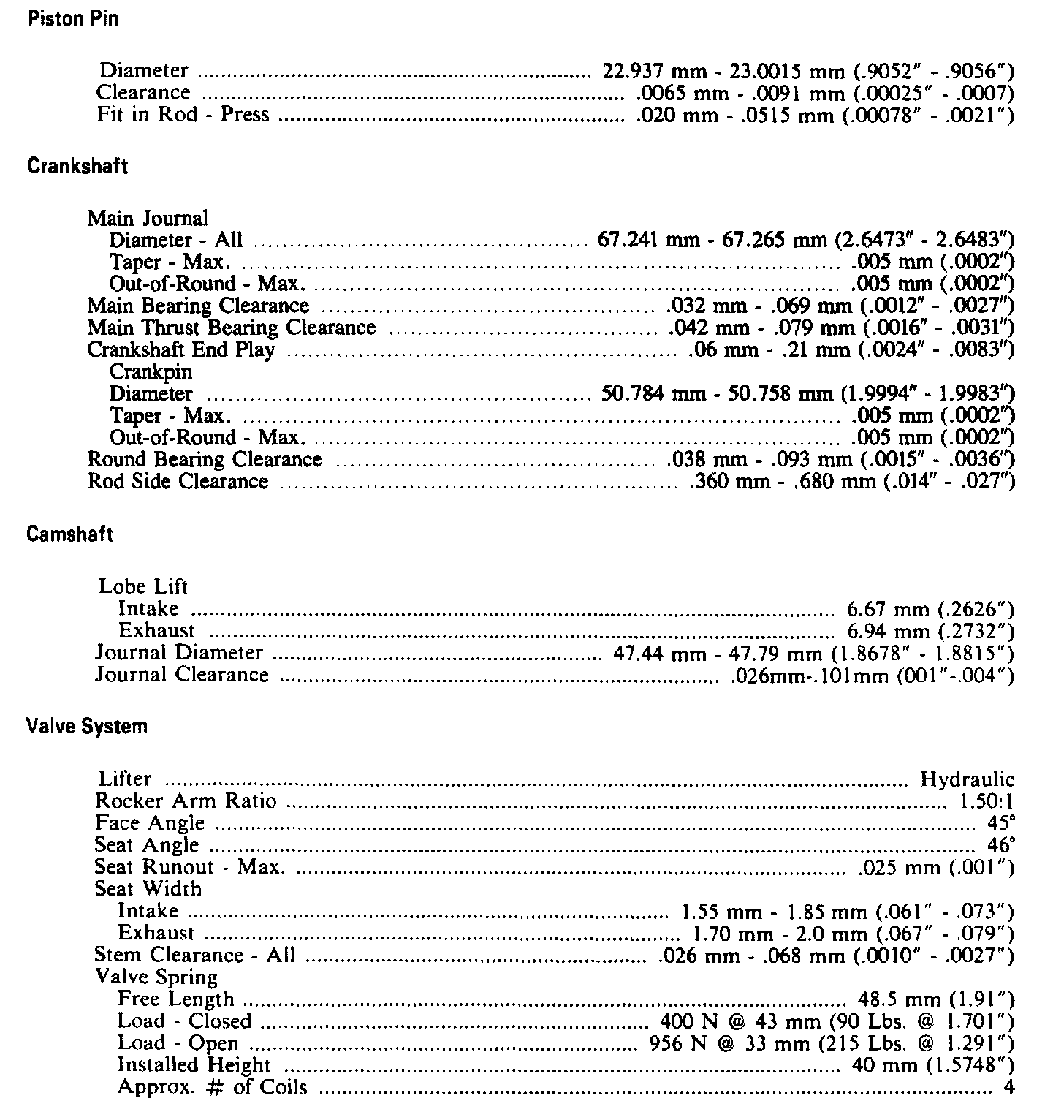

Continued Engine Specifications:

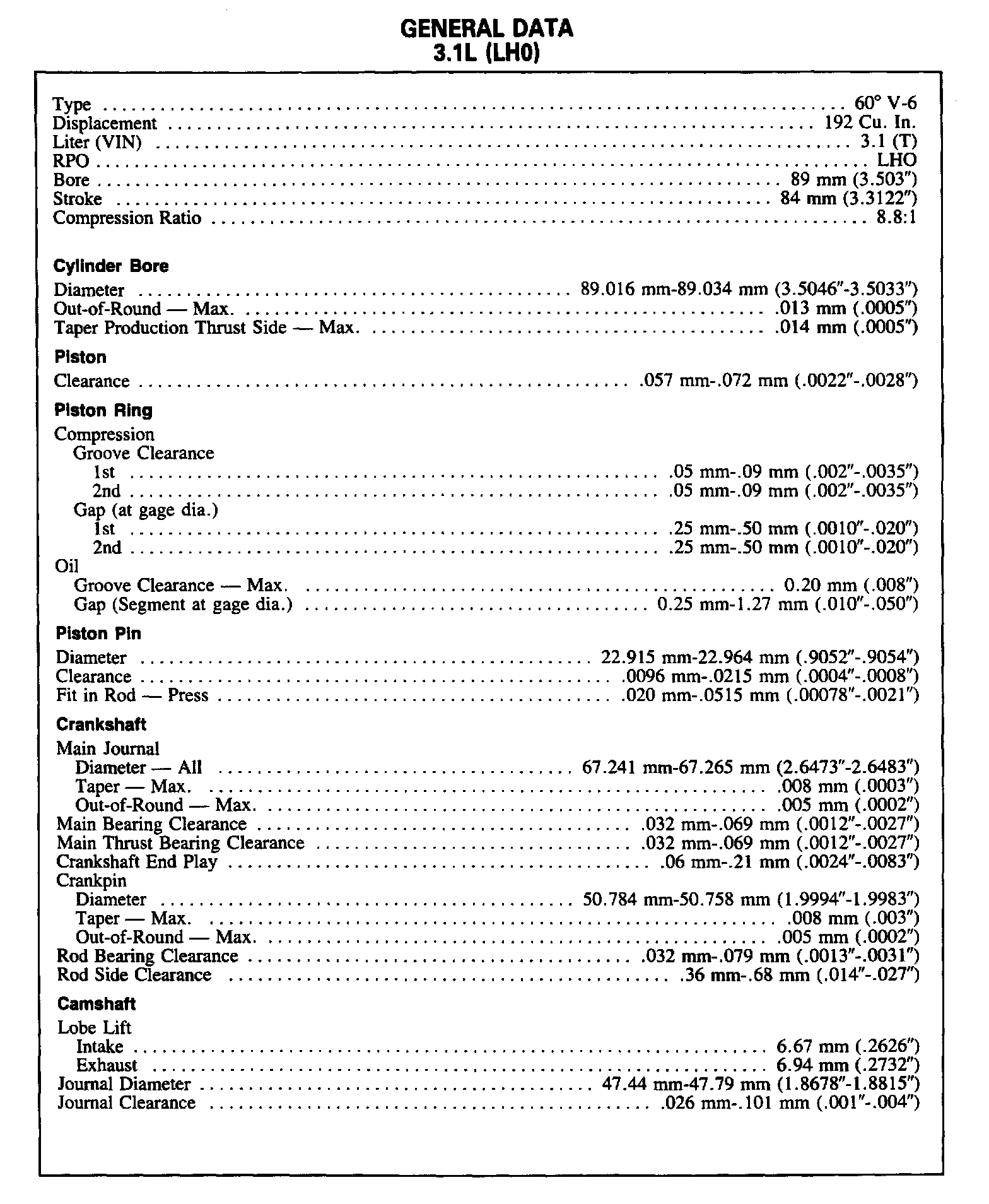

Engine Specifications (3.1L):




Continued Engine Specifications (3.1L):






Intake Manifold Sequence:





Cylinder Head Sequence:
