Electronic/Powertrain Control Module (ECM/PCM)

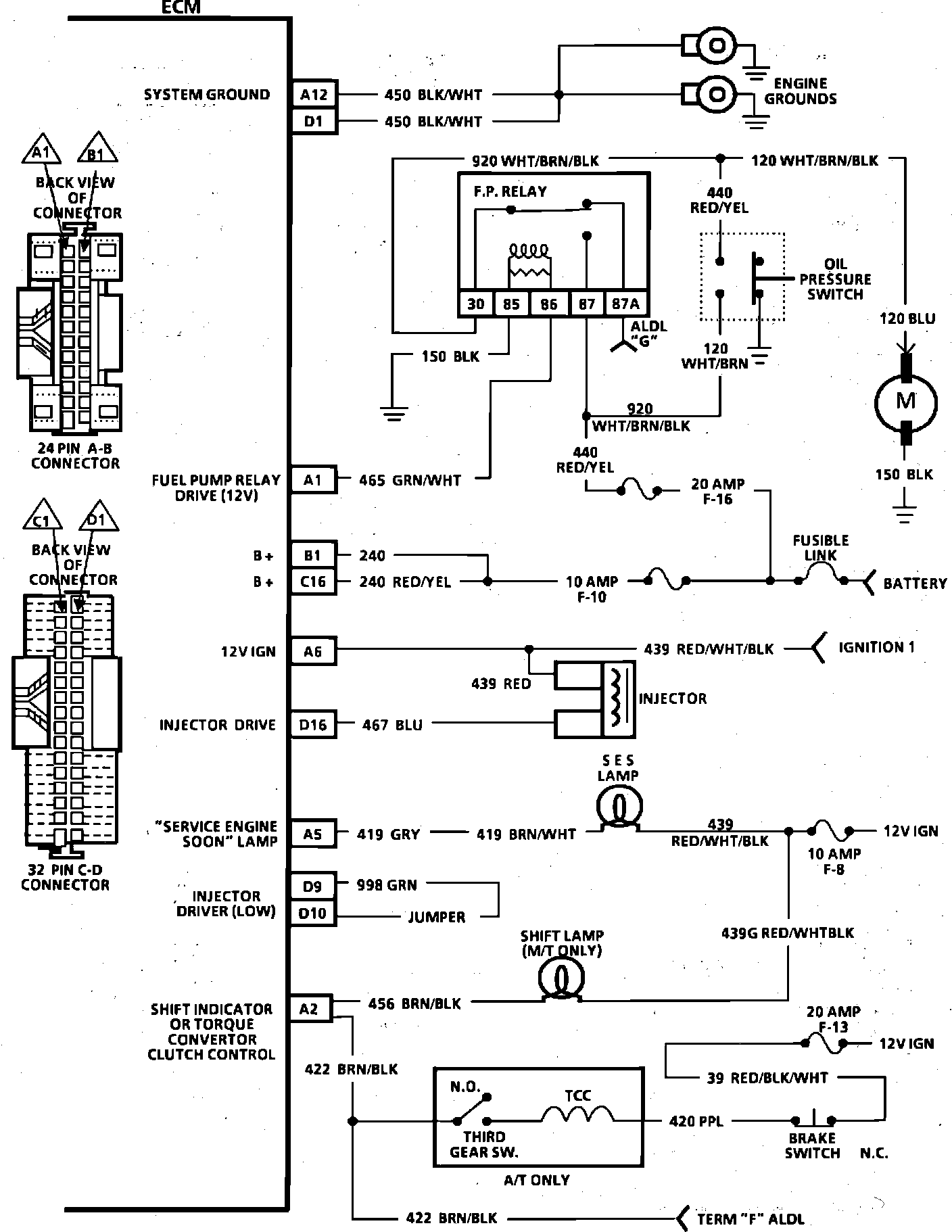

Fig. 4a ECM wiring circuit (Part 1 of 4):

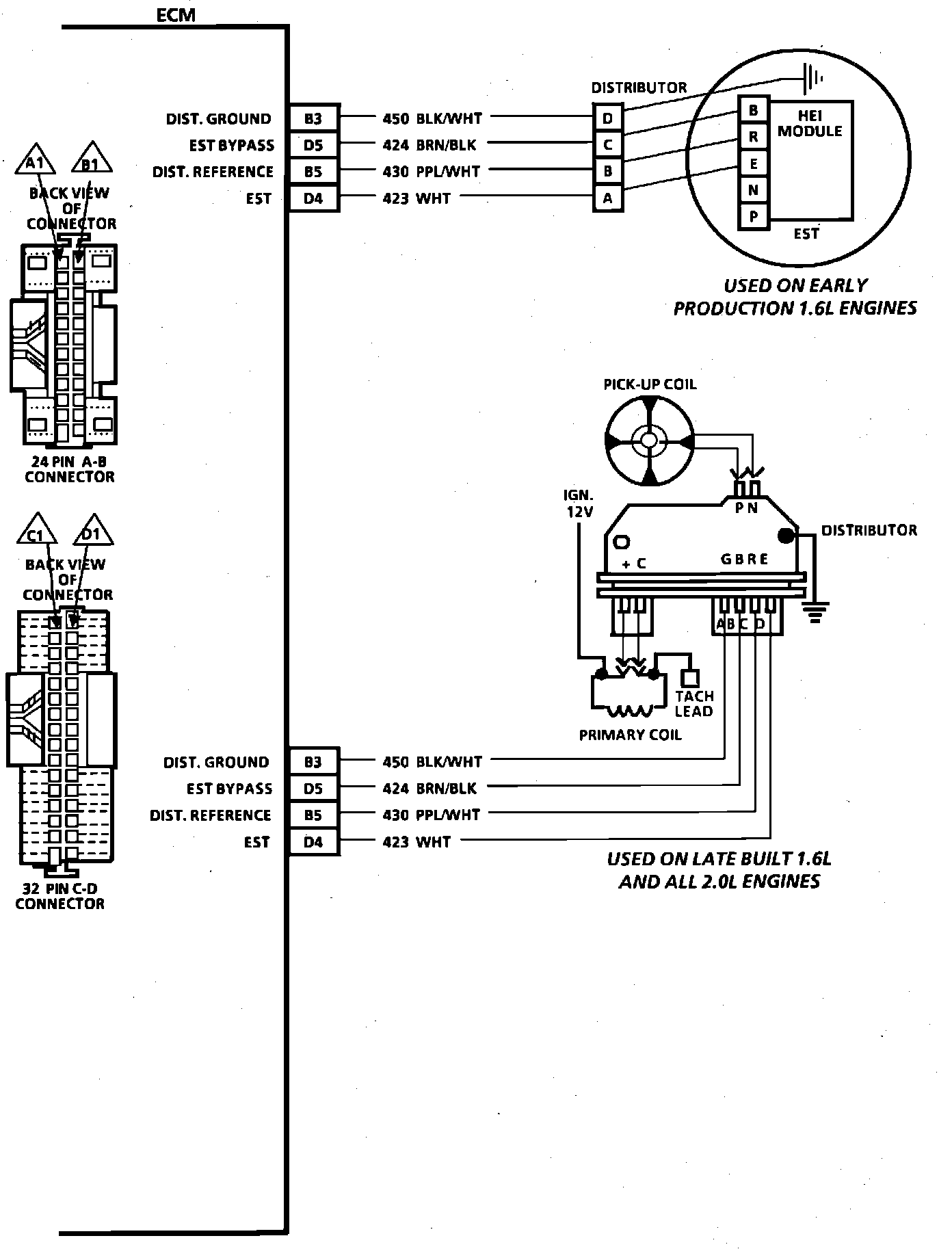

Electronic Control Module:

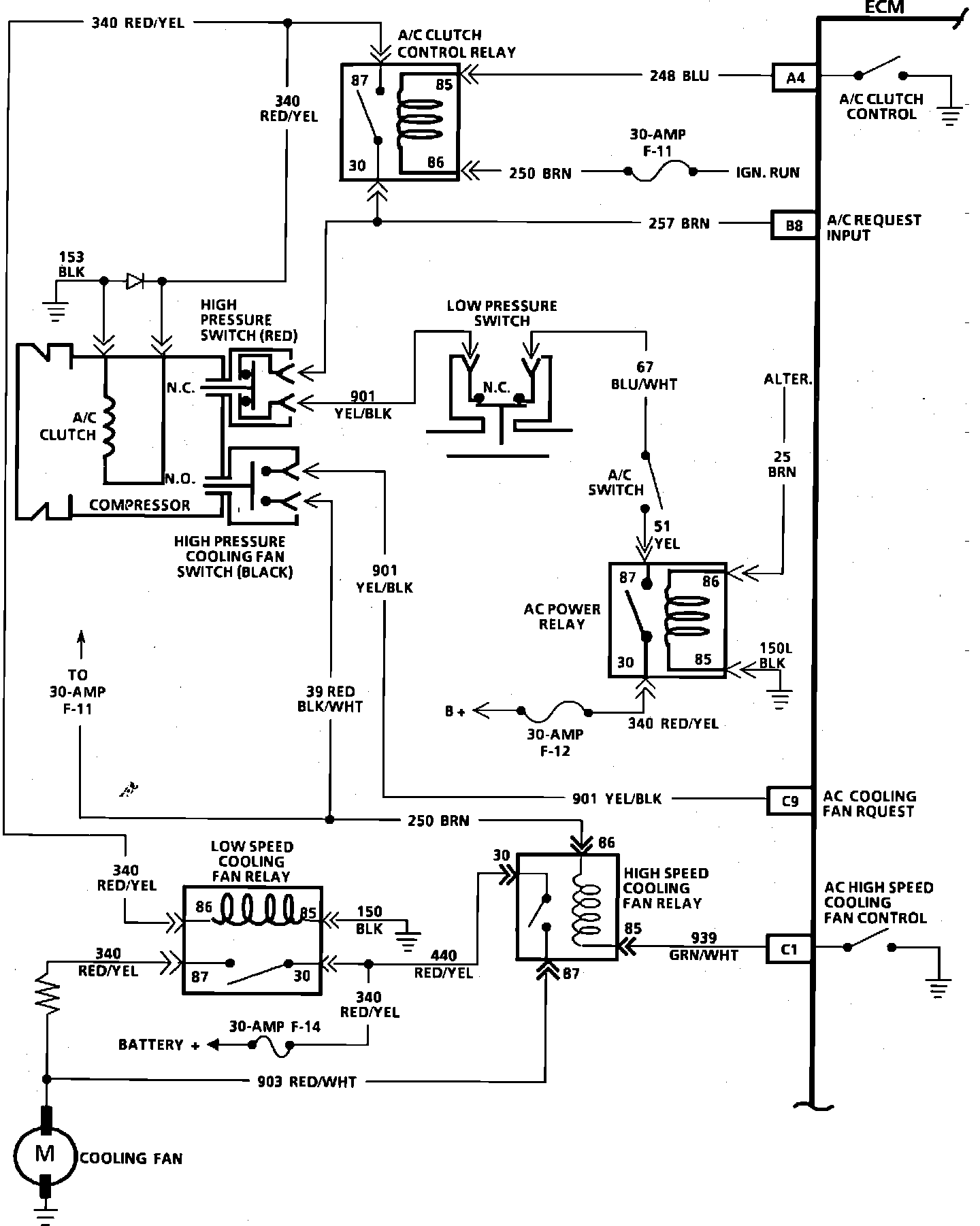

Electronic Control Module:

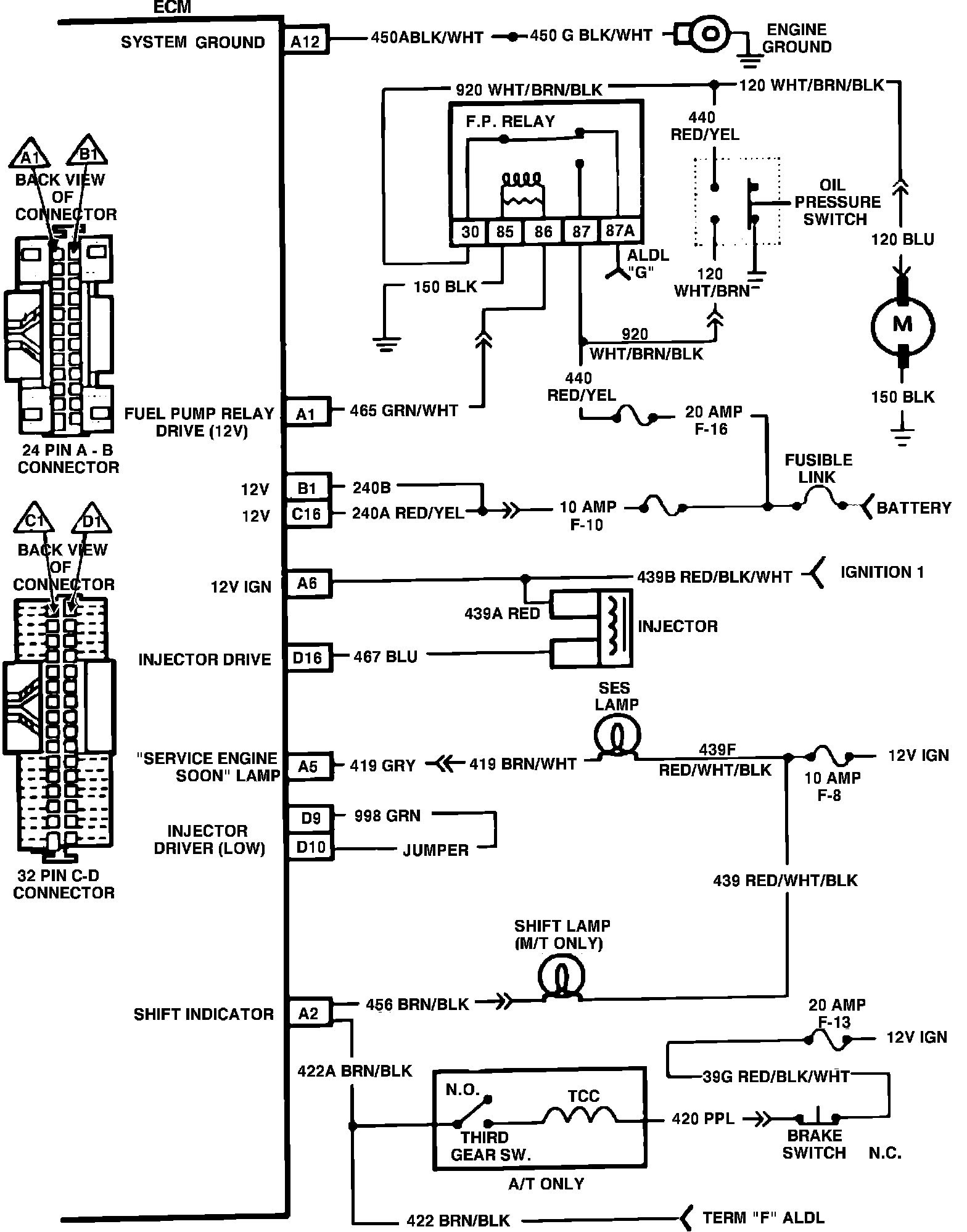

Electronic Control Module:

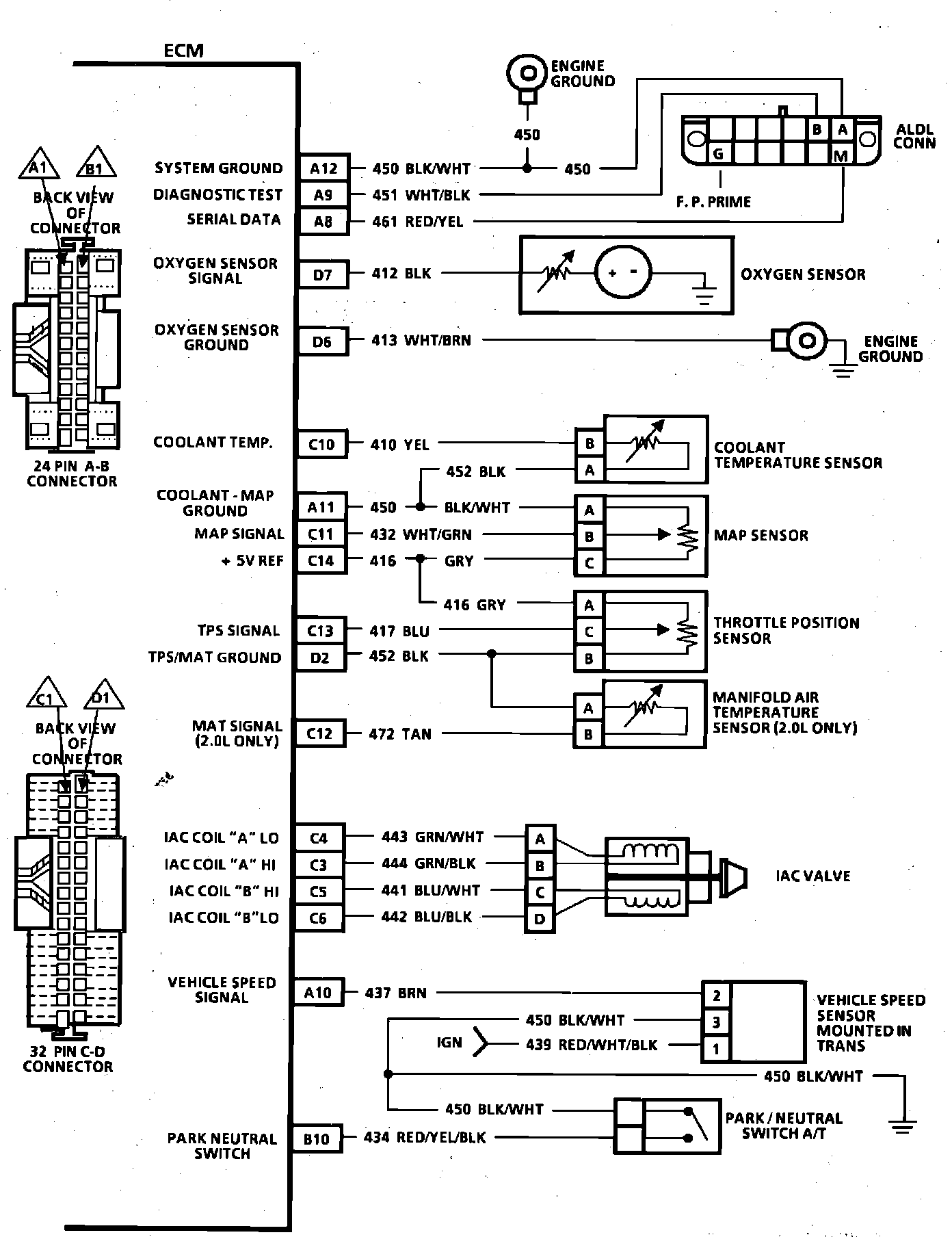

Electronic Control Module:
