Home >> Pontiac >> 1988 >> Grand Prix V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Electronic Control Module Mini-Harness
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

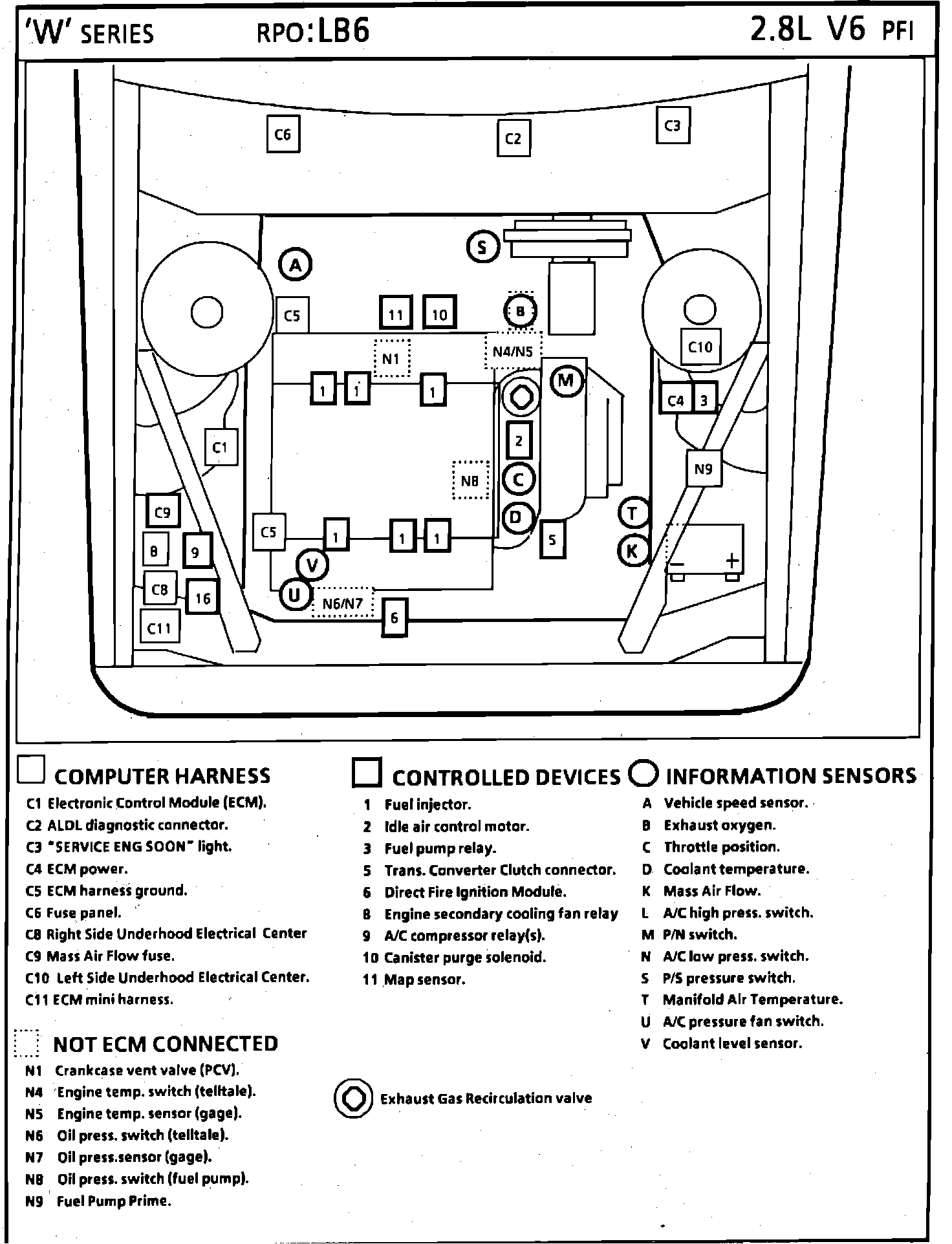

Electronic Control Module Mini-Harness

Underhood Components.:




Front RH Corner Of Engine Compartment

Applicable to: Cutlass Supreme & Grand Prix
