Engine Specifications

Torque Sequence:

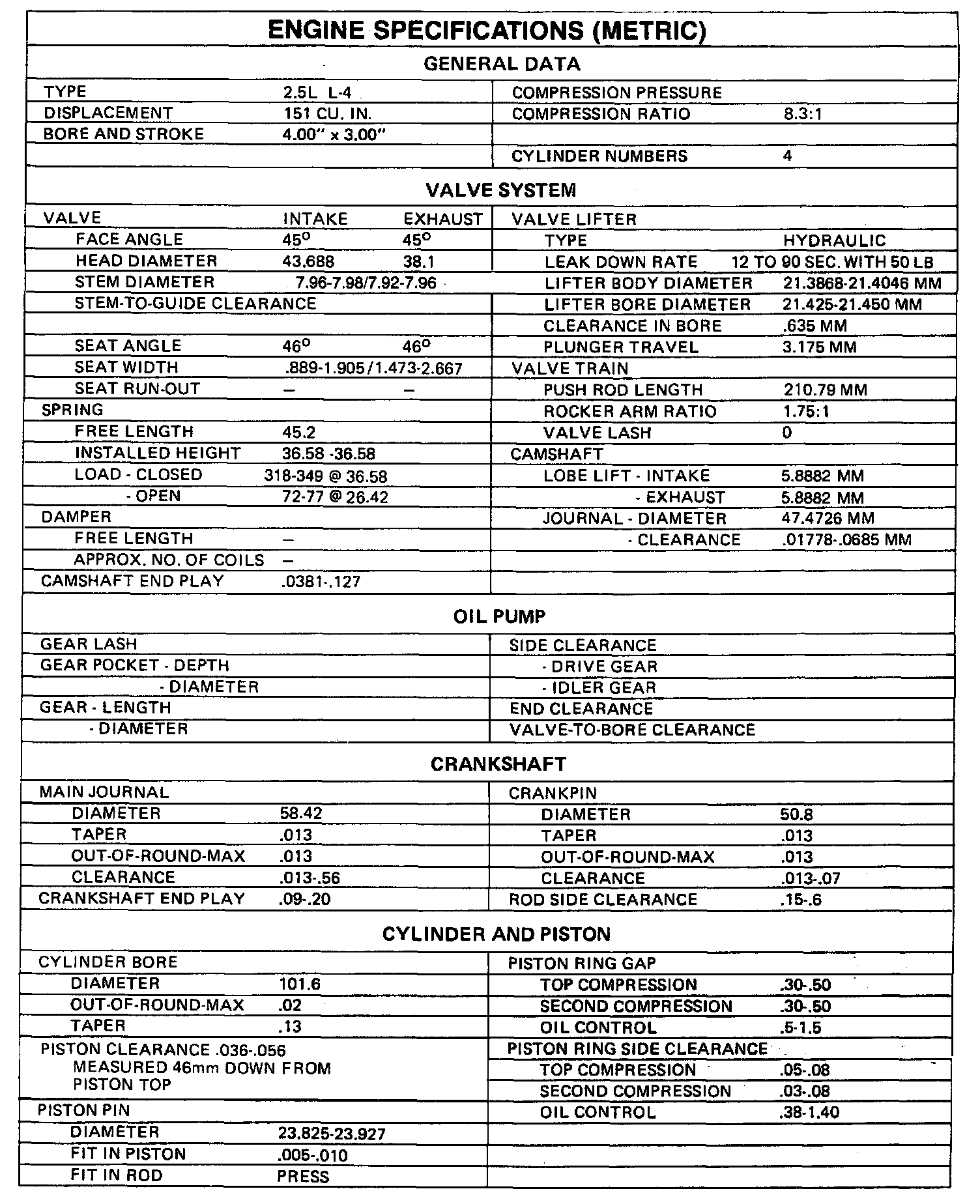

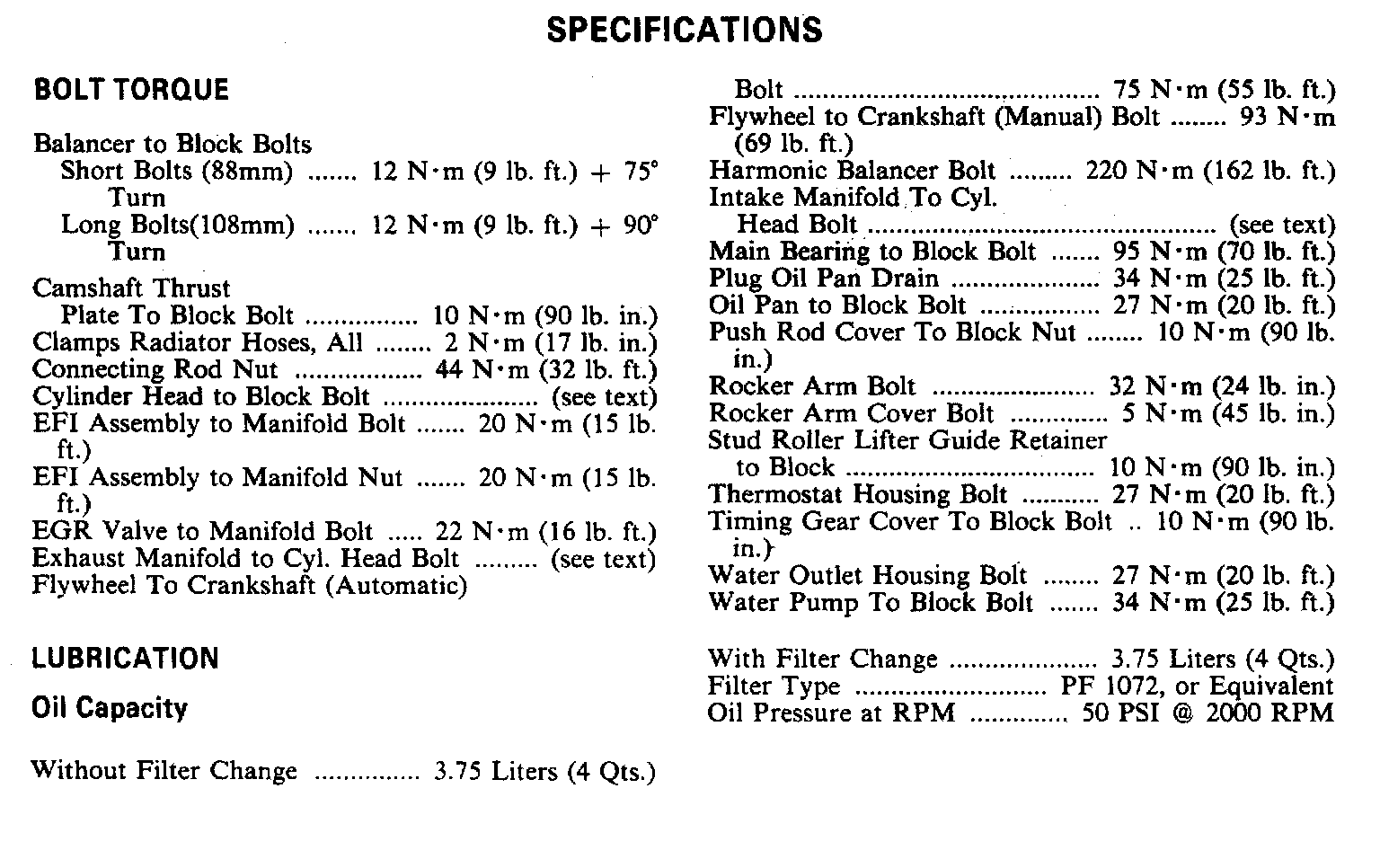

Engine Specifications:

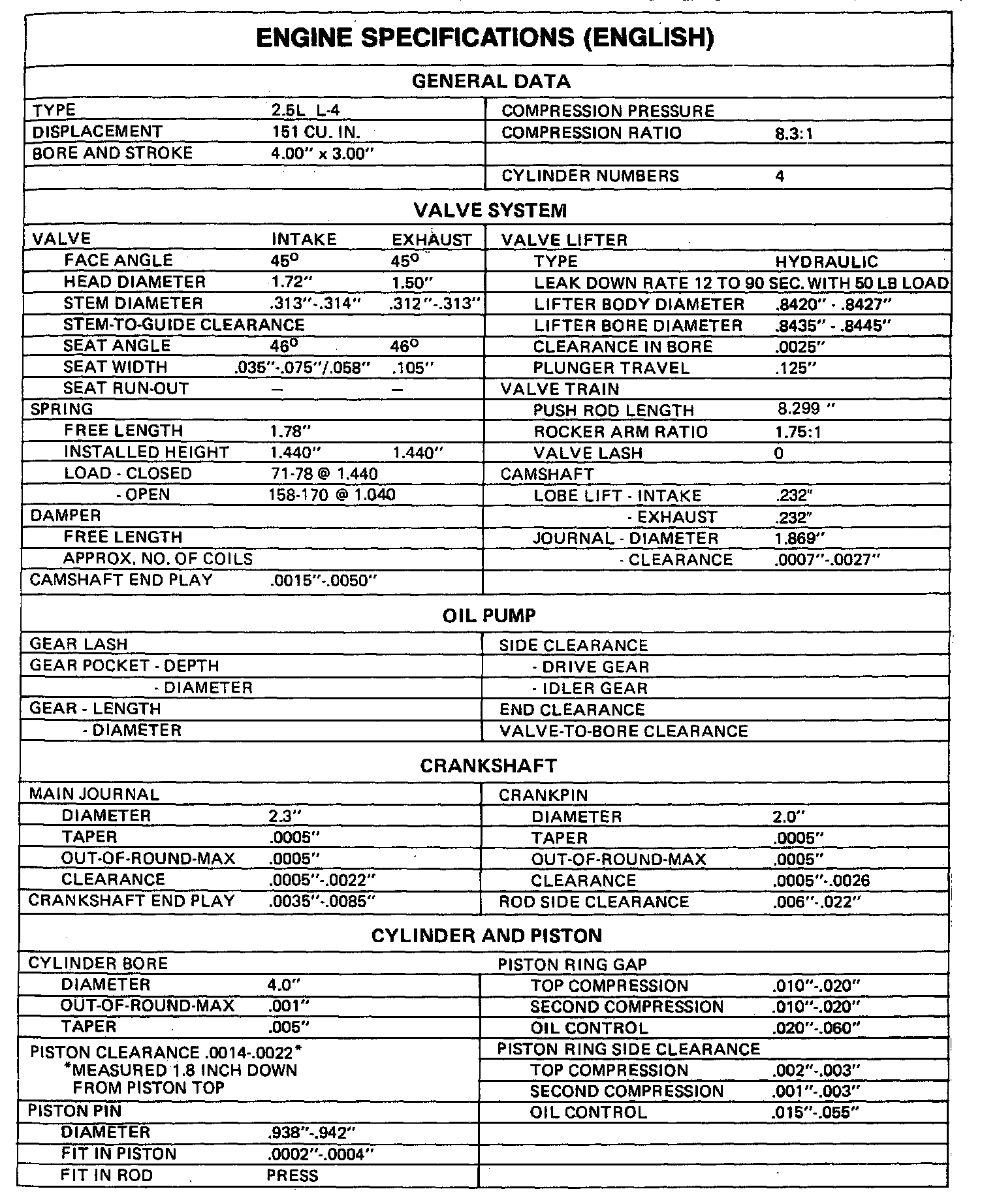

Engine Specifications (ENGLISH):

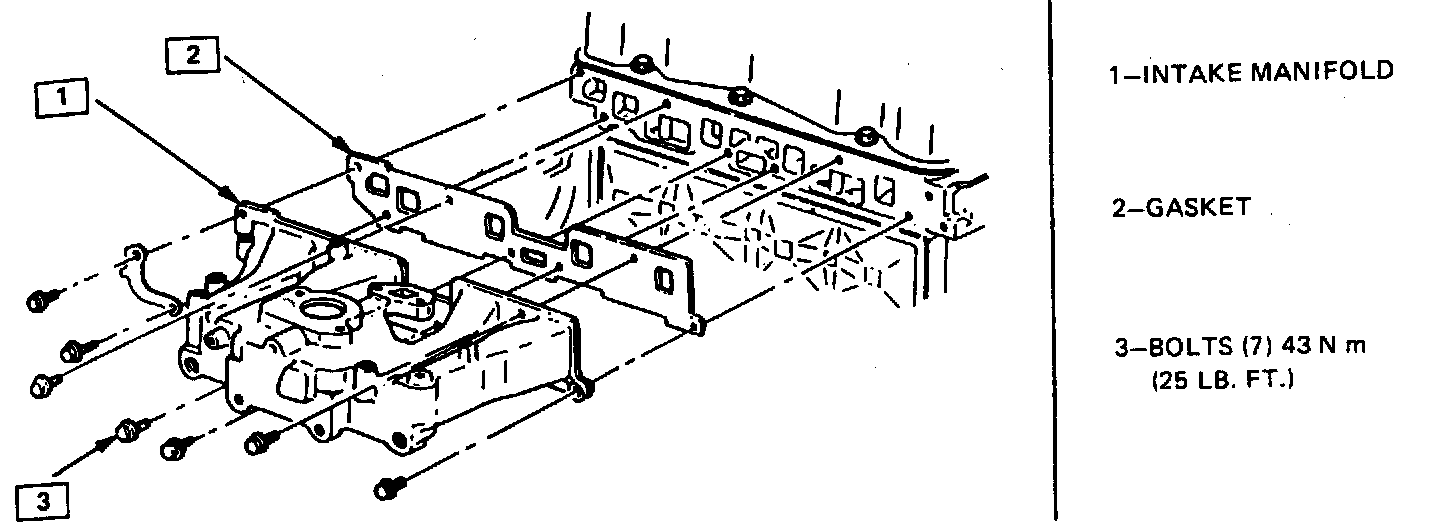

Intake Manifold Torque:

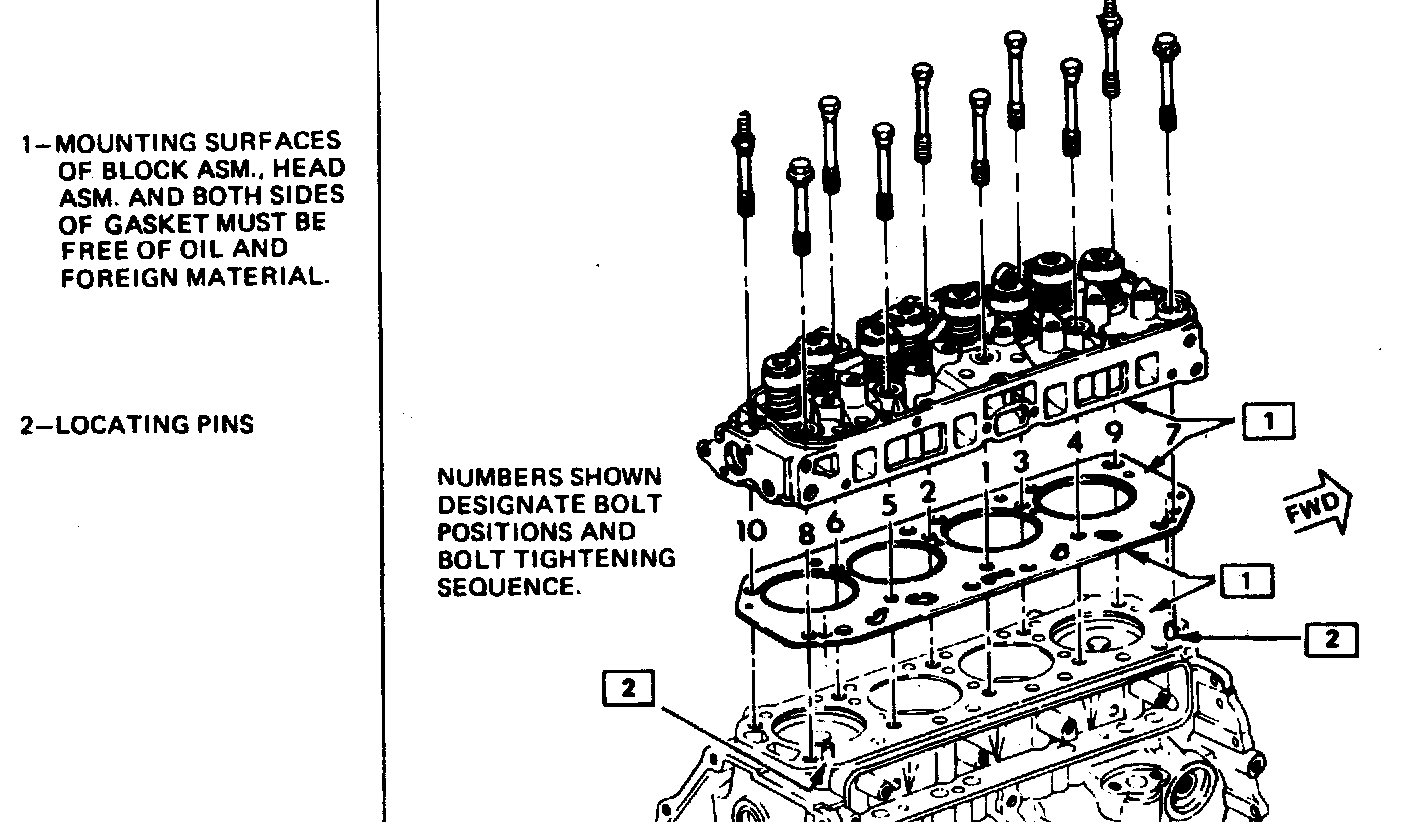

Cylinder Head Torque Sequence:
