Electronic/Powertrain Control Module (ECM/PCM)

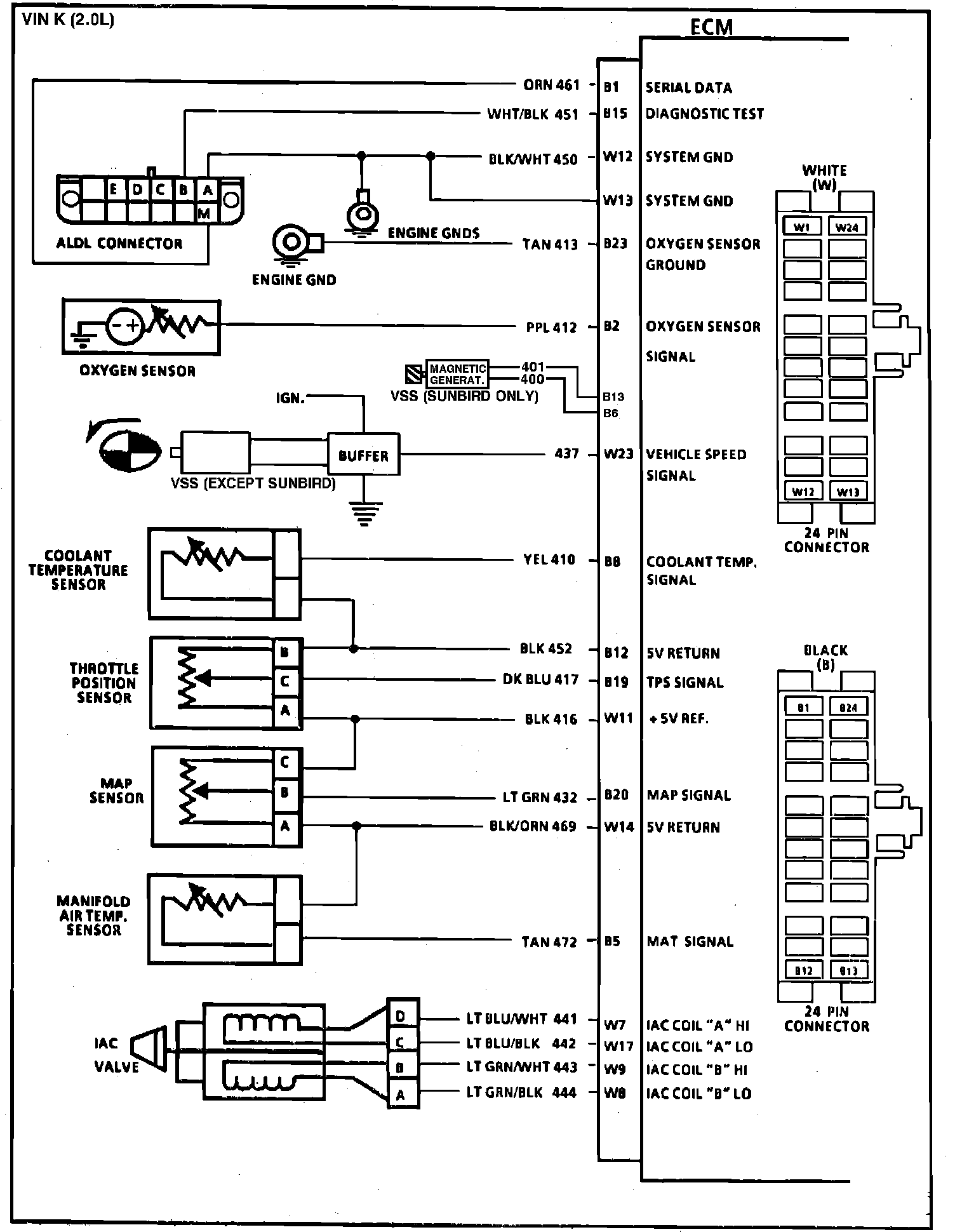

Fig. 056 ECM Wiring Diagrams (1 of 3):

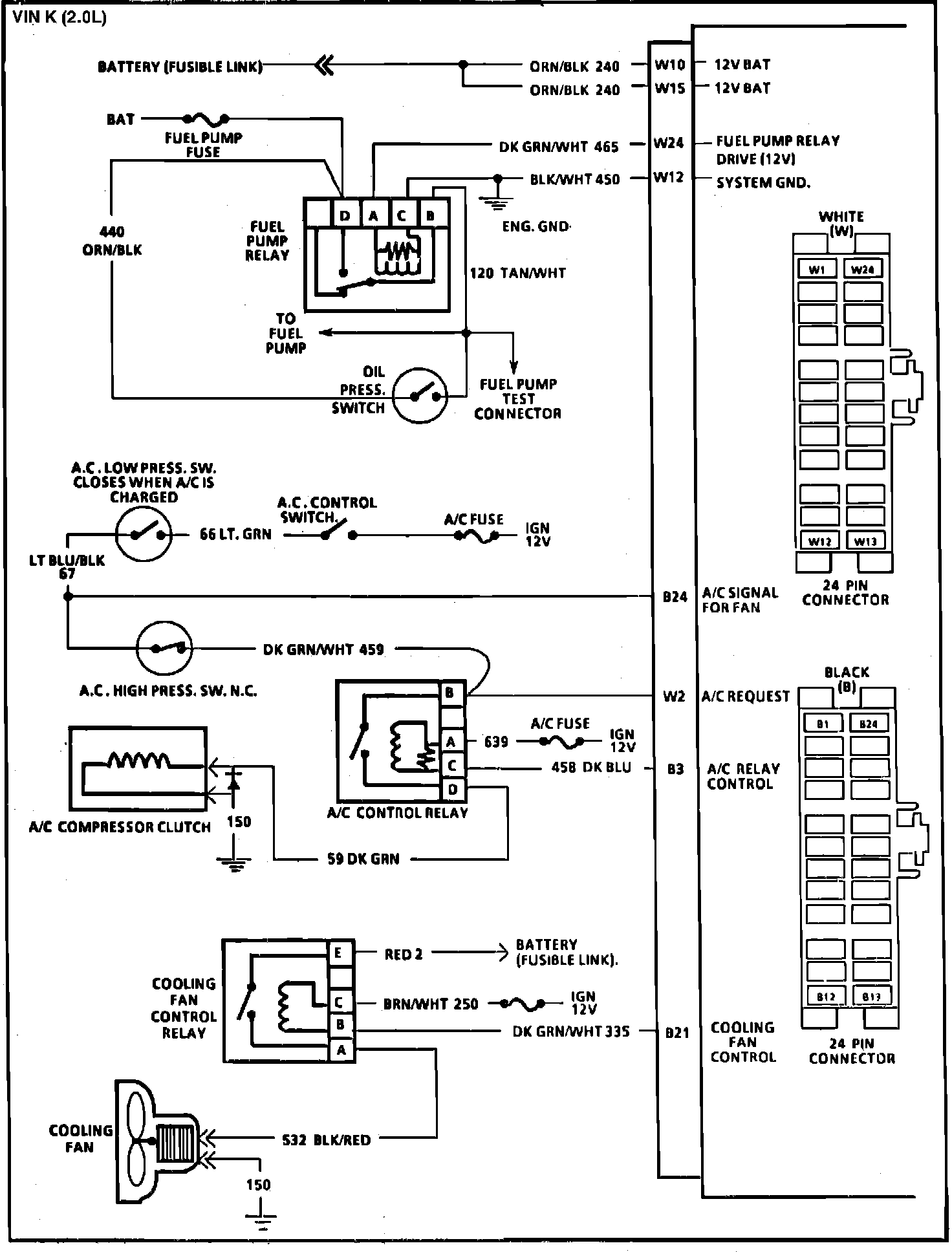

Fig. 057 ECM Wiring Diagrams (2 of 3):

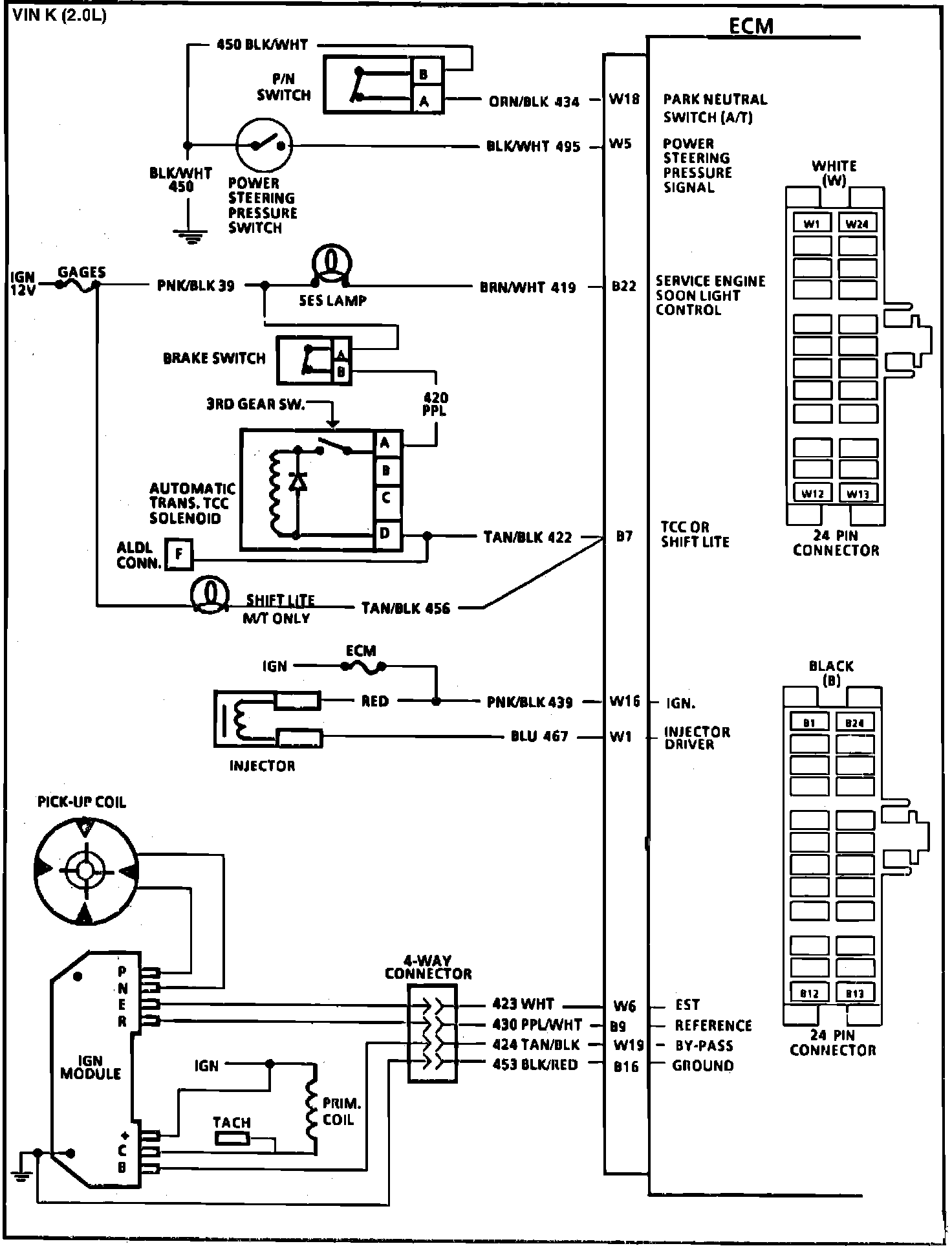

Fig. 058 ECM Wiring Diagrams (3 of 3):
