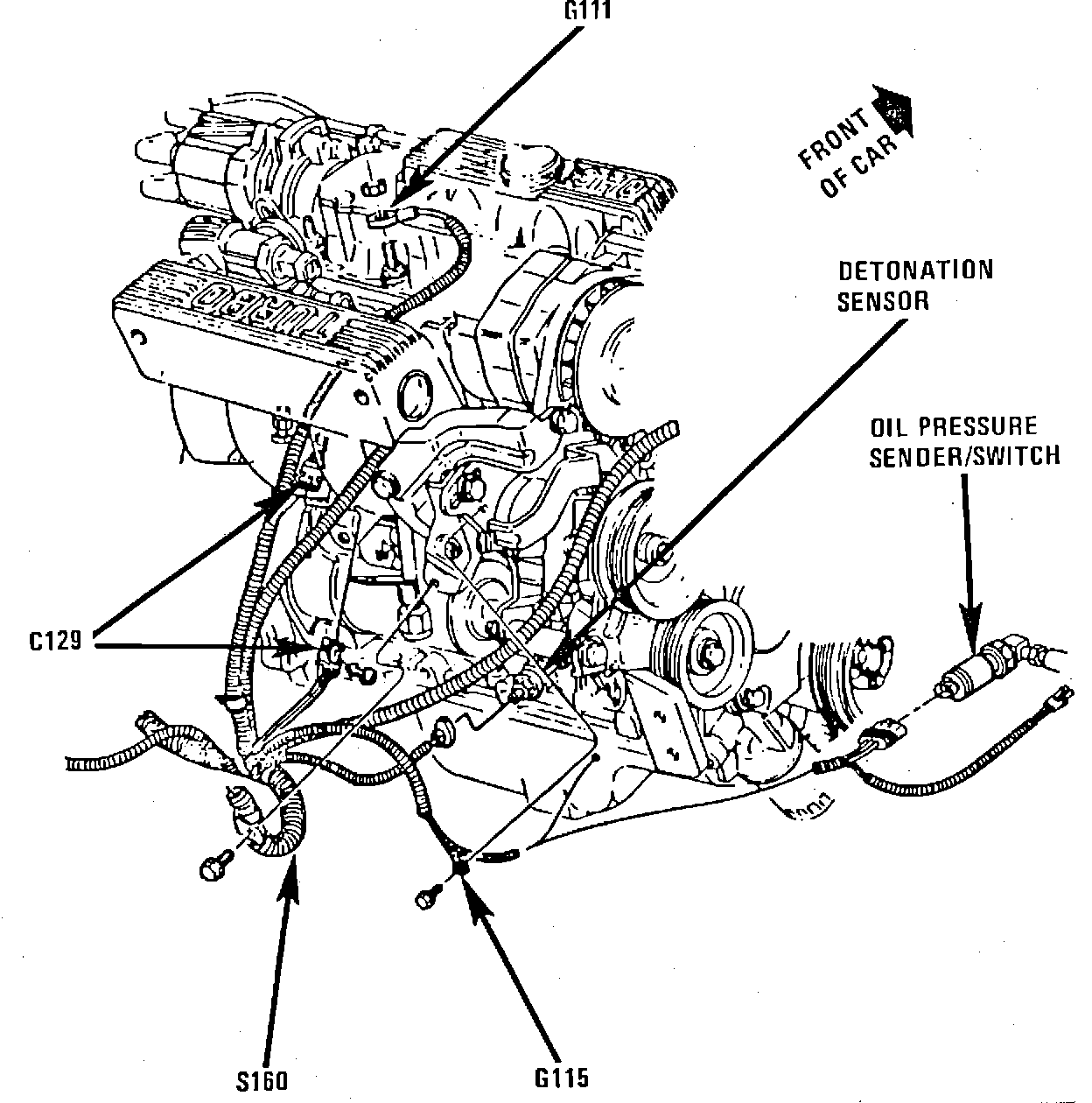

Knock Sensor: Locations

Rear Of 4-121/2.0:

Lower RH Rear Of Engine, Right Of Engine

Applicable to: 0L (VIN M) Engine
