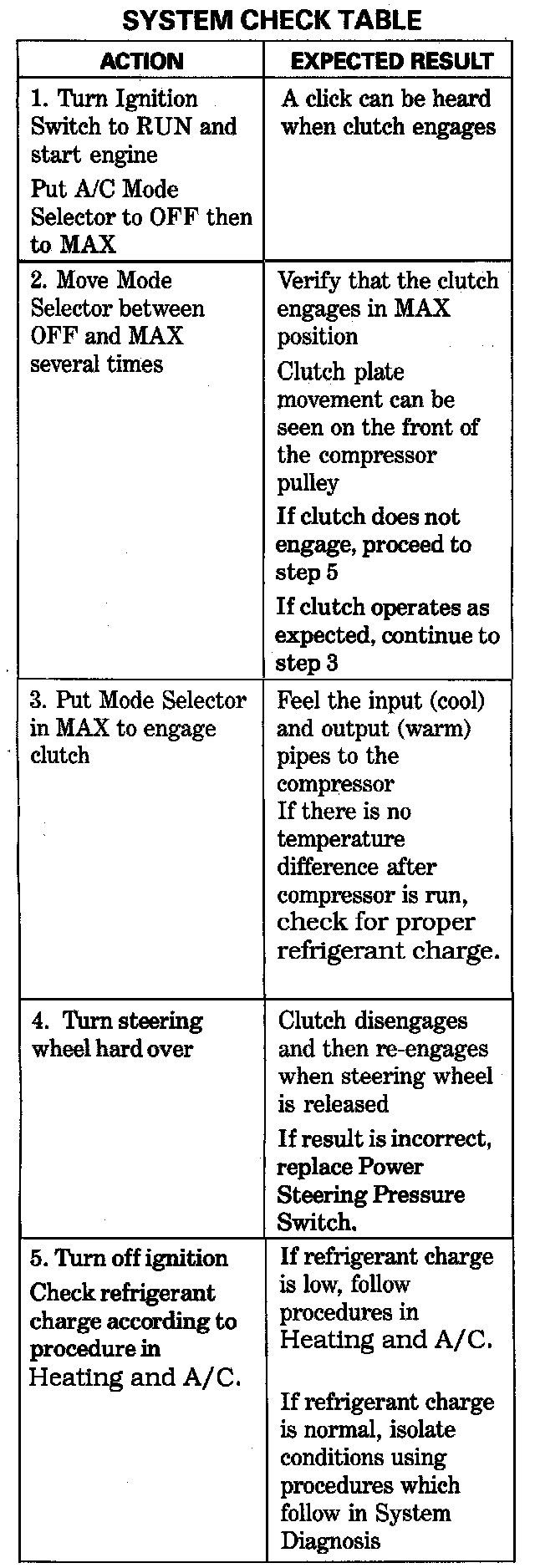

System Check Table

System Check Table:

^ Complete the A/C System Check as a guide to normal operation of the A/C System. Testing and Inspection
^ Use the System Check Table as a guide to normal operation of the Compressor Controls.
^ Refer to Isolation Test for conditions other than normal. Isolation Test
