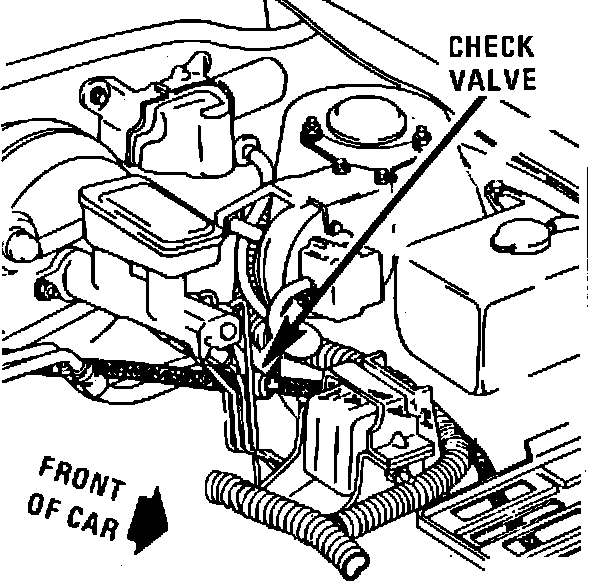

Cruise Control Check Valve

LH Rear Of Engine Compartment.:




Lower LH Rear Corner Of Engine Compartment, Near Strut Tower

Applicable to: 1987 Grand Am (4-151/2.5L)
