System Specifications

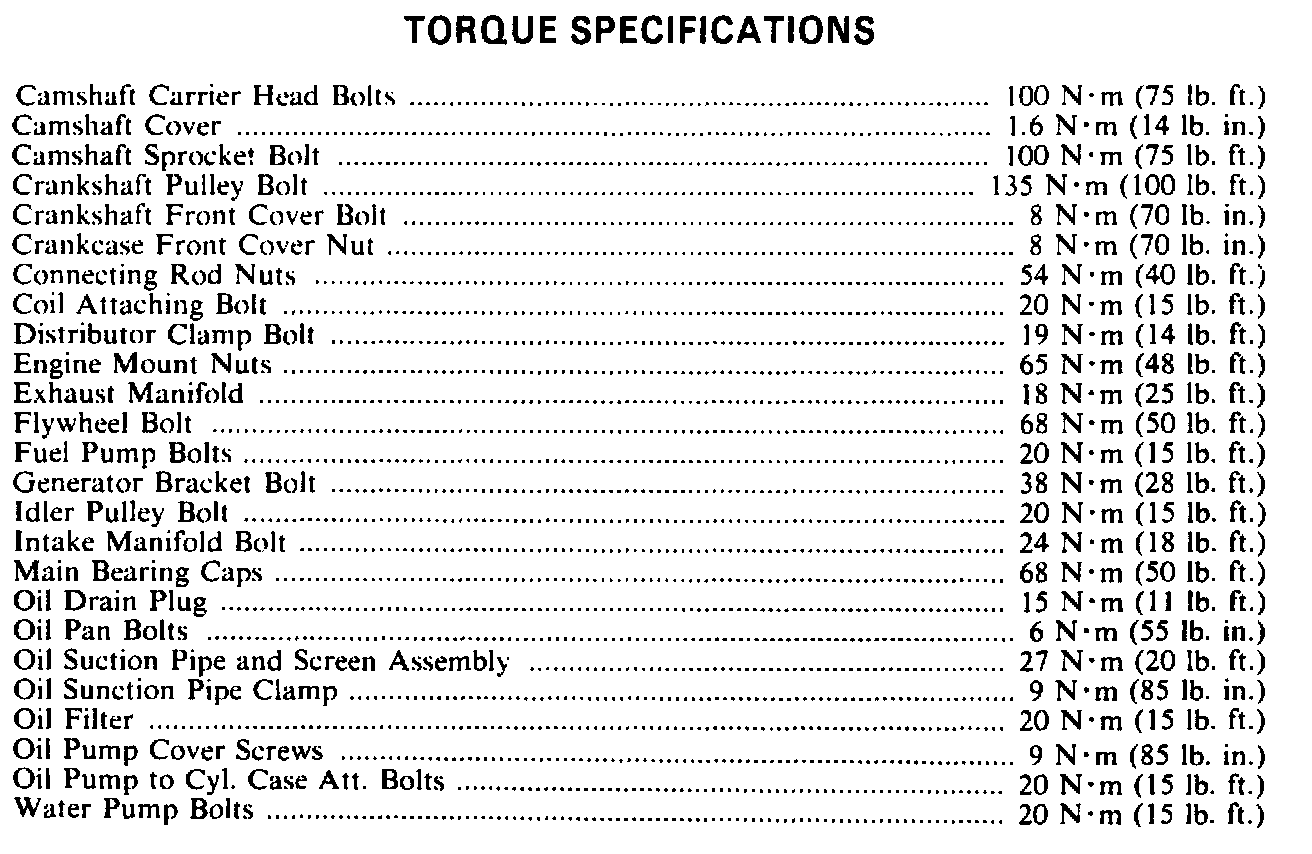

Torque Specifications:

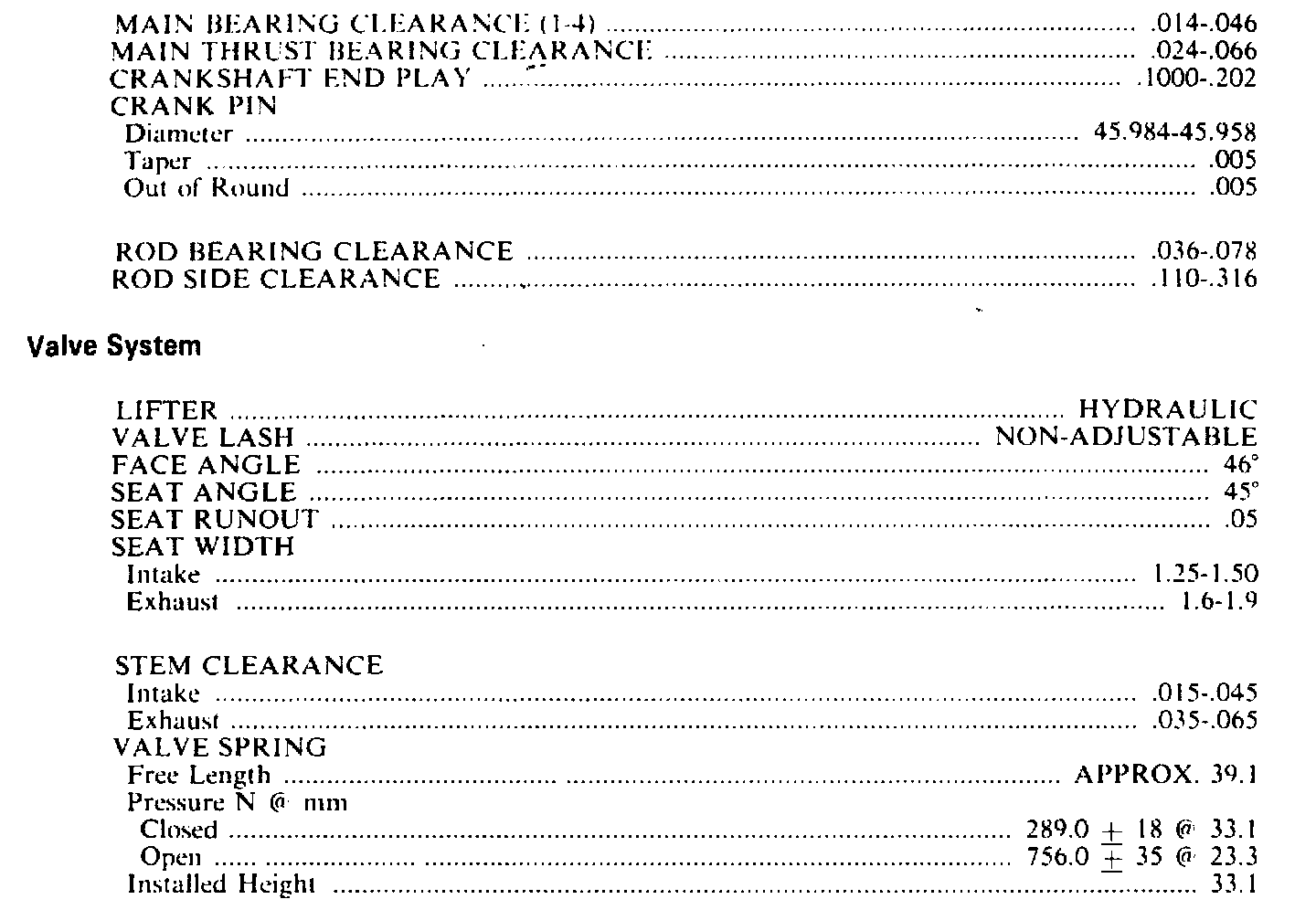

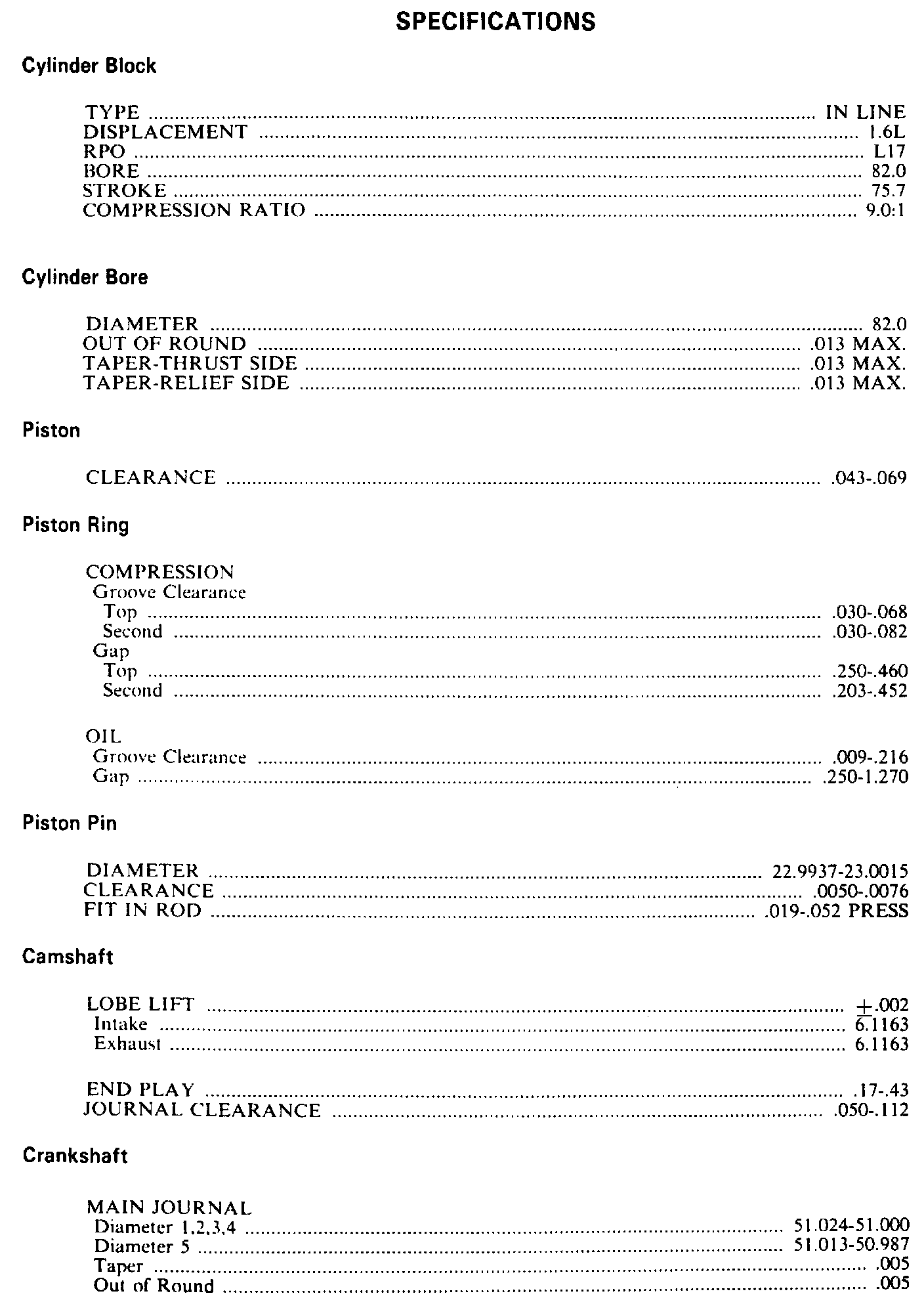

Engine Specifications:

Engine Specifications:

Cylinder Head Torque Sequence:
