Cruise Control Servo

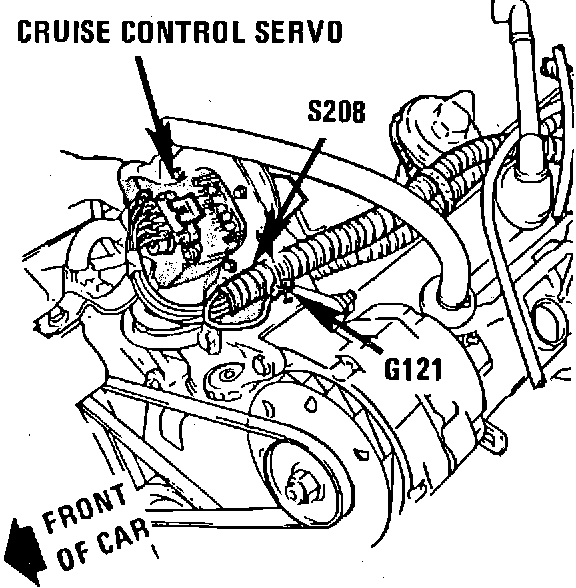

Engine Compartment.:




Front Of Engine Right Of Alternator

Applicable to: 1986 Bonneville, Grand Prix & Regal (V6-231/3.8L VIN A Shown, V8-305/5.0L VIN H Similar)

Behind RH Side Of I/P.:




Front Of Engine Right Of Alternator

Applicable to: 1986 Regal
