Chart C1F - Map Output Check

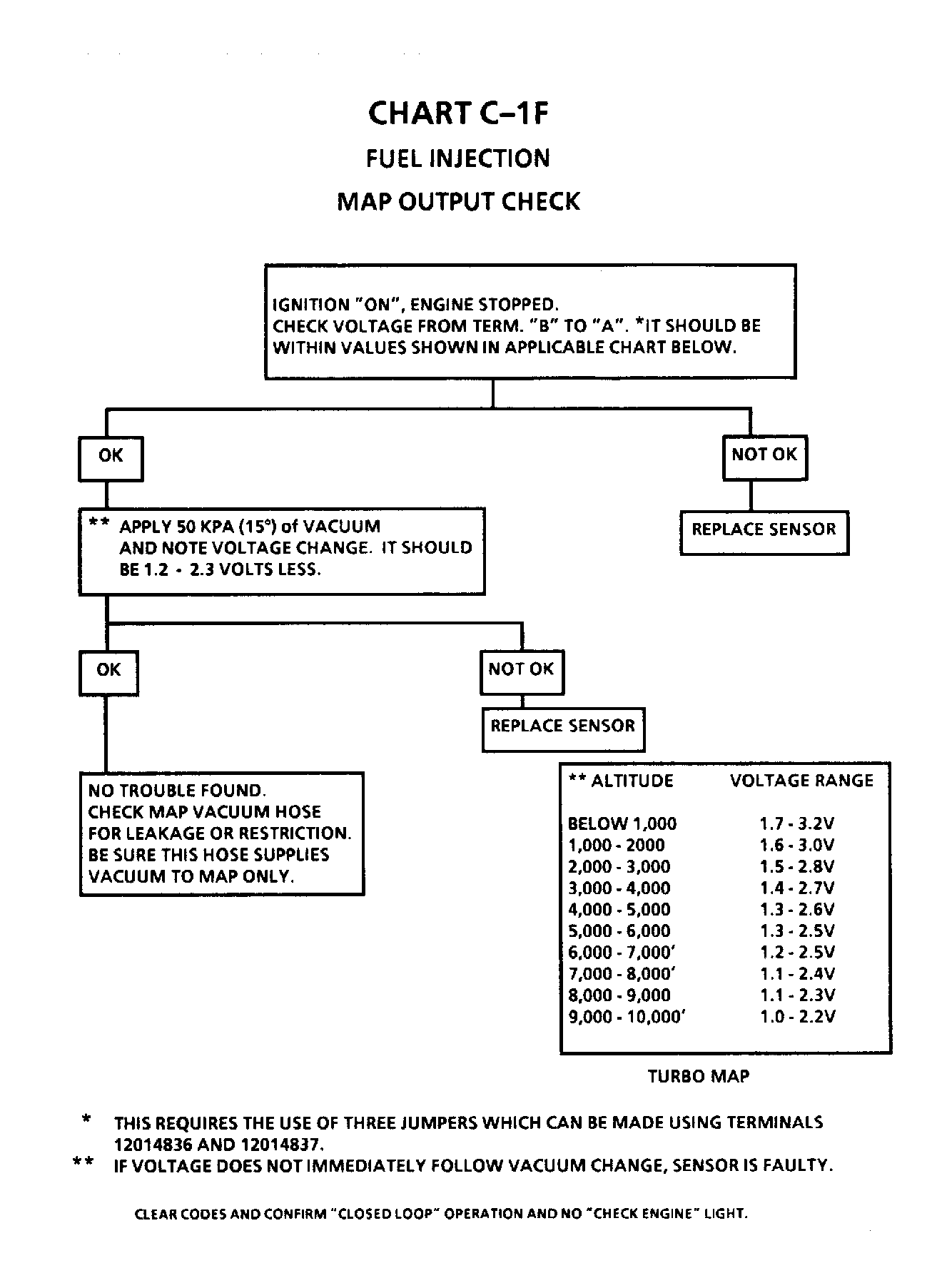

Fig 1: Flow Chart C1F, MAP Output Check
Fig 2: Flow Chart C1F, MAP Output Check
