Powertrain Management: Locations

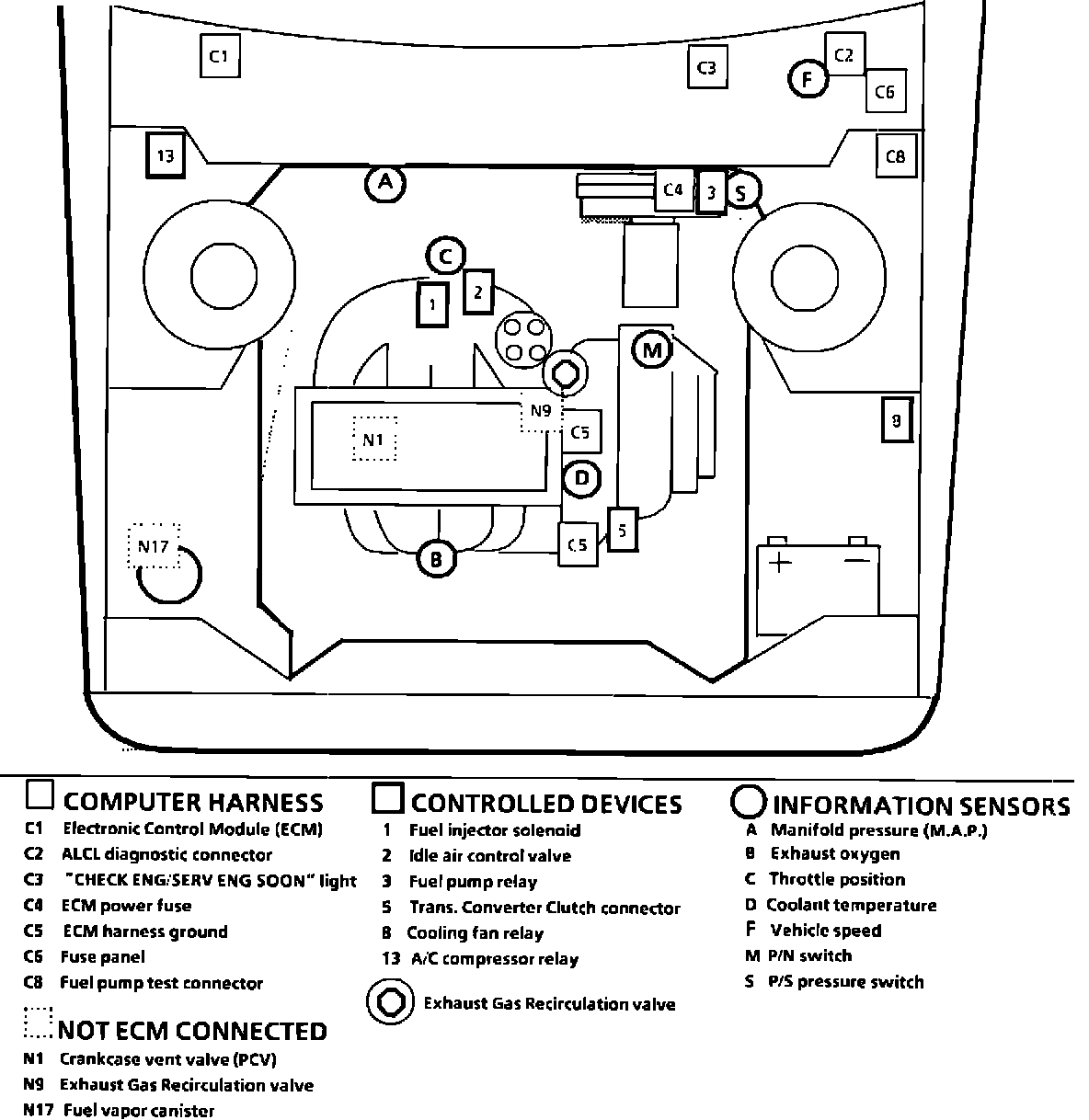

Component Locations.:

In Engine Compartment

Applicable to: 1985 4-121/2.0L Engine
