Air Temperature Sensor ( Ambient / Intake ): Service and Repair

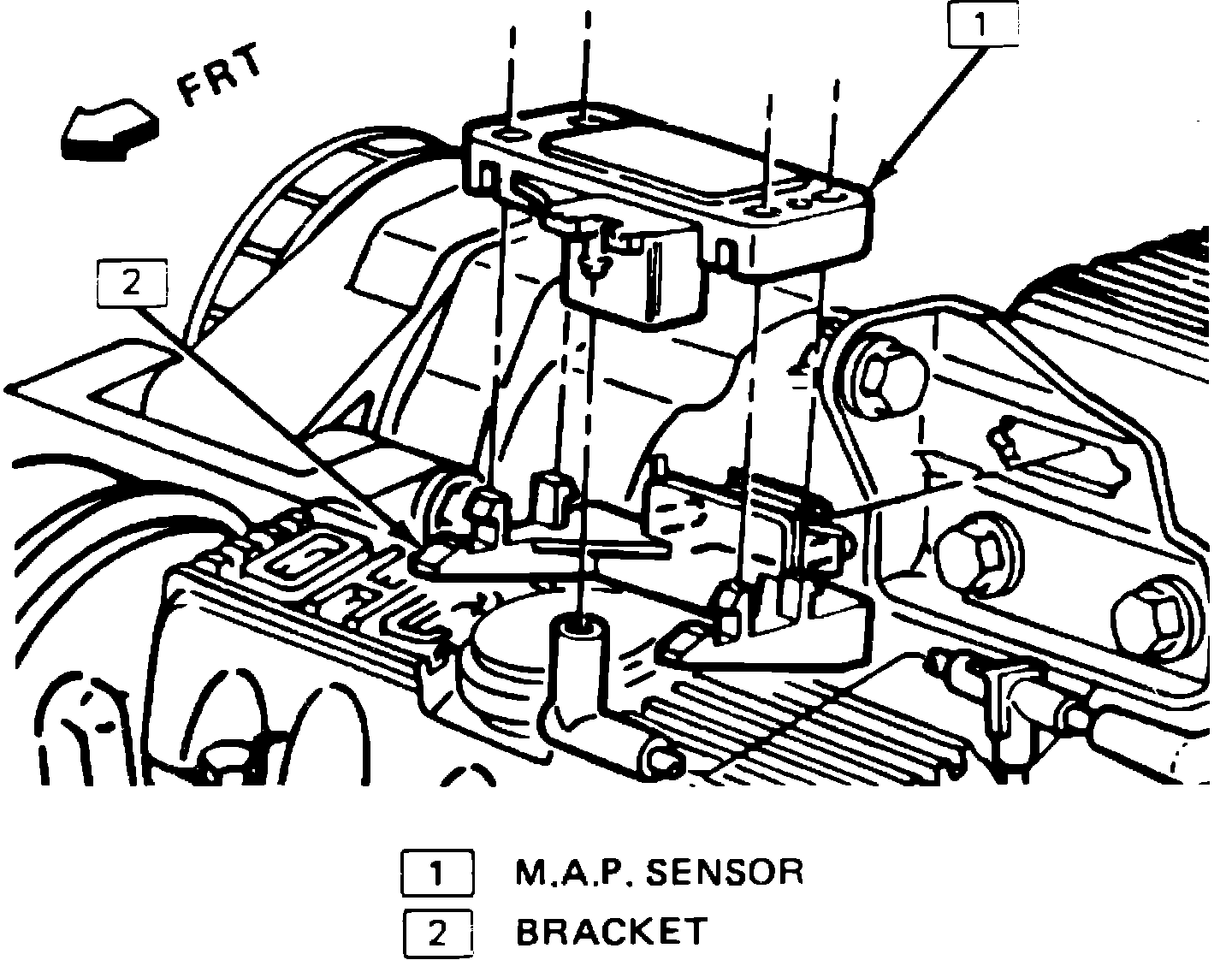

Fig. 341 MAP sensor removal. 4-110 (1.8L) Turbo:

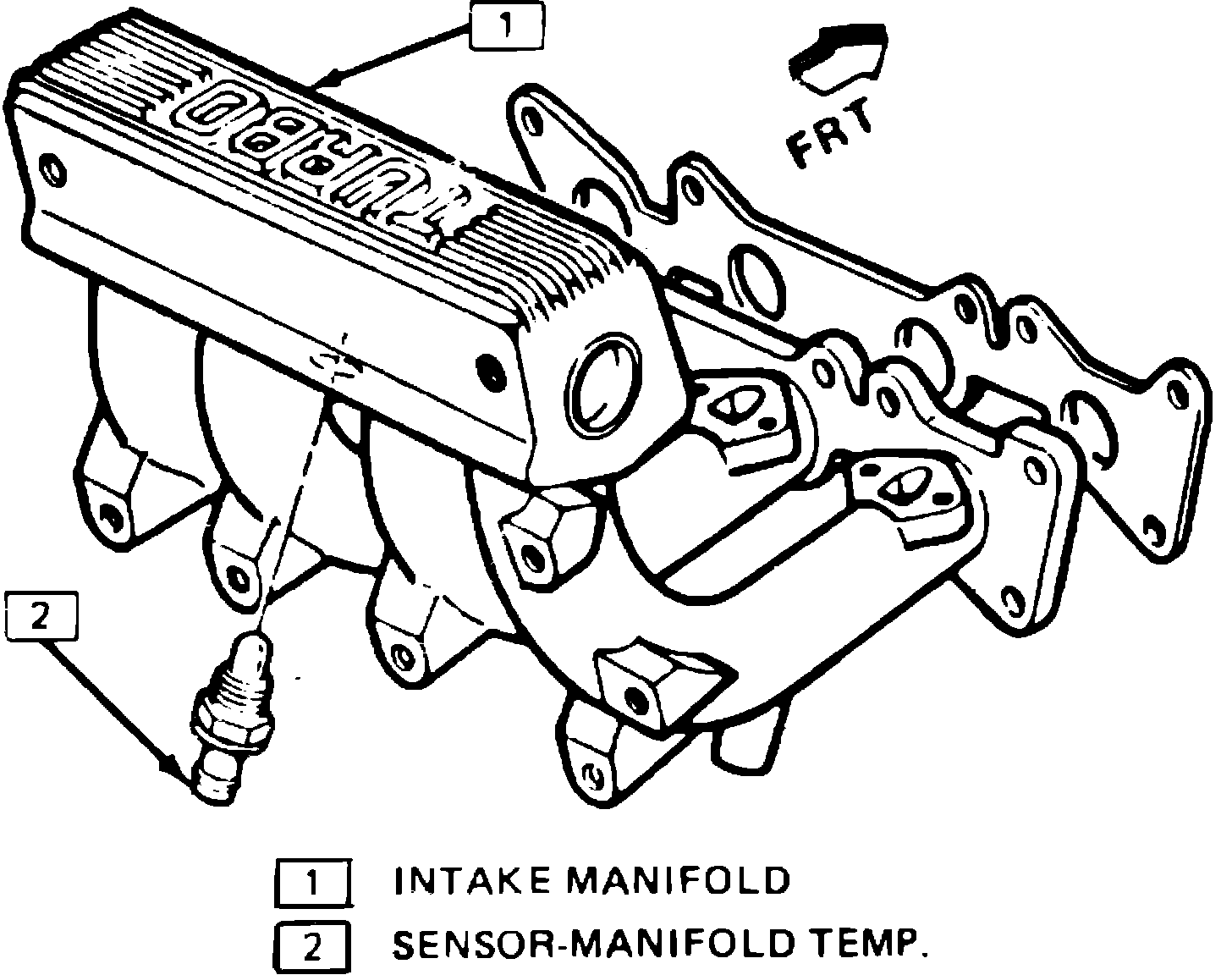

Fig. 342 MAT sensor removal. 4-110 (1.8L) Turbo:
4-110 (1.8L) Turbo Only
To replace MAP sensor, refer to Fig. 341. To replace MAT sensor, refer to Fig. 342.
