Engine Controls - Revised System Performance Check

Number 85-SM-18 Date 5/85
Subject: SYSTEM PERFORMANCE CHECK

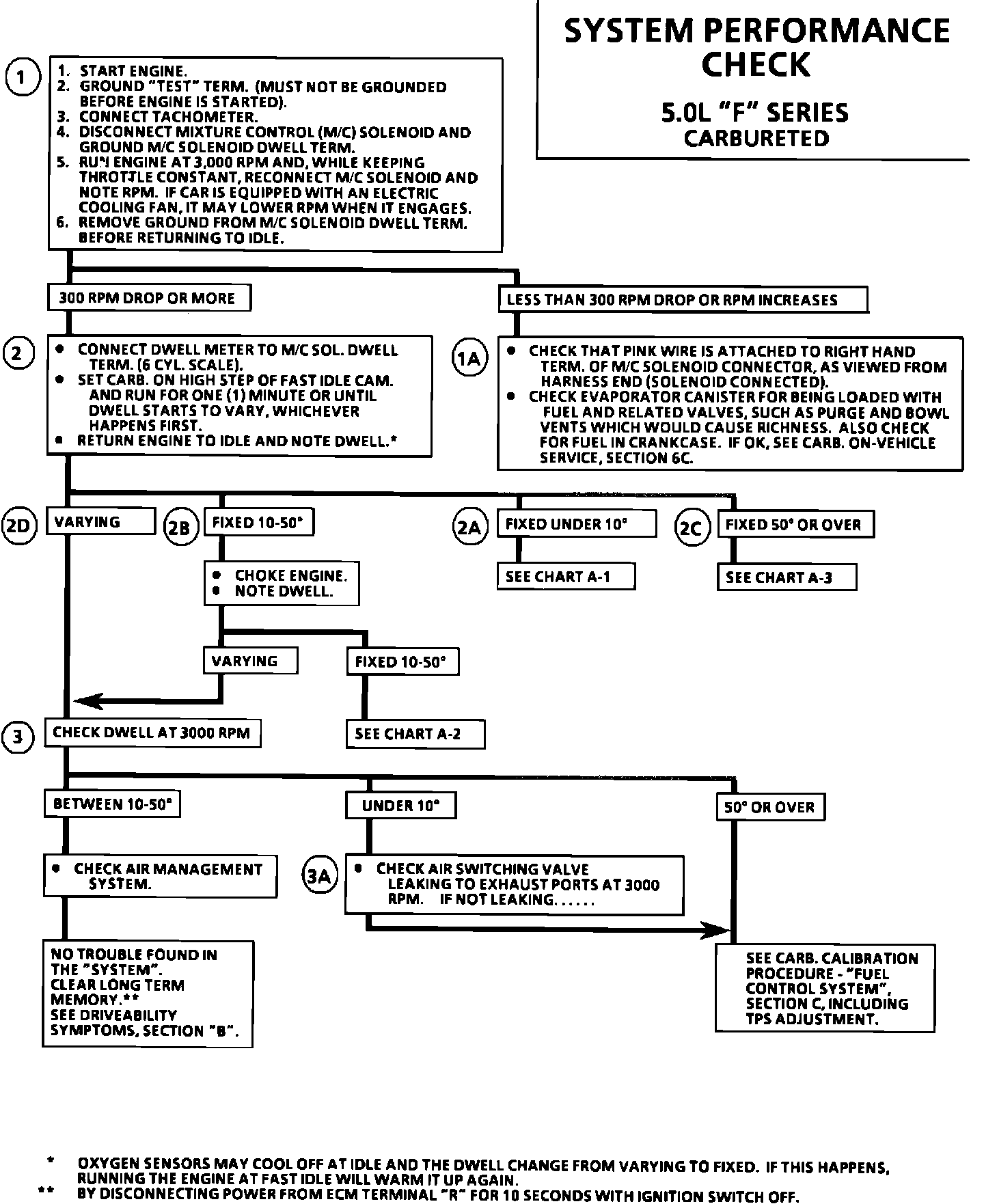

FIGURE 1 - SYSTEM PERFORMANCE CHECK-CHART:

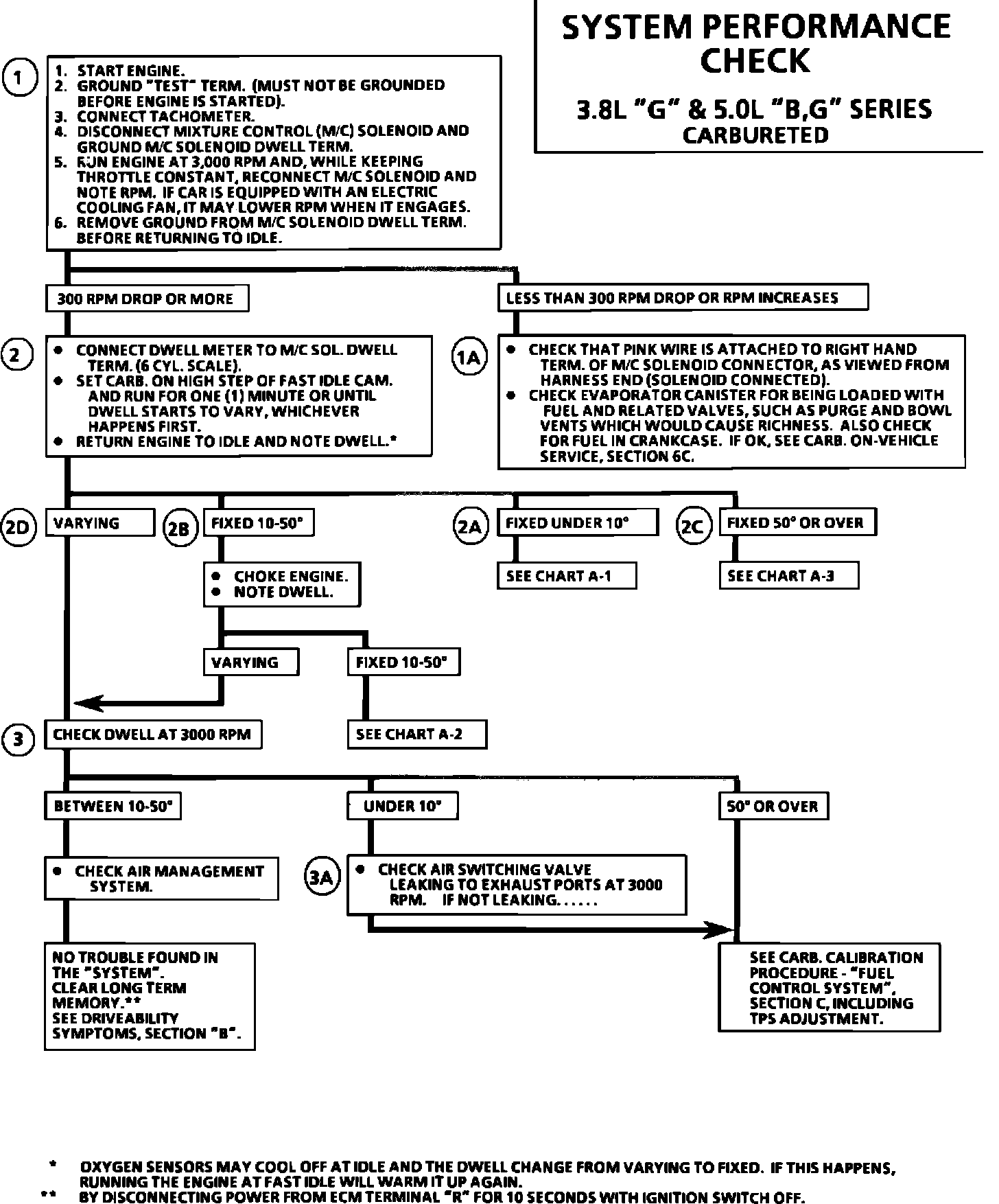

FIGURE 2 - SYSTEM PERFORMANCE CHECK-CHART:

Attached are the revised System Performance Check pages for Section 6E1 for your Firebird and Grand Prix, Bonneville, Parisienne Service Manuals.
