Electronic Spark Control (ESC) Module

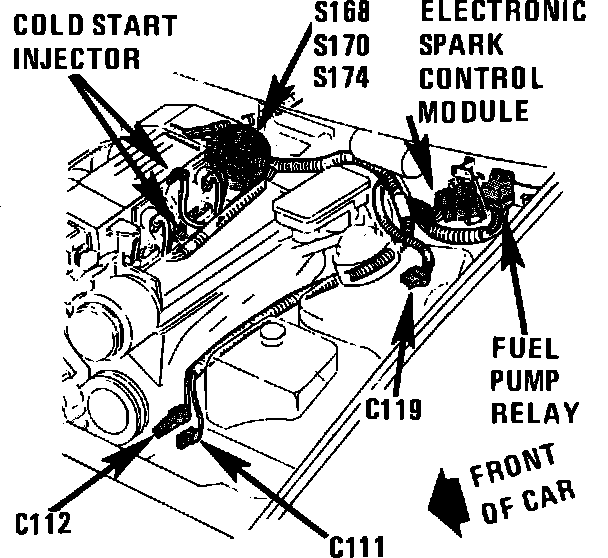

Top Rear Of Fuel Injected V8-305 Engine:





LH Front Of Dash, Near Brake Master Cylinder

Applicable to: 1984-85
