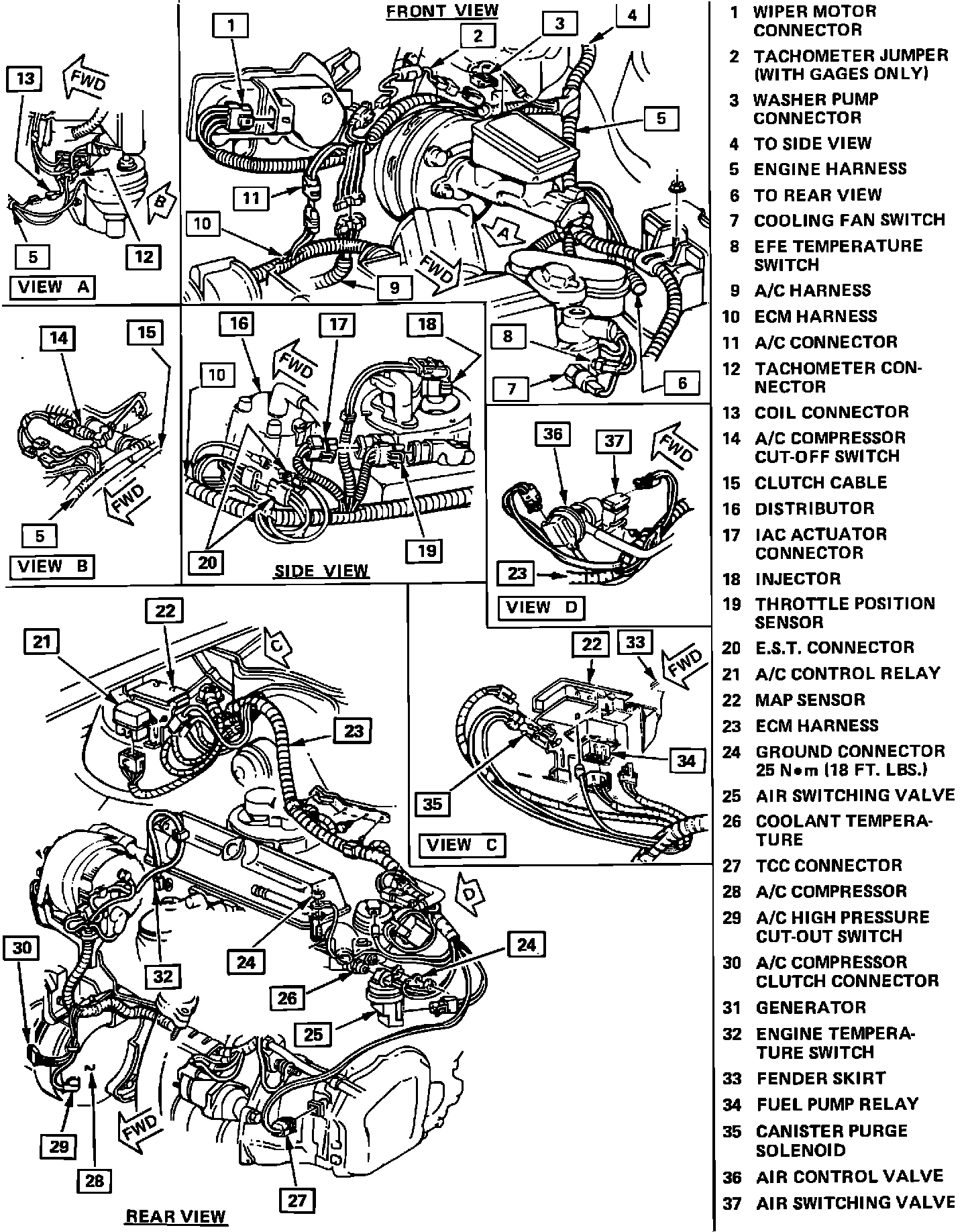

A/C Compressor Cut-Off Switch
Engine & Engine Compartment Wiring.:
Refrigerant Line LH Side Of Engine
Applicable to: 1983 2000 4-121/2.0L Engine
