Distributor - Disassembly/Test and Reassembly

Number 84-6 (Gasoline)-66 Date 10/84
Subject: DISTRIBUTOR DISASSEMBLY, TEST, AND REASSEMBLY

HEI/EST DISTRIBUTOR:

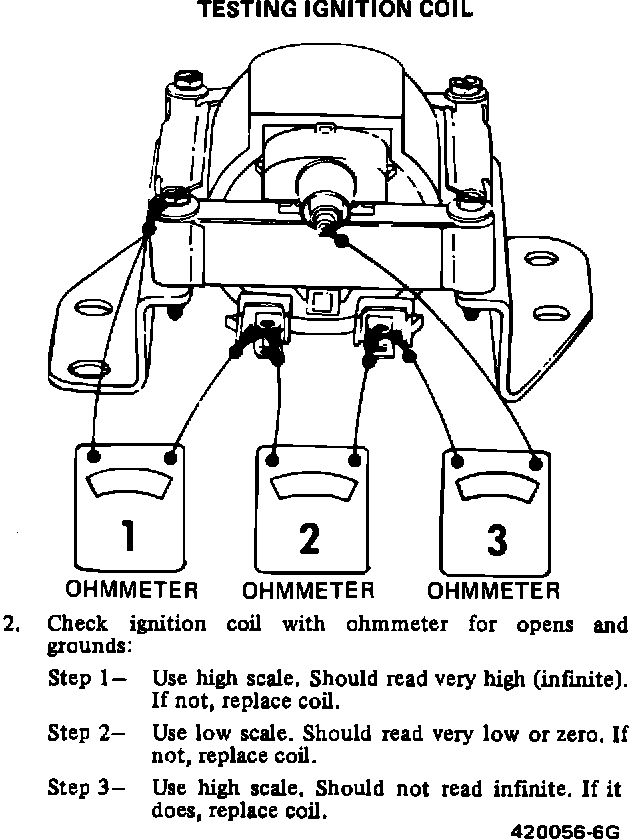

TESTING IGNITION COIL:

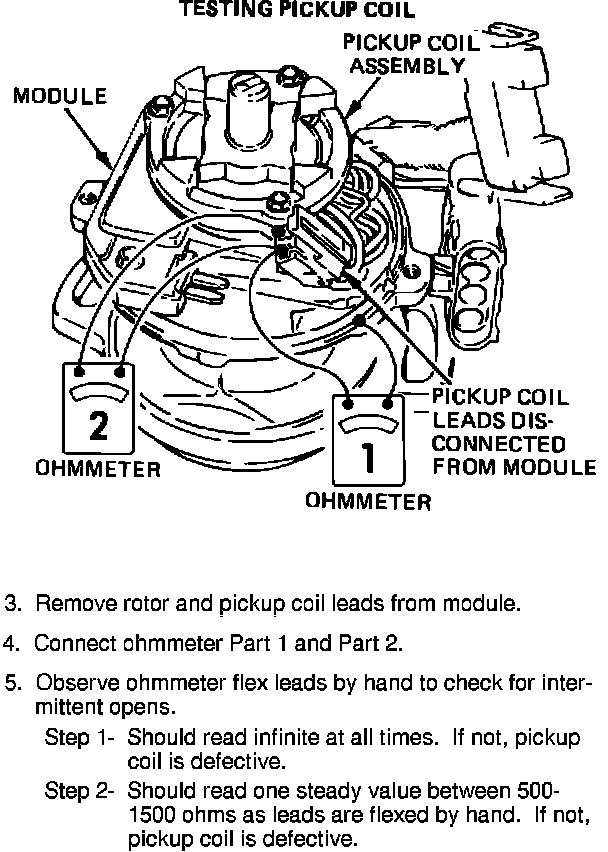

TESTING PICKUP COIL:

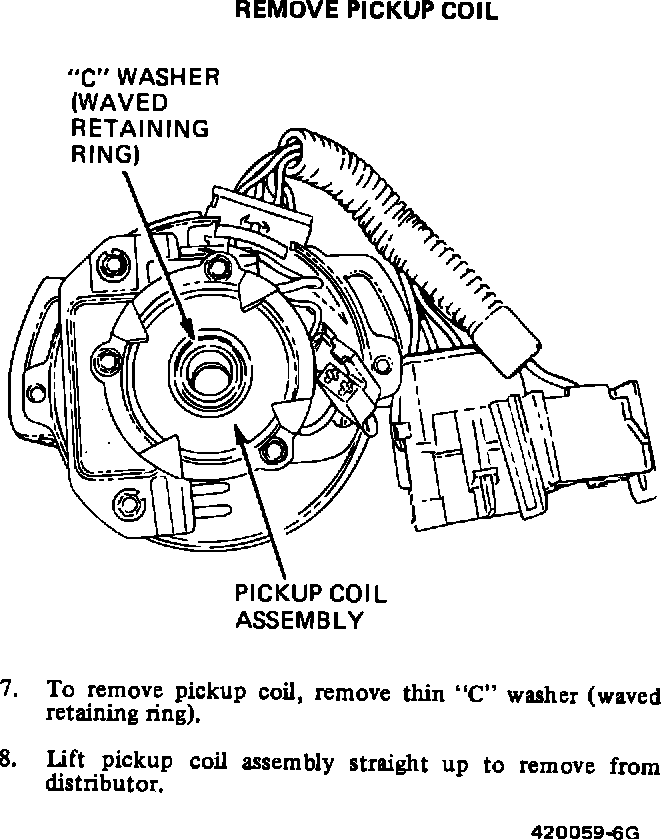

REMOVE PICKUP COIL:

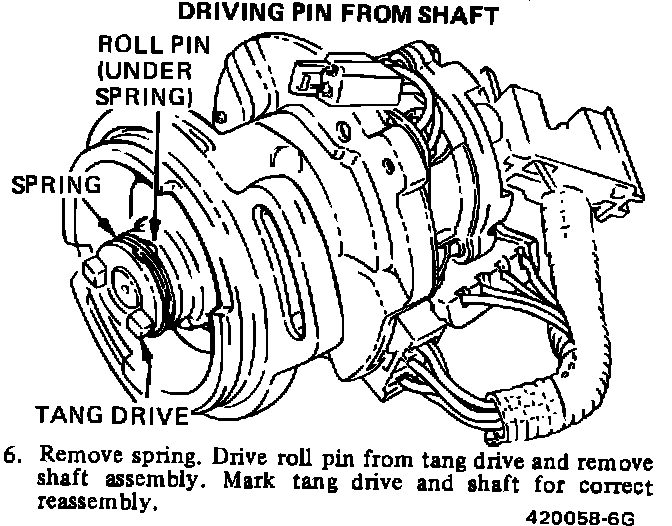

DRIVING PIN FROM SHAFT:

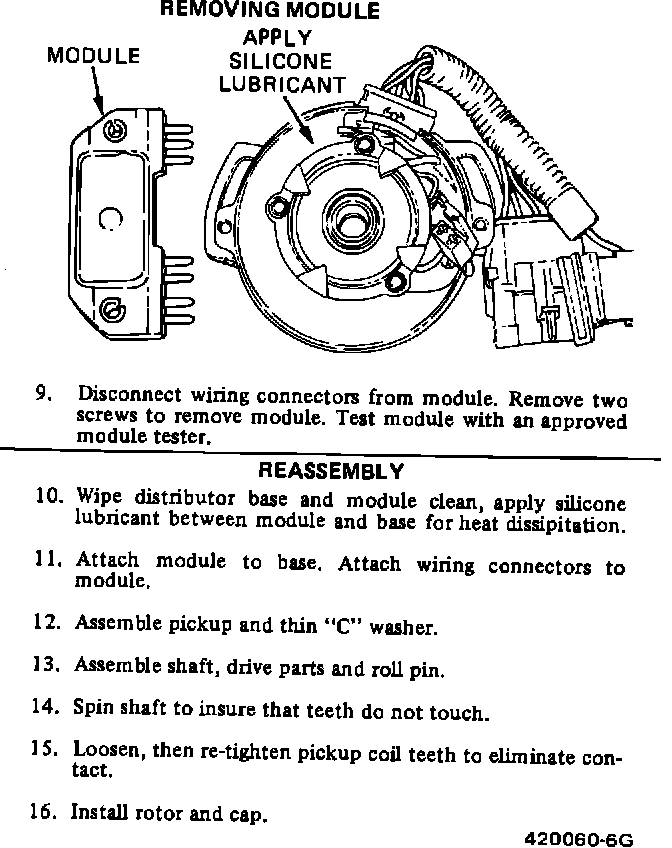

REMOVING MODULE:

The following procedure for the 1.8L OHC engine (VIN codes O and J) is being supplied for your information.. This engine is used on the 2000 Sunbird, from late 1982 to 1984.
