System Specifications

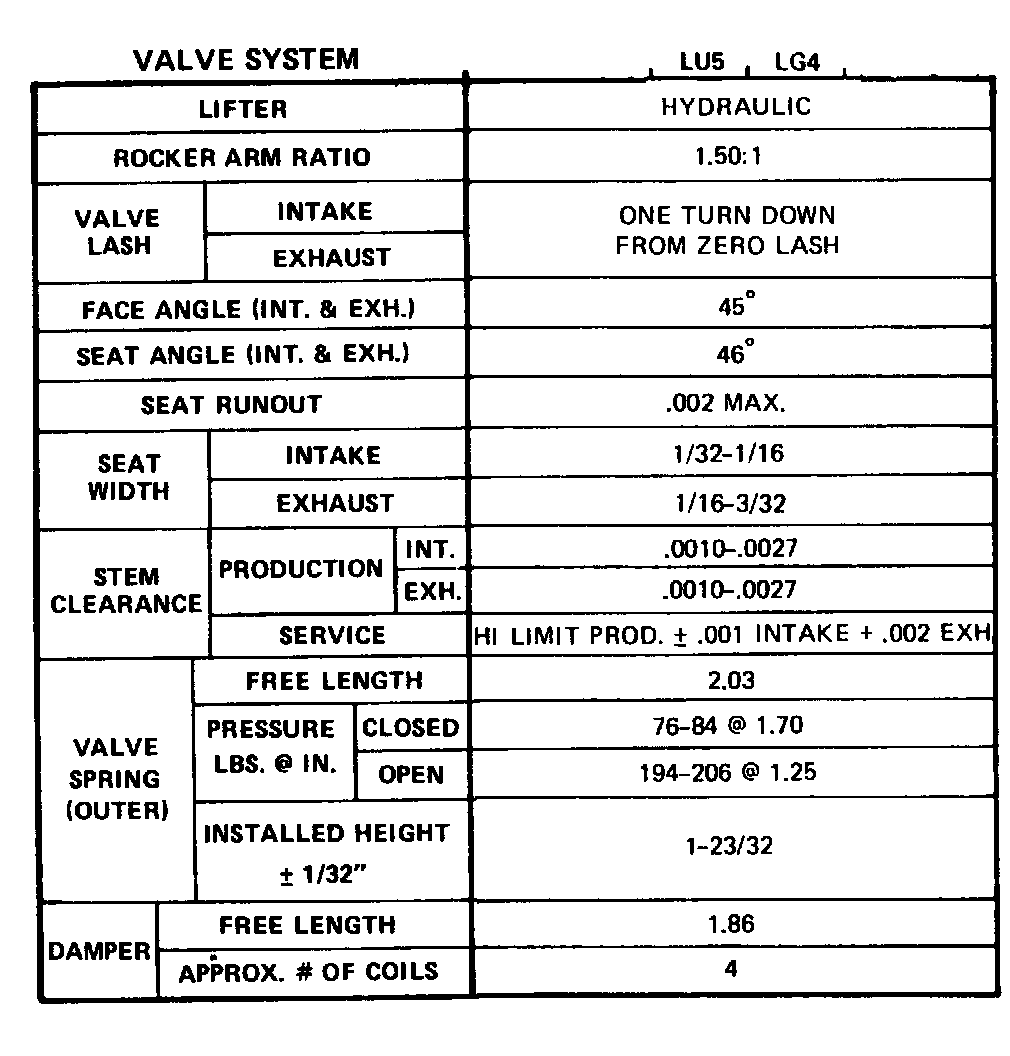

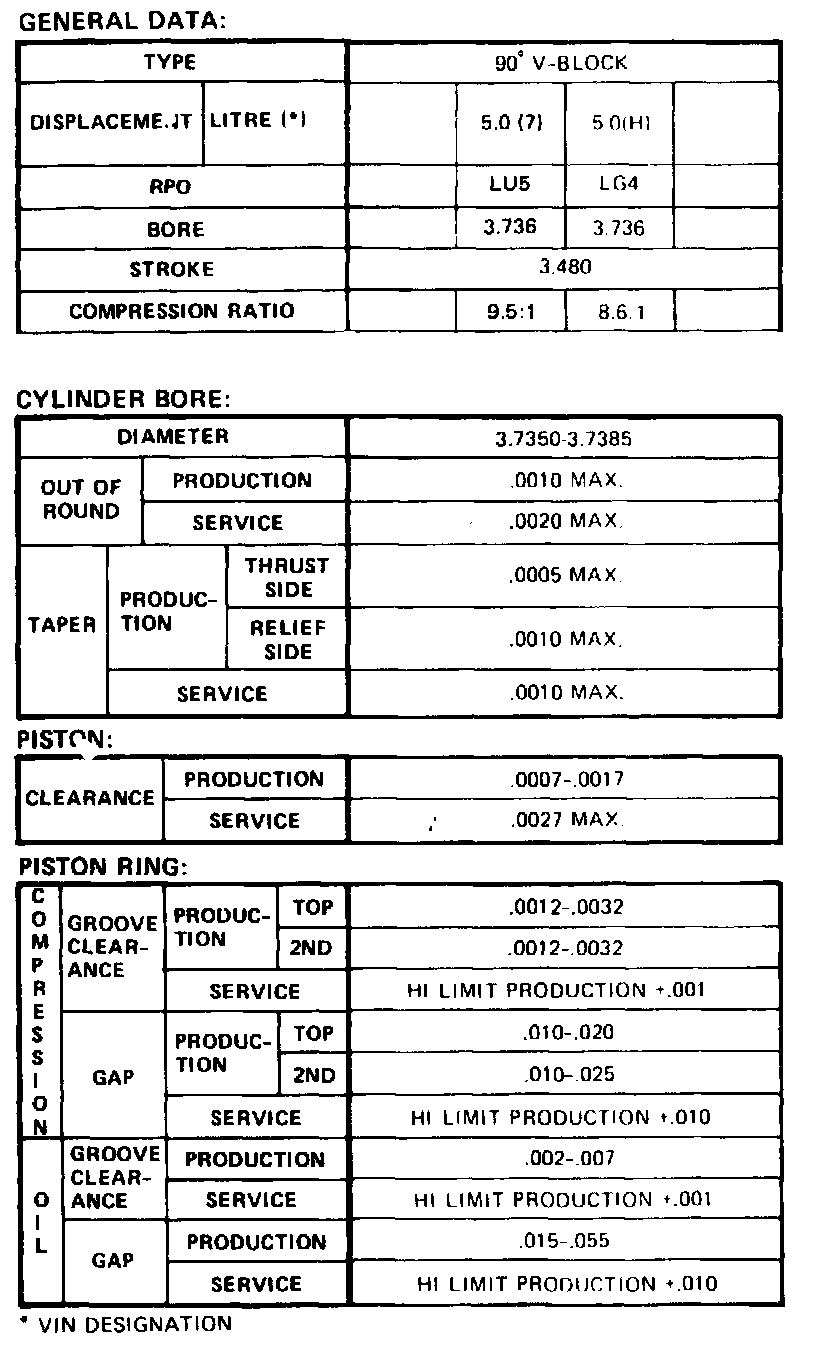

Engine Specifications:

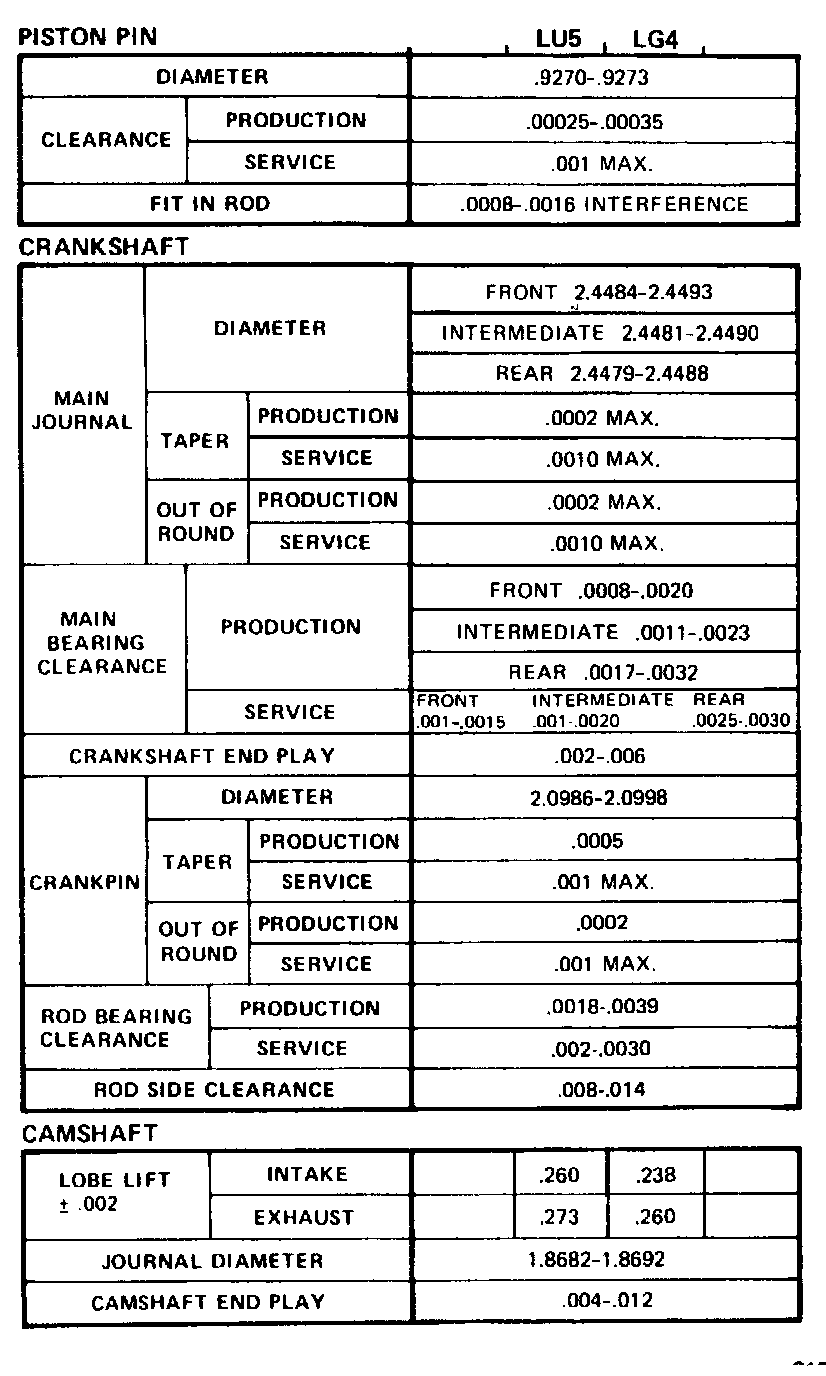

Continued Engine Specifications:





Continued Engine Specifications:

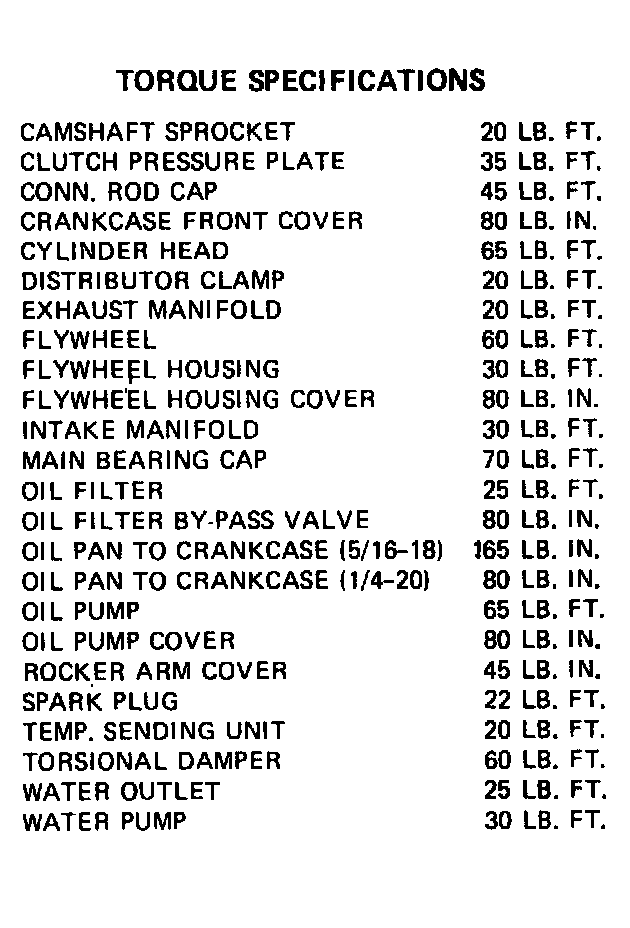

Torque Specifications:

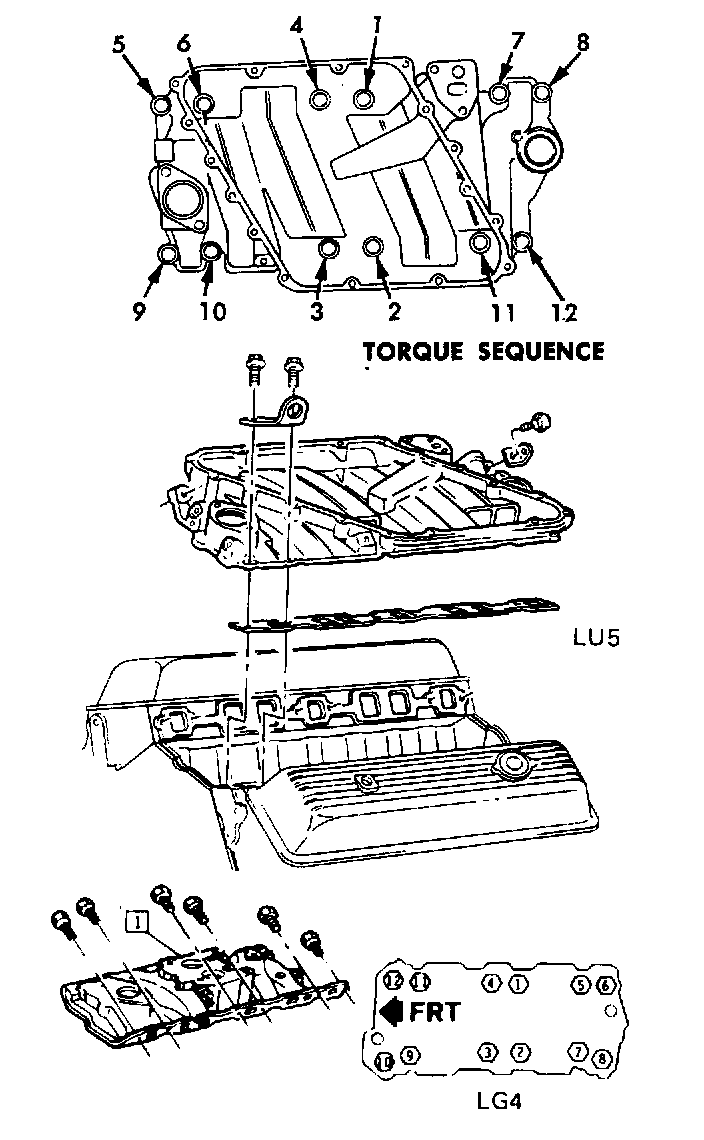

Intake Manifold Sequence:





Cylinder Head Sequence:
