System Specifications

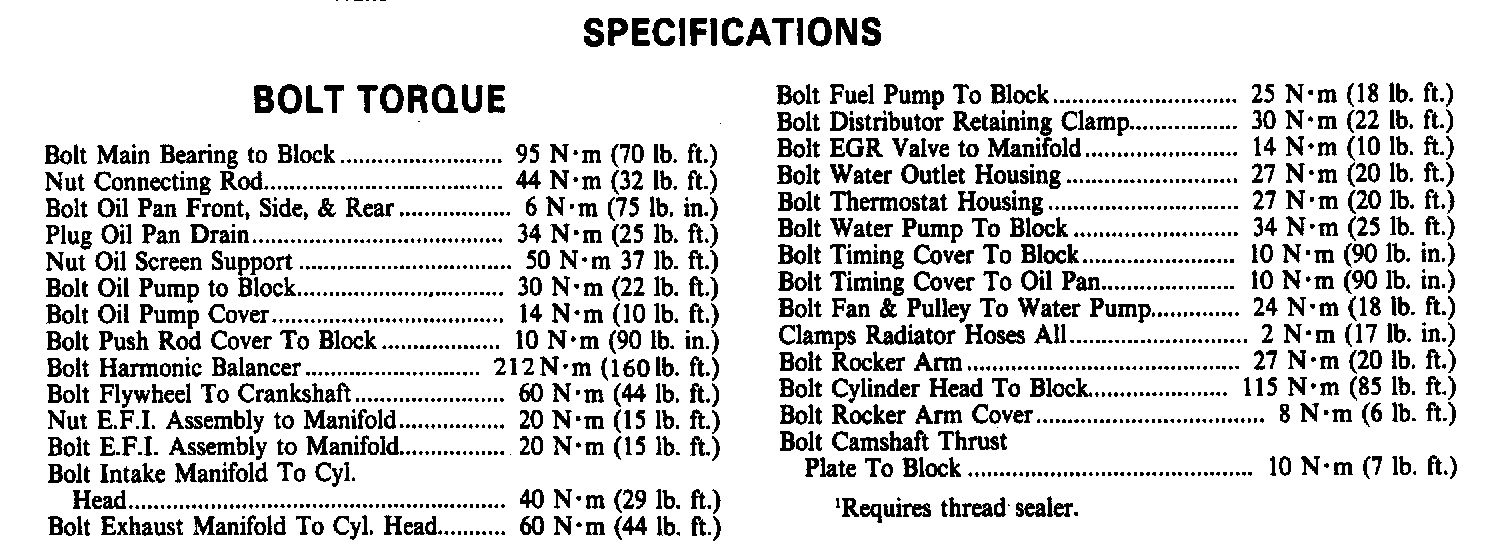

Torque Specifications:

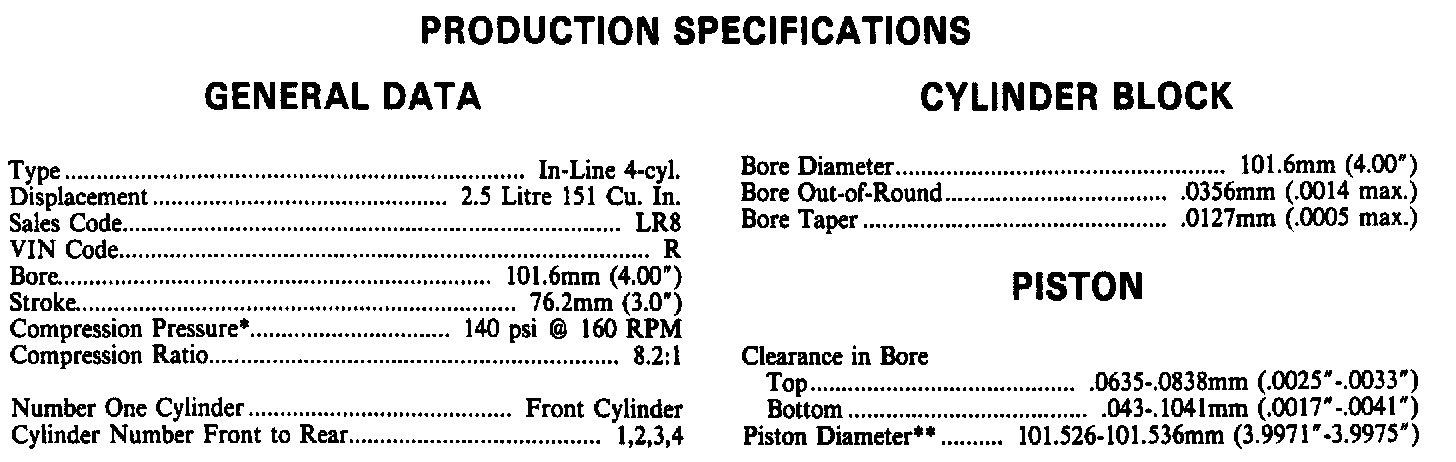

Engine Specifications:

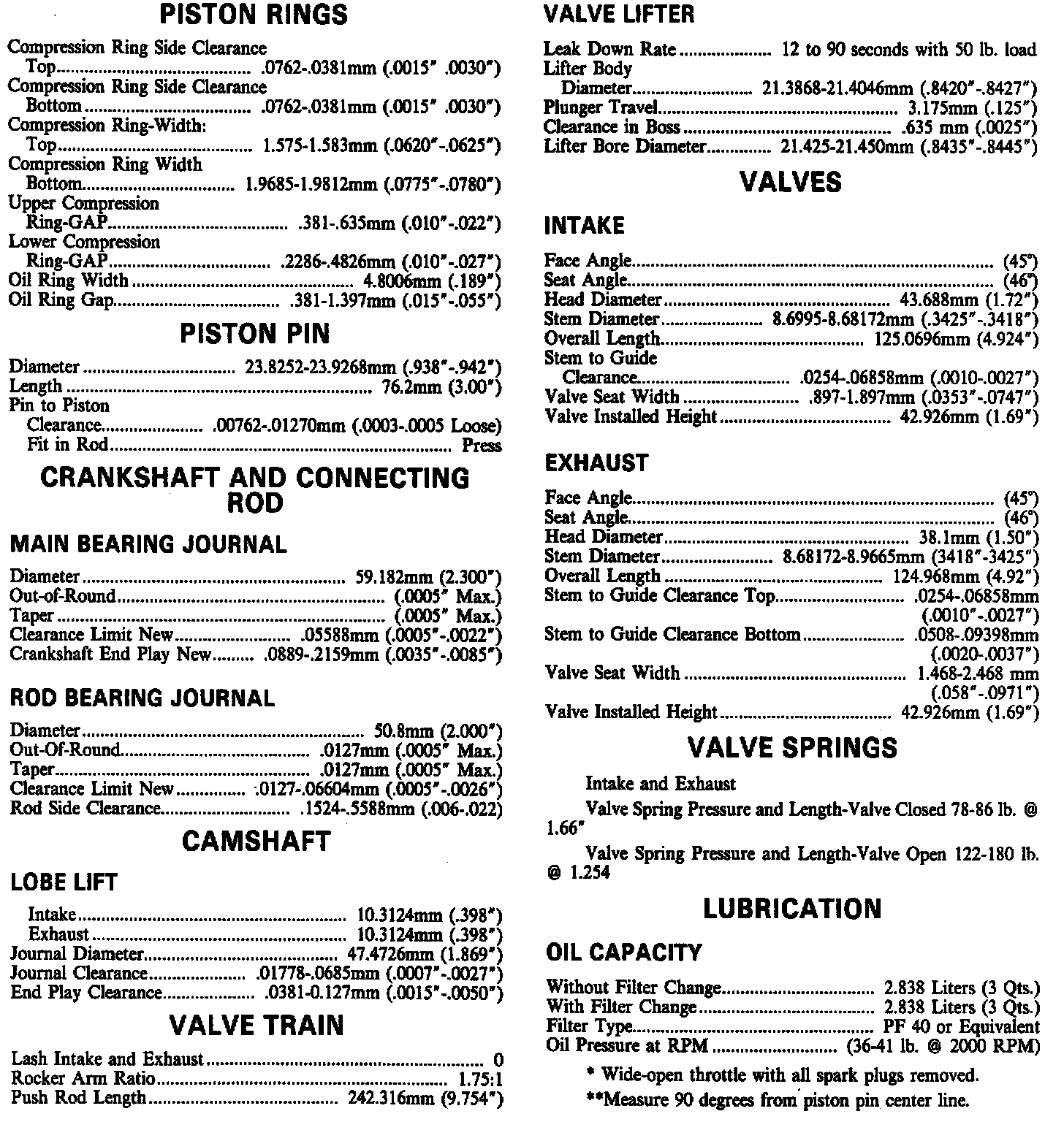

Engine Specifications:

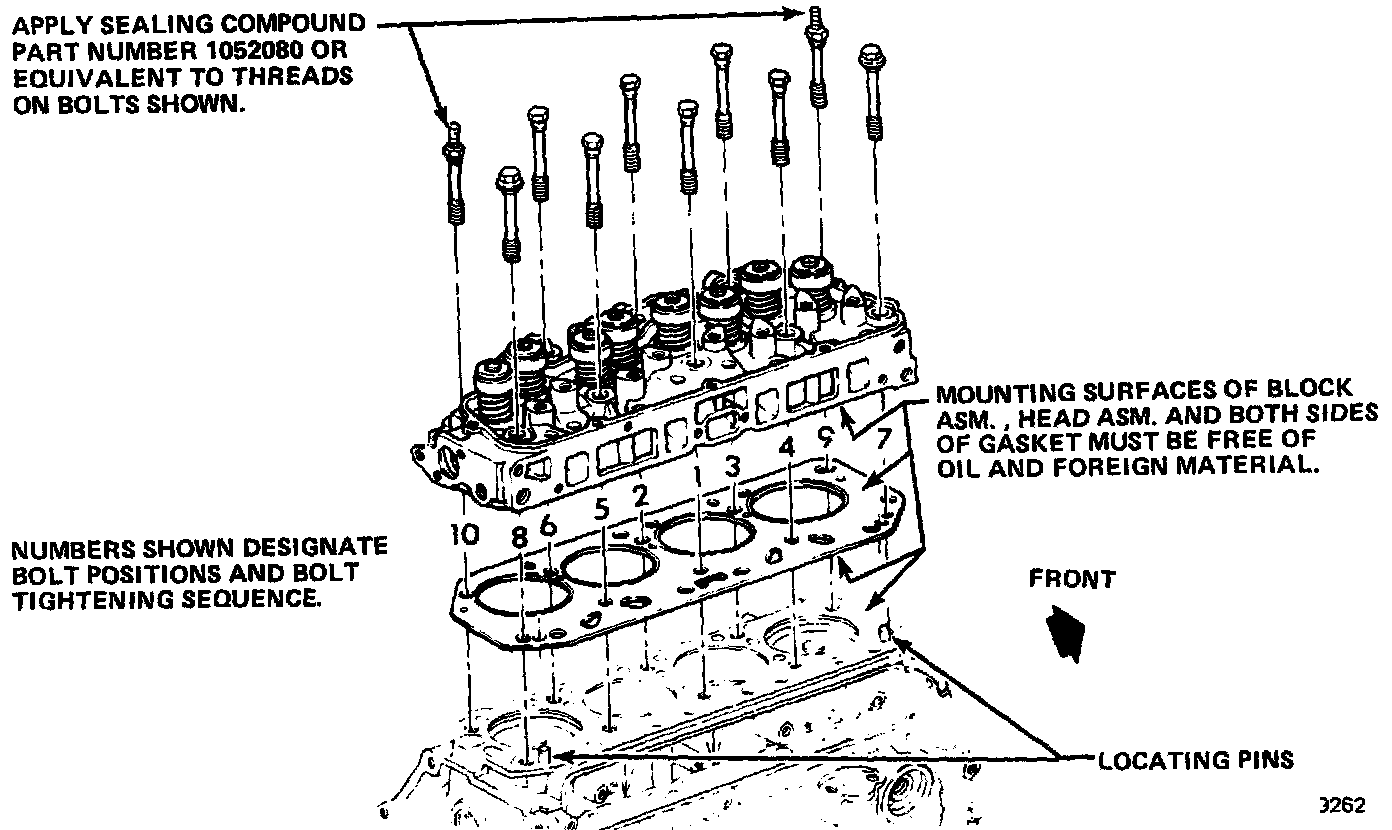

Cylinder Head Torque Sequence:

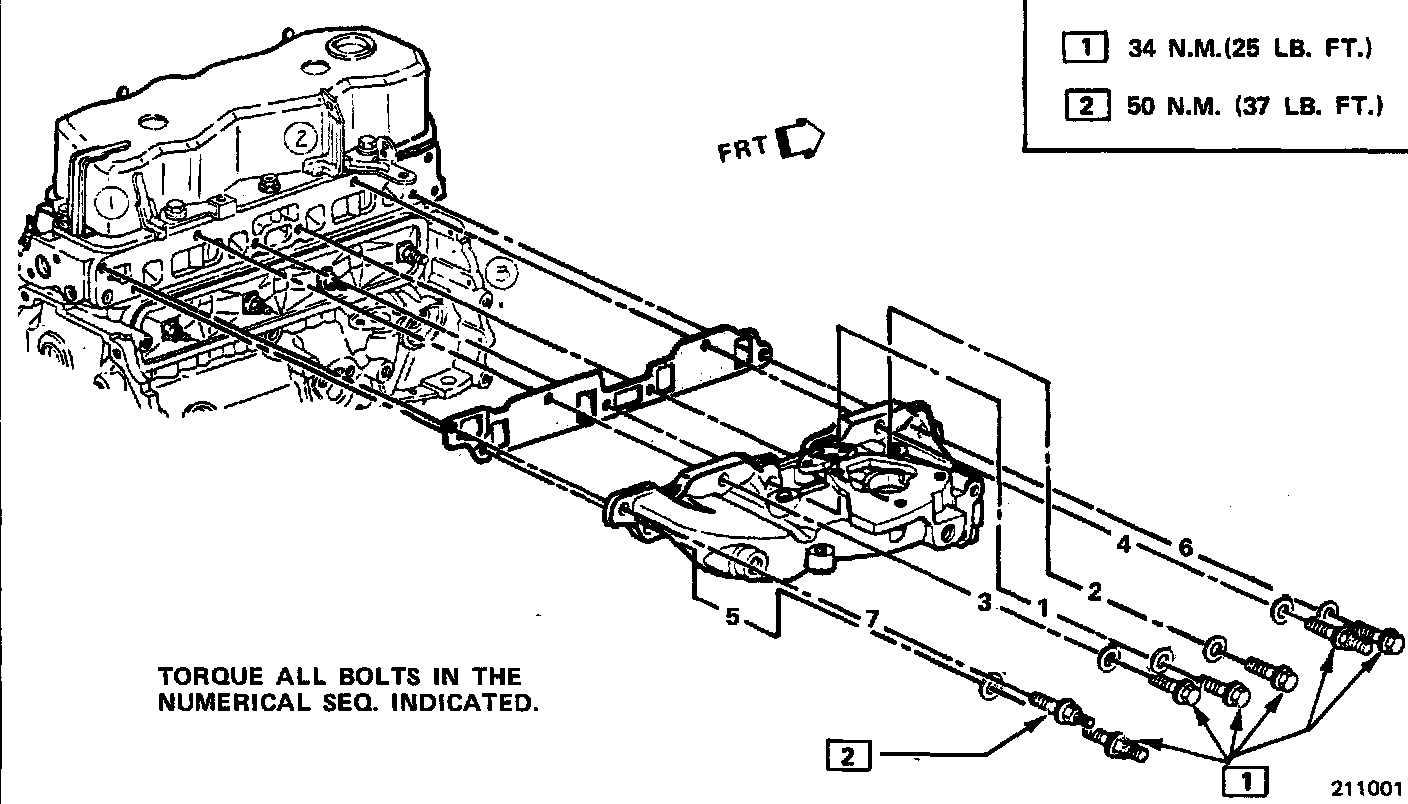

Intake Manifold Torque Sequence:
