Boot Stroke Position

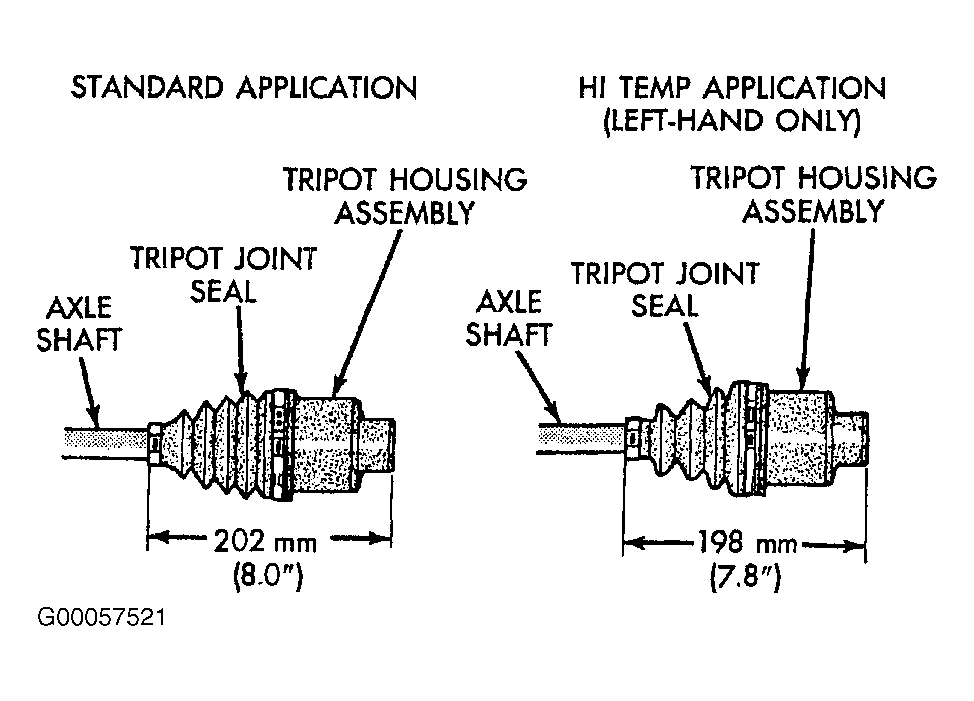

Fig 1: Proper Inner Tripod Joint Stroke Position
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
