Body Control Module Connector Pin-Outs

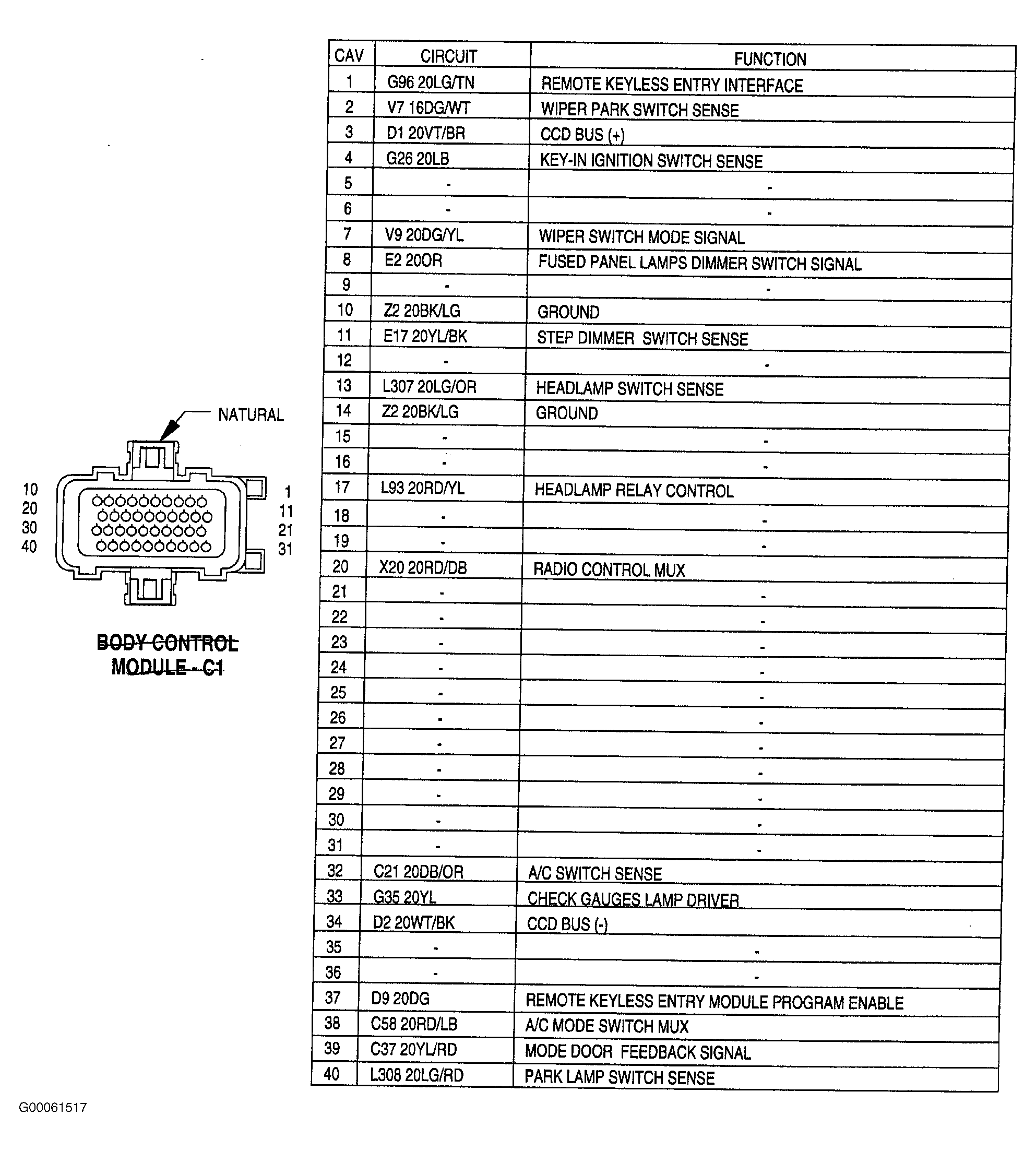

Fig 1: Body Control Module Connector Pin-Out (C1)

Courtesy of CHRYSLER CORP.

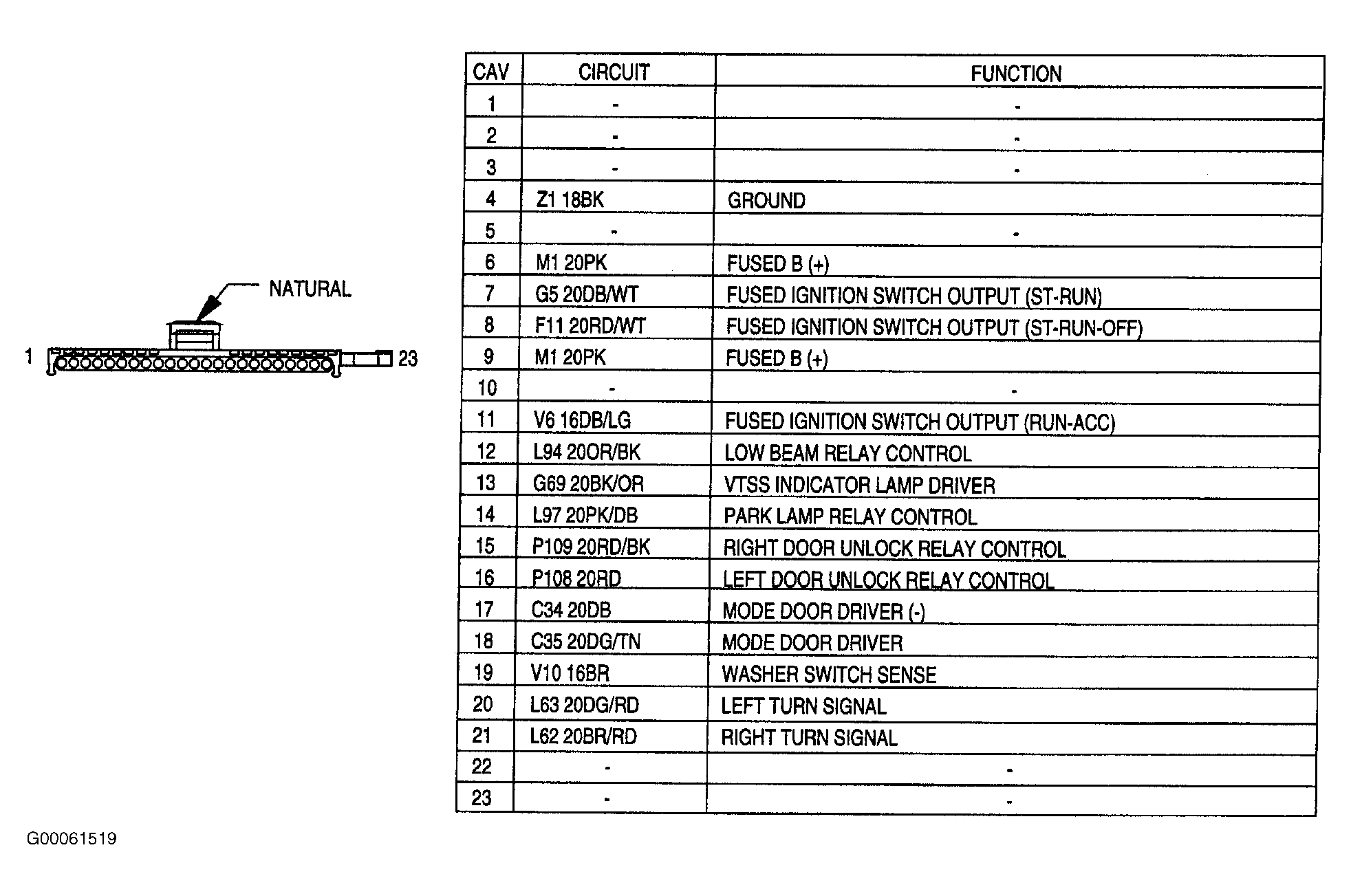

Fig 2: Body Control Module Connector Pin-Out (C2)

Courtesy of CHRYSLER CORP.

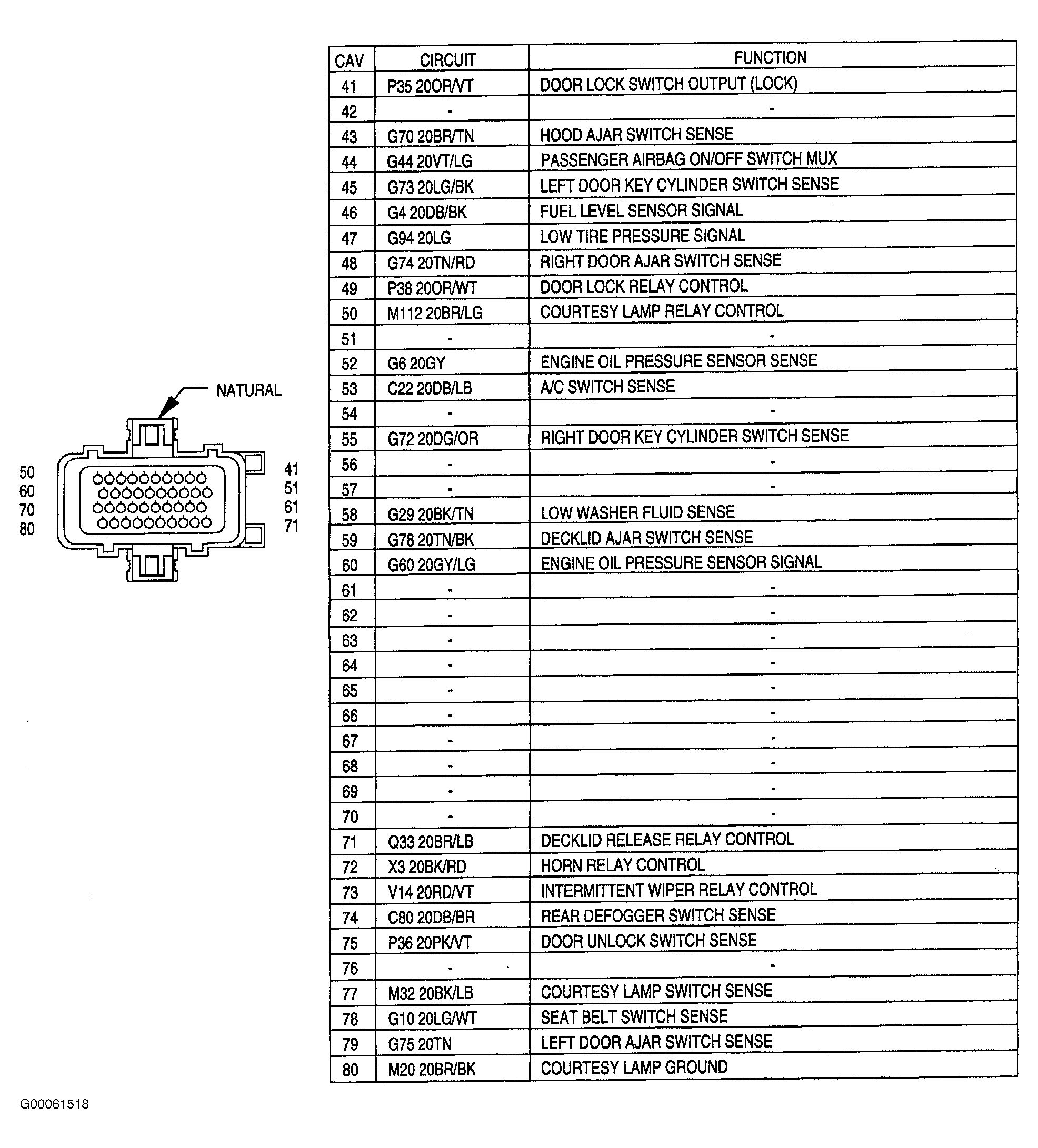

Fig 3: Body Control Module Connector Pin-Out (C3)

Courtesy of CHRYSLER CORP.
