NTC-8A Checking MAP Sensor Calibration
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
NTC-8A Checking MAP Sensor Calibration

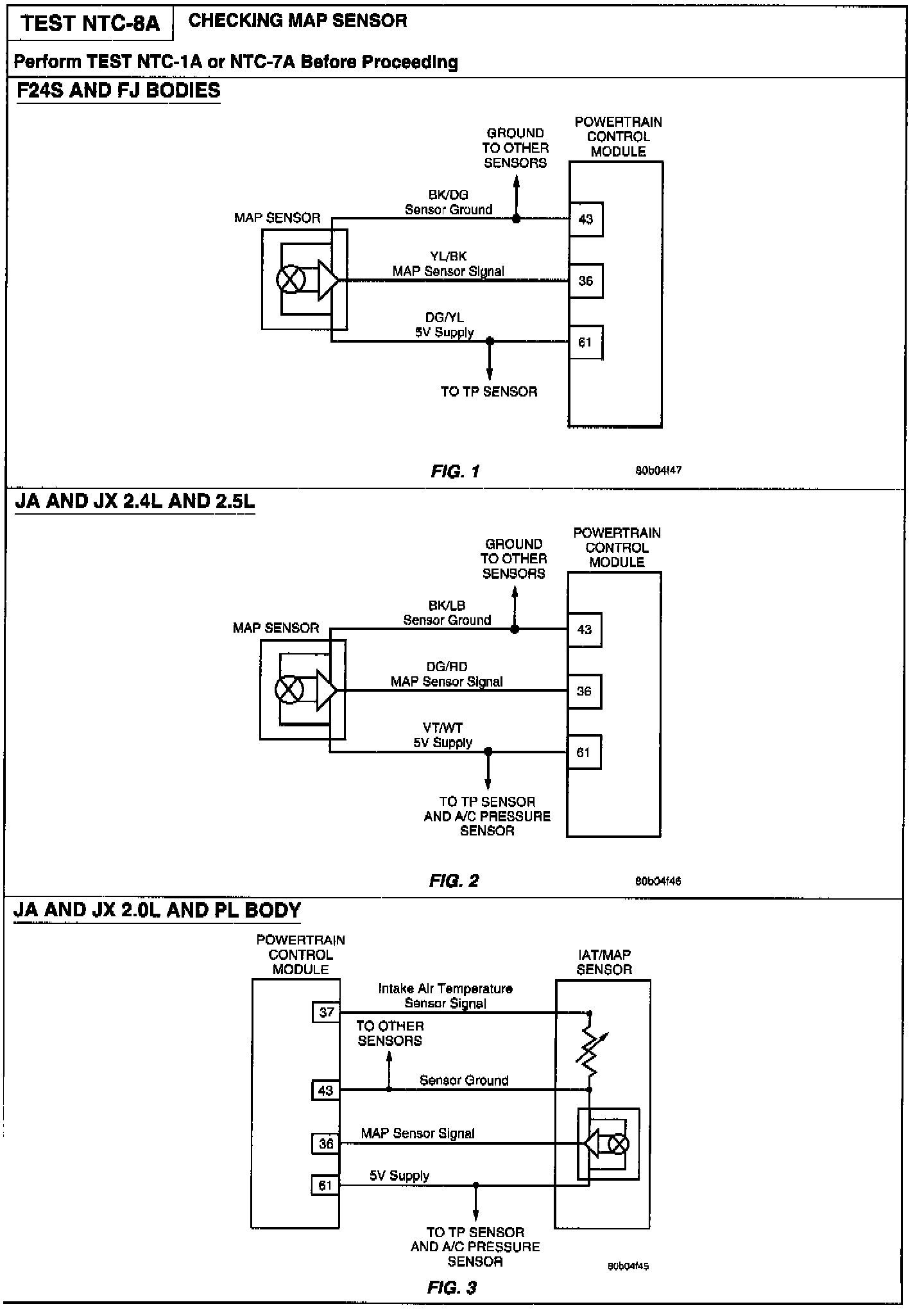

Related Image:

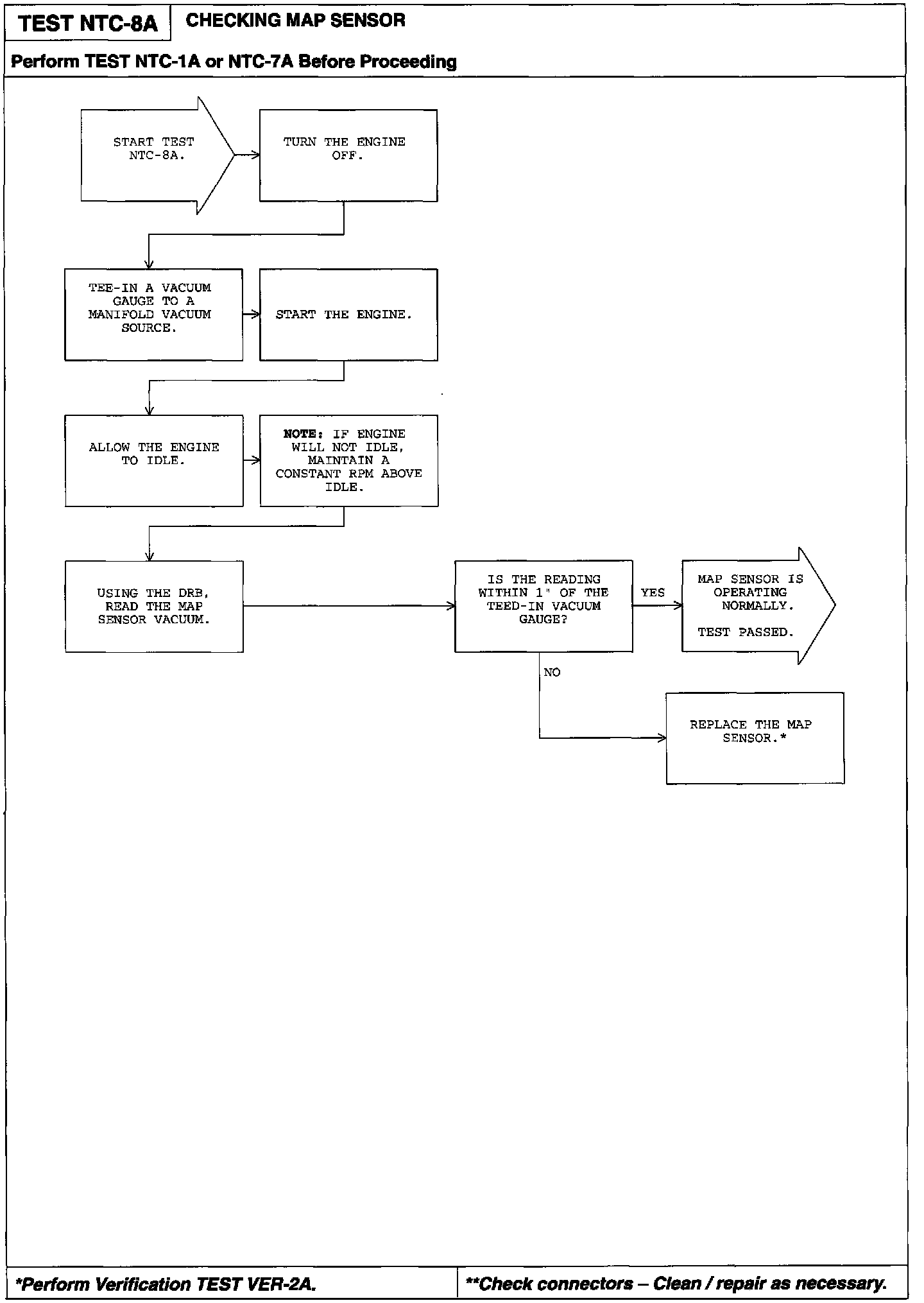

Diagnostic Chart:
