Pump/Motor Assembly

Pump/motor assembly on Bendix-4 ABS is part of modulator assembly and cannot be serviced separately. See MODULATOR ASSEMBLY  . See Fig 1 .

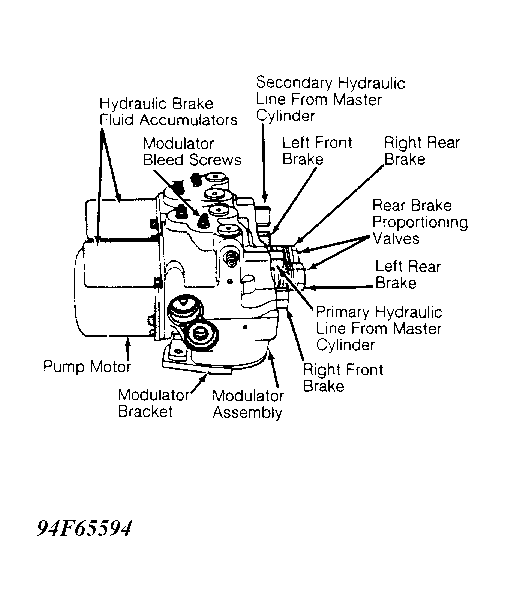

Fig 1: Identifying Modulator & Pump/Motor Assembly

Courtesy of CHRYSLER CORP.
